NGP 2014R Door Sweep, 1.25" Aluminum Casing with 1" Reinforced Neoprene Bulb Seal
NGP 2014R door sweep, with a 1.25" aluminum casing, is fitted with a 1" reinforced neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Casing comes with choice of finishes. Length is custom cut to size.
PRICED PER FOOT - See full product details and specs in the tabs below
NGP 2014R door sweep, with a 1.25" aluminum casing, is fitted with a 1" reinforced neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface.

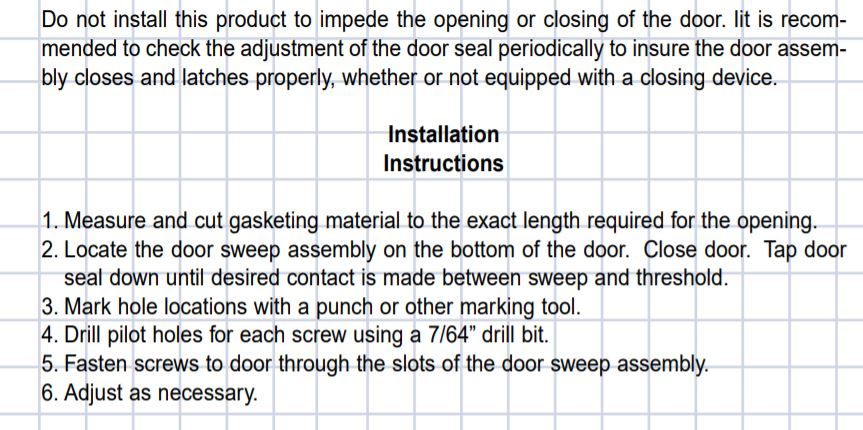

Installation: Installation Guide and #6 x 1" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

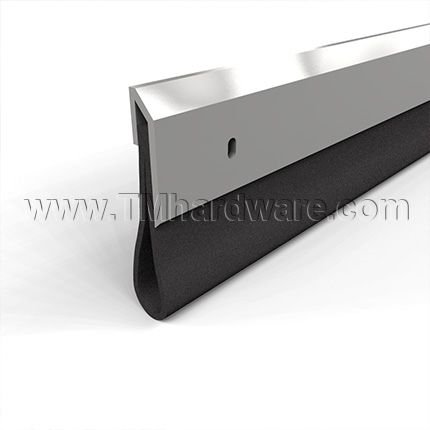

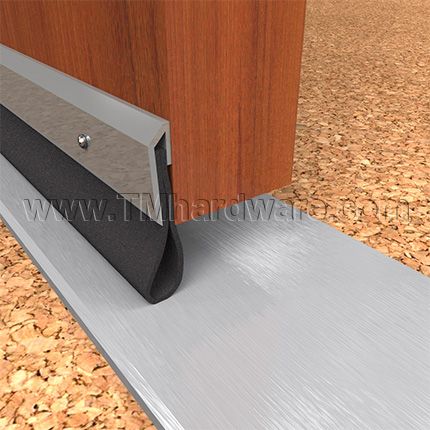

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
See also our NGP 200S Door Bottom, Aluminum, Bronze, or Stainless Steel Casing with .4375" Silicone Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN2014R
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range-20°F to 200°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeNeoprene Rubber Seal
-
MountingSurface Mounted
-
- Dimensions
-

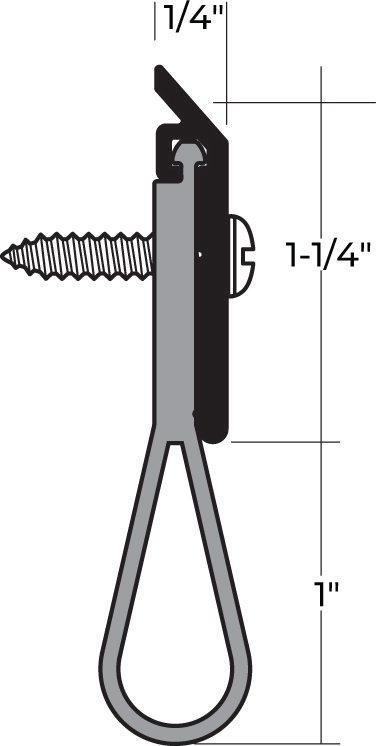

Seal Height1" Height
-
Total Height2-1/16" Height
-
LengthCustom Cut to Size
-
- Installation
-
Drill HolesDrill holes are provided
-
Installation Screws#6 x 1" stainless steel sheet metal screws provided
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsFire Rated, Smoke Rated, BHMA Certified, Air Infiltration Rated, UL Classified
-
Warranty3 Year Limited Warranty
-
