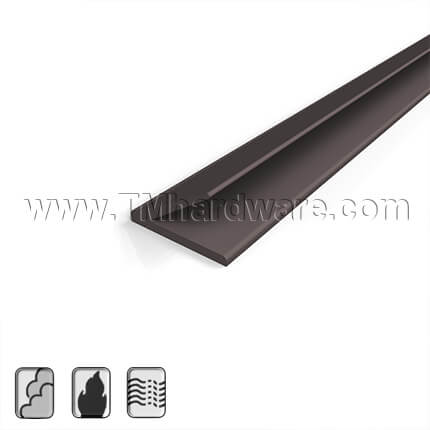

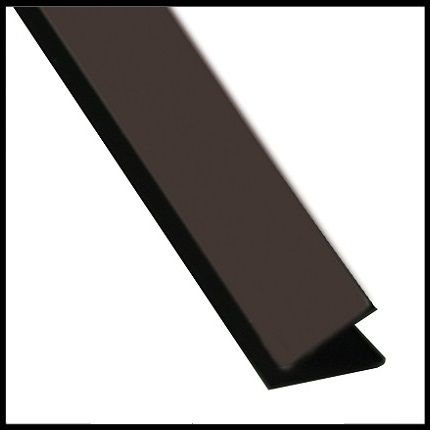

NGP 5040 Self-Adhesive Weatherstrip, .5" Wide Silicone Fin

NGP 5040 Self-Adhesive Weatherstrip, .5" Wide Silicone Fin
National Guard Products

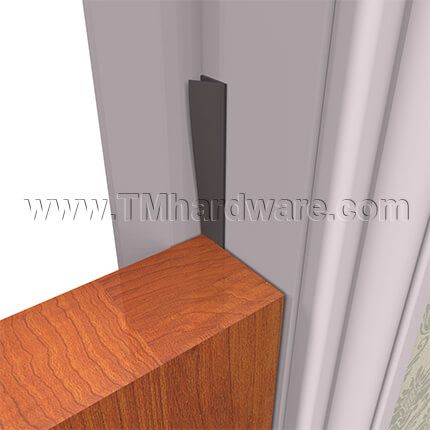

NGP 5040 Adhesive Weatherstrip Silicone Fin Seal can be installed onto the perimeter of a door frame to slow / prohibit the passage of smoke, fire, weather, sound and dirt. It is easily installed with a self-adhesive backing. Available in charcoal finish and in various sized coils.

Priced per coil  - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      NG5040C-17
    • Market price:$36.55
      • save 15%
    • Starting price: Price: $31.07 per item


    NGP 5040 Adhesive Weatherstrip, Silicone Fin Seal Key Features:

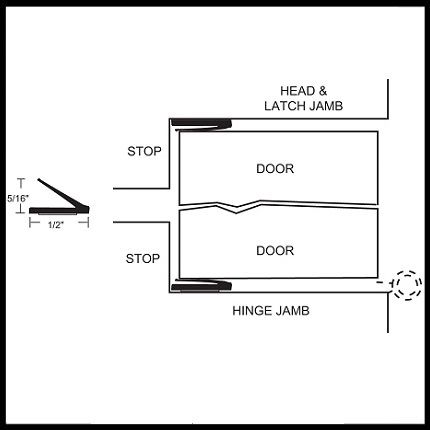

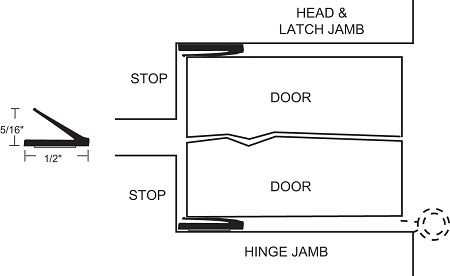

    Width: .5" (1/2")

    Finish: charcoal

    Height: .3125" (5/16")

    Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

    Seal Material: Silicone material is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals.

    Fin Design: The fin design ensures a low closing force it begins compressing at 5/16" up to 1/16" gap.

    Compliance Details: Smoke and draft control - category “H”, up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors; UL Listed; ANSI/BHMA Certified, Accoustical Tested; Positive Pressure Tested; Air Infiltration Rated.

    Temperature Range:

    • -100°F to 500°F, remains flexible at extreme temperatures
    • End use temperature range of adhesive, long term exposure -30°F up to 250°F

    Installation:

    • This gasket has a self-adhesive backing, for easy installation.
    • Recommended for areas using FM200 or Halon Fire Suppression Systems
    • Modified acrylic pressure sensitive adhesive protected by release liner
    • Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
    • Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
    • See Installation Guide tab for more info.

    This gasket has a limited shelf-life. Product must be used within 1 year of purchase.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For smaller gap weatherstripping, see our NGP 5060 Adhesive Weatherstrip, .5" Wide Silicone Single Angle 'T' Fin
