NGP 8134 Adjustable Threshold, Bulkhead, Aluminum, 1.5"

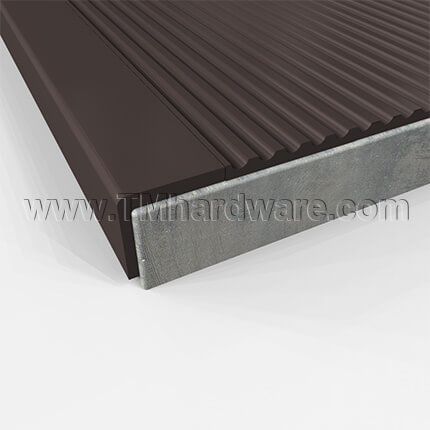

NGP Bulkhead component is made of high quality aluminum. It is made to go down a step that is 1.5" or more. The bulkhead threshold is designed to be used flush with tile or as part of a combination of products. Available in choice of finishes and length is custom cut to size.

See full product details and specs in the tabs below

PRICED PER FOOT

Please note: This product is part of the adjustable thresholds and is designed to be used in conjunction with a variety of pieces/parts. To view all other parts go to our NGP Adjustable Width Threshold System.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

NGP Adjustable Threshold Bulkhead Key Features:

Material: Aluminum alloy 6063, T5 temper

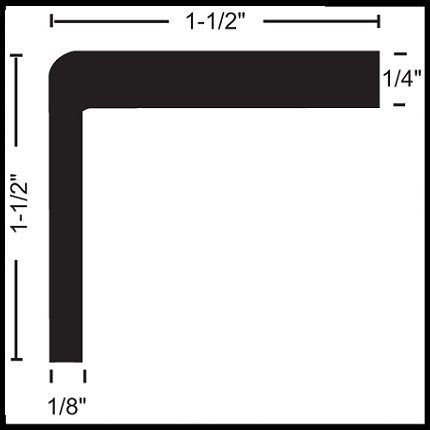

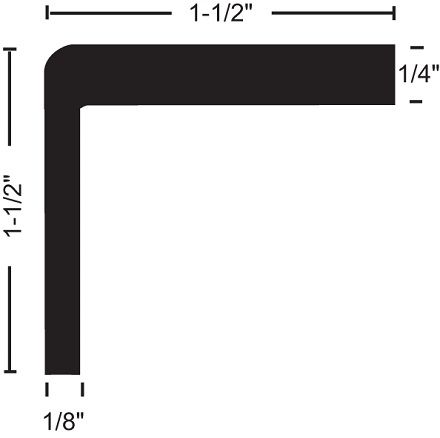

Height: 1.5" (1-1/2")

Width: 1.5" (1-1/2")

Length: Custom cut to size

Weight: .63 lbs/ft.

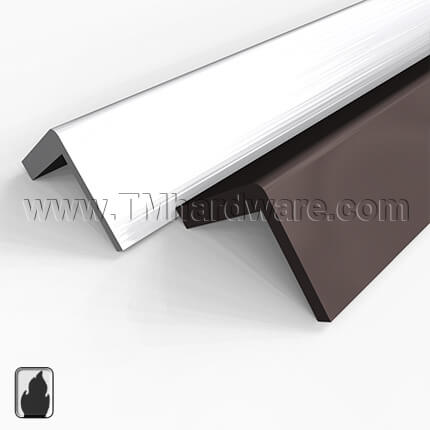

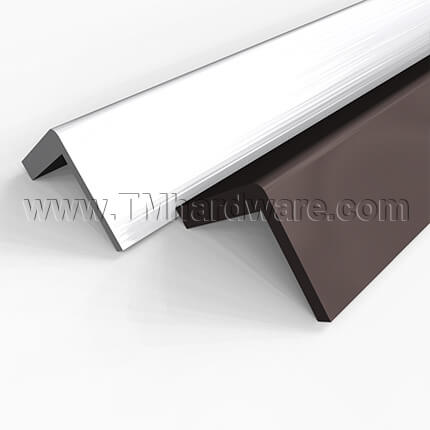

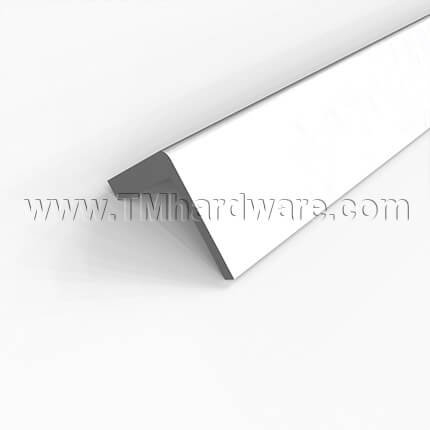

Finishes: Mill Aluminum, Dark Bronze Anodized

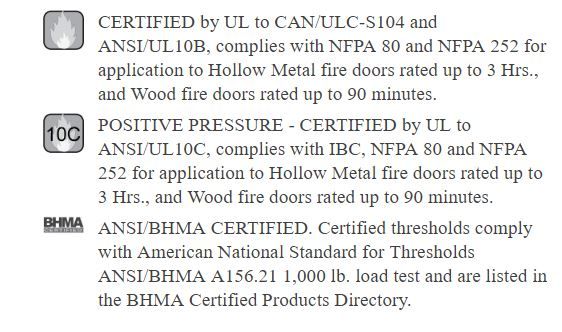

Compliance Details: UL Listed; Positive Pressure Certified; ANSI/BHMA Certified.

Installation: See installation guide in tabs below. Supplied undrilled unless a template is provided.

Option (Can be purchased through our office at 845-388-1300):

SIA- Slip Resistant Finish

Please Note: This product is a component of the NGP Adjustable Width Threshold System and can be used in conjunction with a variety of parts to create a custom width threshold system. Select link above to view all compatible system components.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

- SKU
  NG-8134
QuickShip
No
Manufacturer
National Guard Products
MPN
8134
Length
12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

Click to Print

Click to Print Installation Guide

Mill Finish Aluminum complies with ANSI/BHMA US27 / 627

SHIPPING / PROCESSING TIME:

This product ships directly from the manufacturer.

Please allow 2 - 3 weeks to ship

Exception: Bronze Anodized products require 4 - 5 weeks to ship

Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $300.00.
- Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
- Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
- Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
- Orders totals above $2,000.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
- CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
- Weatherstripping products will not be considered for returns.
- Item must be in new, resalable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
