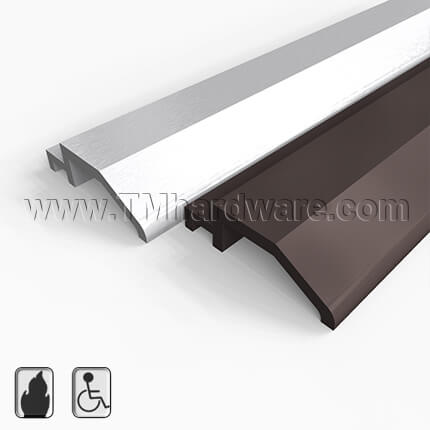

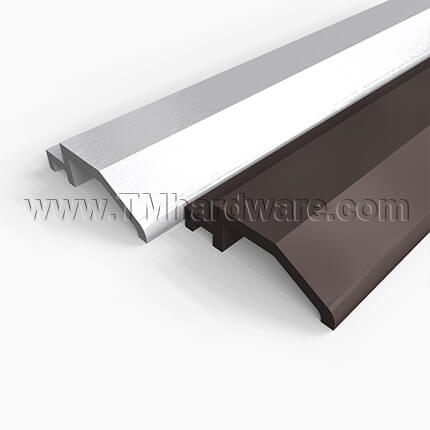

NGP 8140 Cover Plate Accessory, Aluminum or Brass Elevated Trim, .5" Height

This NGP Elevate Trim is designed to finish off and support cover plates with 1/4" height.  It has a total width of 1.75". Comes in choice of aluminum or brass finishes and length is custom cut to size.

See full product details and specs in the tabs below

PRICED PER FOOT

Please note: This product is part of the adjustable thresholds system and is designed to be used in conjunction with a variety of different pieces/parts of all different lengths. To view all other parts go to our Adjustable Width System page.

See tabs below for additional information
    • SKU
      NG-8140
    • Market price:$8.10
      • save 15%
    • Starting price: Price: $6.89 per foot


    NGP Cover Plate Accessory, Elevated Trim Key Features:

    Material: Aluminum alloy 6063, T5 temper; Alloy CDA 385 (Copper Alloy No. C38500)

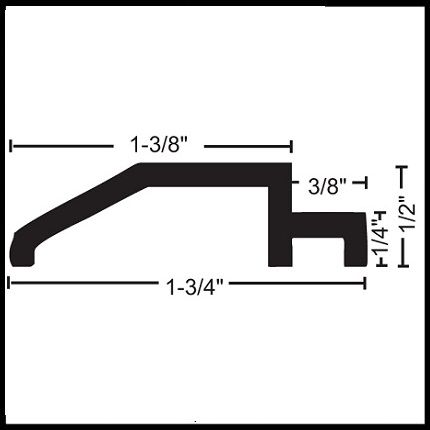

    Height: .5" (1/2")

    Width: 1.75" (1-3/4")

    Length: Custom cut to size

    Weight: .28 lbs/ft. for Aluminum and .82 lbs./ft. for Brass

    Finish: Mill Finish Aluminum, Dark Bronze Anodized, Satin Finish Bronze

    Compliance Details: ADA Compliant; UL Listed; Positive Pressure Certified; ANSI/BHMA Certified.

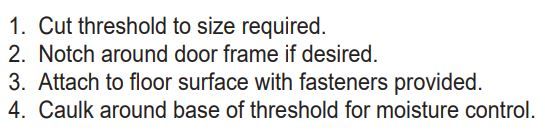

    Installation: Installation Guide provided. Supplied undrilled unless a template is provided.

    * This product is part of the adjustable thresholds system and is designed to be used in conjunction with a variety of different pieces/parts of all different lengths. To view all other parts go to our Adjustable Width System page.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For additional trims see our NGP 8141 Aluminum Elevated Trim, .75" Height

      • SKU
        NG-8140
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      8140
    • Length
      12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94"
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Finish

    The following finishes comply with ANSI/BHMA Codes:

    • Mill Finish Aluminum US27/627
    • Satin Finish Bronze US4/728
