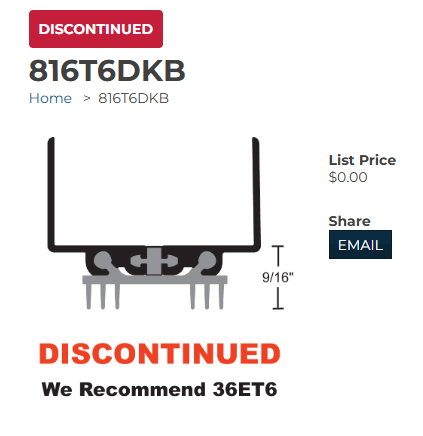

NGP 816T6 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break, and Two .5625" Thermoplastic Triple Fin Seals
NGP 816 Door Shoe combines a U Shaped Casing and Thermal Break to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .5625". It is air infiltration rated. Available with two thermoplastic triple fin seals, two aluminum finishes and length is custom cut to size.
PRICED PER FOOT- See product details and specs in the tabs below
NGP 816 Door Shoe combines a U Shaped Casing and Thermal Break to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .5625".
Seals: Contains two .5625" Thermoplastic Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.
Thermal Break: Thermal break door shoes feature a rigid PVC spline creating a separation to prevent the transfer of outside temperature and frost through the door shoe.
Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For Additional Door Shoes see our NGP 816 Door Shoe Sweep , U Shaped 1.75" Aluminum Casing with Thermal Break, .5" Vinyl Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN816T6
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range0°F thru 140°F
-
Door TypeWooden Door, Metal Door
-
MountingDoor Shoe Mount
-
- Dimensions
-
Seal Height9/16" Height
-
Total Height1-1/2" Height
-
Additional DimensionsDoor seal is 1-3/4" thick
-
LengthCustom Cut to Size
-
Door Thickness1-3/4" Thick
-
- Installation
-
Installation Screws#6 x 3/4" stainless steel SMS
-
- Finishes
-
FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsBHMA Certified, Air Infiltration Rated
-
Warranty3 Year Limited Warranty
-
