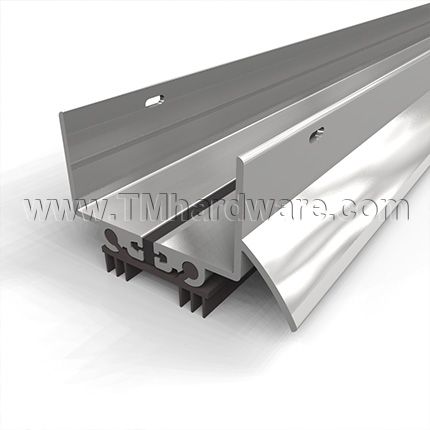

NGP 819T6 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, Two .5625" Thermoplastic Triple Fin Seals
NGP 819 Door Shoe combines a U Shaped Casing, Thermal Break, and Rain Drip to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .5625". It is air infiltration tested. Available with two thermoplastic triple fin seals, two aluminum finishes and length is custom cut to size.
PRICED PER FOOT- See product details and specs in the tabs below
NGP 819 Door Shoe combines a U Shaped Casing, Thermal Break, and Rain Drip to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .5625".
Seals: Contains two .5625" Dark Brown Triple Fin Seals. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

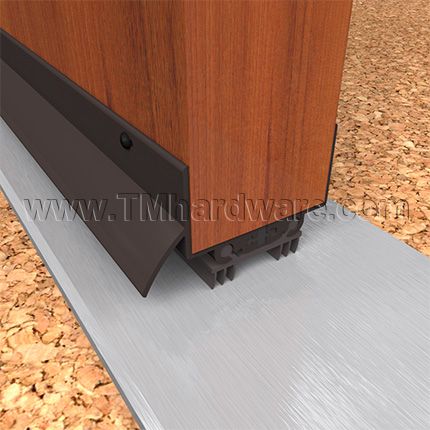

Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.
Thermal Break: Thermal break door shoes feature a rigid PVC spline creating a separation to prevent the transfer of outside temperature and frost through the door shoe.
Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional Door Shoes see our NGP 819 Door Shoe, U Shaped 1.75" Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal
-
QuickShipNo
-
ManufacturerNational Guard Products
-
MPN819T6
- About this Product
-
Door Shoe Retainer MaterialAluminum
-
Temperature Range0°F thru 140°F
-
Door TypeWooden Door, Metal Door
-
Seal TypeThermoplastic
-
MountingDoor Shoe Mount
-

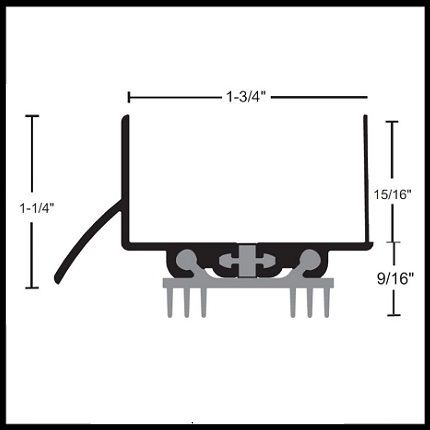

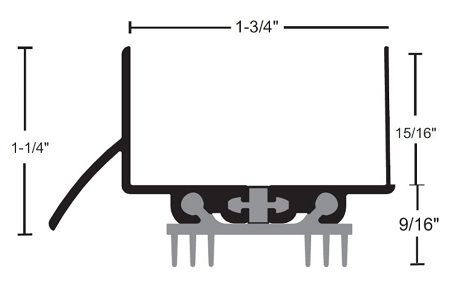

- Dimensions
-
Seal Height9/16" Height
-
Total Height1-1/2" Height
-
Additional DimensionsDoor seal is 1-3/4" thick
-
LengthCustom Cut to Size
-
Door Thickness1-3/4" Thick
-
- Installation
-
Installation Screws6 x 3/4" stainless steel SMS screws provided
-
- Special Features
-
Rain Drip CapYes
-
- Finishes
-

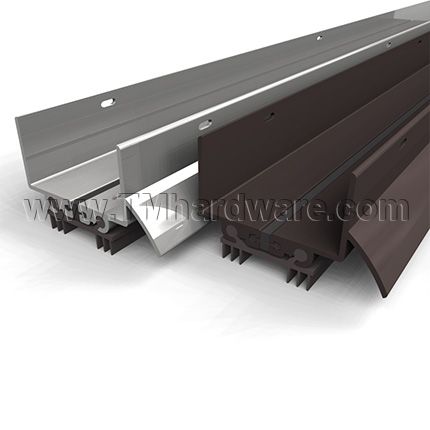

FinishClear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated
-
Warranty3 Year Limited Warranty
-
