NGP 819 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal

NGP 819 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal

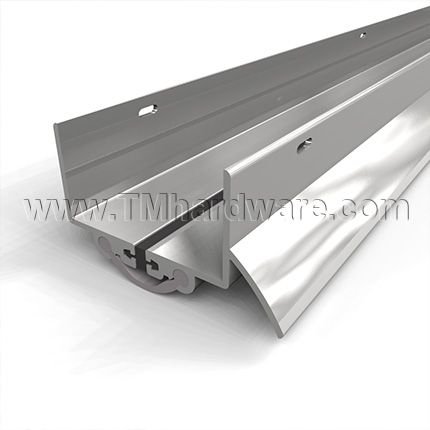

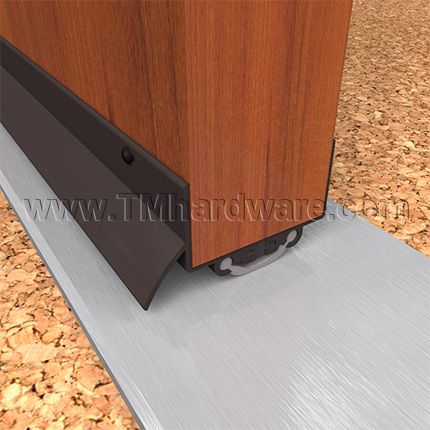

Product specs of NGP 819V Door Shoe with Rain Drip NGP 819 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal NGP 819 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal in Anodized Aluminum NGP 819 Door Shoe Sweep , U Shaped Aluminum Casing with Thermal Break and Rain Drip, .5" Vinyl Seal in DKB Finish applied to bottom of door
0.0

NGP 819 Door Shoe combines a U Shaped Casing, Thermal Break, and Rain Drip to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” doors and fills gaps of .5". It is air infiltration tested. Available with a vinyl seal, two aluminum finishes and length is custom cut to size.

PRICED PER FOOT- See product details and specs in the tabs below

Price: $10.60
Finish
Length (Inches)
Qty
Save to wishlist
Made in USA
SKU N819VA
Shipping See Shipping Tab Below
Description

NGP 819 Door Shoe, U Shaped Aluminum Casing with Thermal Break and Rain Drip Key Features:

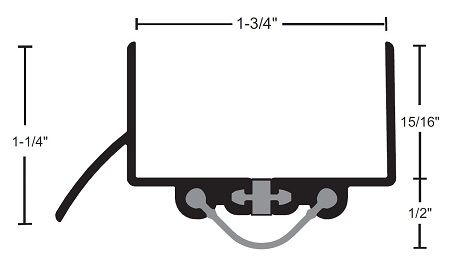

Dimensions: Casing has a height of .9375". Length is custom cut to size.

Door Compatibility: Wood or Metal Doors, 1.75" Thick

Seals: Contains a .5" Gray Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Rain Drip Design: The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door and preventing seepage.

Effective Temperature Range: 0°F thru 140°F

Thermal Break: Thermal break door shoes feature a rigid PVC spline creating a separation to prevent the transfer of outside temperature and frost through the door shoe.

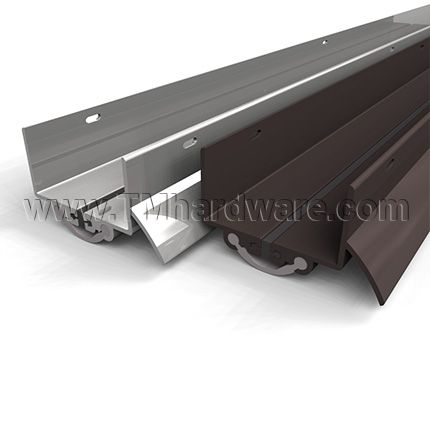

Available Finishes: Anodized Aluminum, Dark Bronze Aluminum

Compliance Details: Air Infiltration Tested.

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 819 Door Shoe, U Shaped Aluminum Casing with Thermal Break and Rain Drip, .75" Neoprene Seal

Product Specs
Compliance Details
  • Anodized Aluminum complies with ANSI/BHMA Codes US28 / 628

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
