NGP G610 Door Sweep and Perimeter Gasket, 1.375" Aluminum Casing with 1.75" Nylon Brush

NGP G610 Door Sweep and Perimeter Gasket, 1.375" Aluminum Casing with 1.75" Nylon Brush

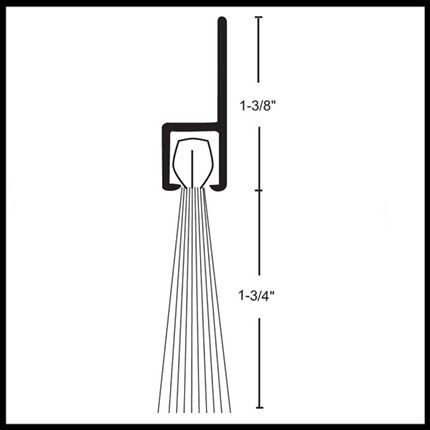

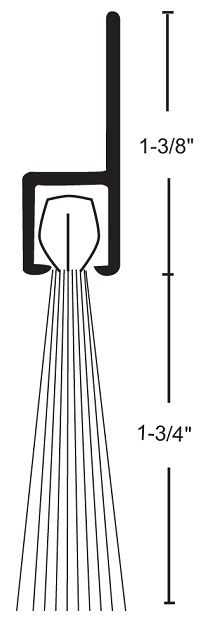

Product Specs of G610 Door Bottom Sweep and Weatherstripping Actual Image of NGP Door Bottom Sweep Clear Anodized Door Bottom Dark Bronze Anodized Door Bottom Gold Anodized Door Bottom
0.0

Click here for our TMH QuickShip Door Bottom, 1.375" Casing, 1.75" Brush. Stock Sizes - 36" and 60" in Dark Bronze Anodized are available to ship within 1 business day.

NGP #G610 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.375" H, while brush portion has a height of 1.75". Available in 3 anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

Price: $14.60
Finish
Size (Inches)
Mounting
Qty
Save to wishlist
Bestseller
Made in USA
SKU NG610A
Shipping See Shipping Tab Below
Description

Click here for our TMH QuickShip Door Bottom, 1.375" Casing, 1.75" Brush. Stock Sizes - 36" and 60" in Dark Bronze Anodized are available to ship within 1 business day.

NGP #G610 Door Sweep Key Features:

Casing Height: 1-3/8" (1.375" ) H

Brush Height: 1-3/4" (1.75")

Total Height: 3-1/8" (3.125")

Retainer Material: Aluminum alloy 6063, T5 temper

Brush Material: Nylon Brush

Temperature Range: -70°F to 425°F

Mounting Options: select from options above

  • Screws Only: Screw holes are slotted for easy adjustment once installed
  • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Finishes: Clear Anodized Aluminum (Gray Brush), Dark Bronze Aluminum (Black Brush), Gold Aluminum (Black Brush)

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Compliance Details: Fire and smoke rated, see compliance details tab for more details

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a larger seal, see our NGP 612 Door Bottom Sweep with 2.5" Nylon Brush Seal.

Installation Instructions
Compliance Details
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
  • REACH and RoHS compliant
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 7-14 business days to ship
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
