NGP D608 Door Sweep and Perimeter Gasket, 1.06" Aluminum Casing with 1" Nylon Brush

NGP D608 Door Sweep and Perimeter Gasket, 1.06" Aluminum Casing with 1" Nylon Brush
National Guard Products

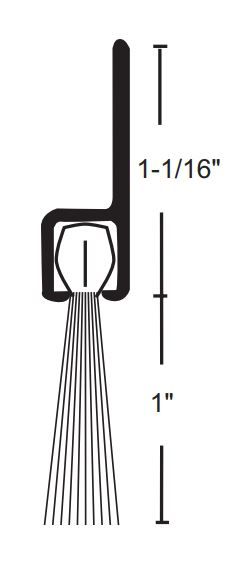

NGP #D608 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1-1/16" H, while brush portion has a height of 1". Available in various anodized finishes and is custom cut to size.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information
    • SKU
      NGD608A
    • Market price:$19.40
      • save 15%
    • Starting price: Price: $16.50 per foot


    NGP #D608 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities.

    Mounting Options:

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For a larger seal, see our NGP 610 Door Sweep with 1" Nylon Brush Seal.

      • SKU
        NGD608A
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      D608, 608, 18100
    • Mounting
      Screws, Adhesive + Screws
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -70°F to 425°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Nylon Brush Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        1" Height
      • Total Height
        2-1/16" Height
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 3/4" stainless steel sheet metal screws provided
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Dark Bronze Finish
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, UL Classified
      • Warranty
        3 Year Limited Warranty
    • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
    • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
    • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
    • REACH and RoHS compliant
