Pemko #305 Door Gasket, Aluminum or Bronze with Choice of Seals

Pemko #305 Door Gasket, Aluminum or Bronze with Choice of Seals
Product Specs of Door Gasket Seal #305R Door Gasket with choice of seals Bronze Mill Finish with Rubber Seal Perimeter Gasketing for improved Door Seal Clear Anodized Aluminum with Rubber Seal Perimeter Gasketing for improved Door Seal Dark Bronze Anodized with Rubber Seal Perimeter Gasketing for improved Door Seal Gold Anodized Aluminum with Rubber Seal Perimeter Gasketing for improved Door Seal

This Door gaskets seals gaps of up to .25” along the header and jambs of the door, halting the transfer of temperatures between rooms and reducing the passage of undesirable sounds, light, drafts, insects and dirt. This aluminum or bronze door gasket comes with either a sponge EPDM or sponge silicone seal. It is built to last, and is fire, smoke, and air infiltration rated. Custom cut to size.


Market price: $4.08
save 15%
Price: $3.47
Size (Inches)
Save to wishlist
Options Sponge EPDM Seal, Sponge Silicone Seal
Shipping See Shipping Tab Below

Improving the seal around the header and jambs of active doors with a durable gasketing can reduce energy waste and save money on utility bills. A good seal also keeps out unwanted sound, dirt, insects, and light. Designed with your safety in mind, this door gasket is rated for excellence in halting fire, smoke, and air- infiltration.

Key Features Of This Product:

Ratings: This  door gasket is fire, smoke, and air- infiltration rated.

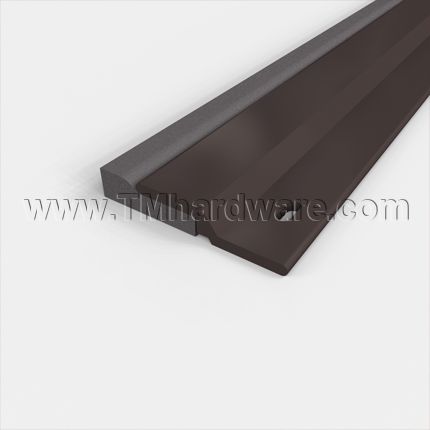

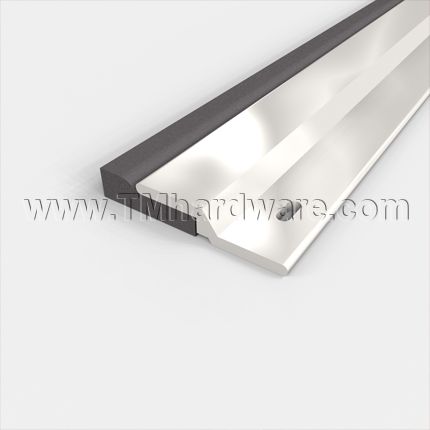

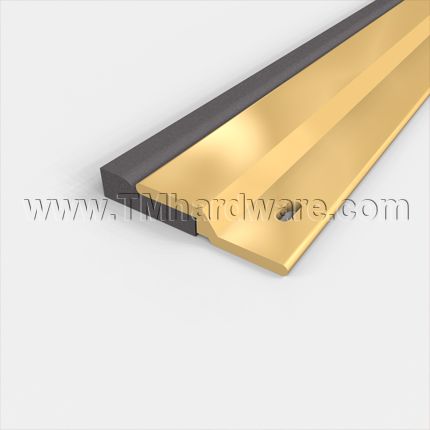

Casing Material: Has a strong, surface mounted, durable casing. Available in Bronze Mill Finish, Clear Anodized Aluminum, Dark Bronze Anodized Aluminum, Gold Anodized Aluminum.

Seals:  Available with a sponge EPDM or a sponge silicone seal. The firm seal  presses against the door when closed to completely seal the gap, which improves energy efficiency and halts infiltration of outside elements.

Sponge EPDM is comparable to Sponge Neoprene, though it is more Eco Friendly and has better performance in many areas. Specifically, it has great sound control properties, is solvent resistant, and has outstanding heat and weather resistance.

Sponge Silicone Rubber has inherent resistance to harsh environments and temperatures. It does not become brittle and hard in the cold or very soft in the heat. This material has excellent resistance to sunlight, weather, ozone, oxidization, and water and to flame.

For more information on rubber seals, please see our Understanding Rubber Seals page.

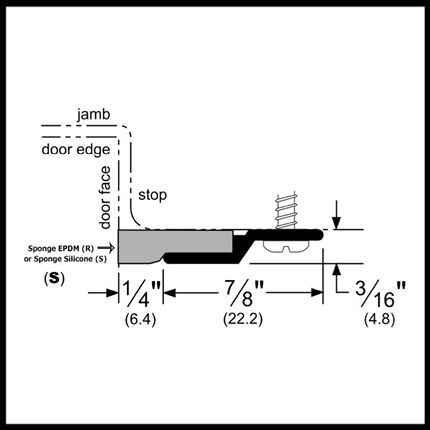

Dimensions: Metal casing measures .875” in length and the seal extends .25” past the casing. Gasket can seal very slight gaps of .0625” or gaps as wide as .25”.

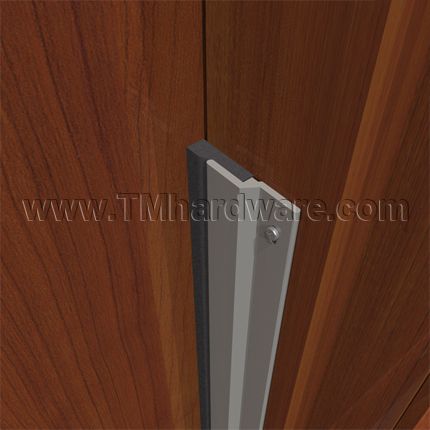

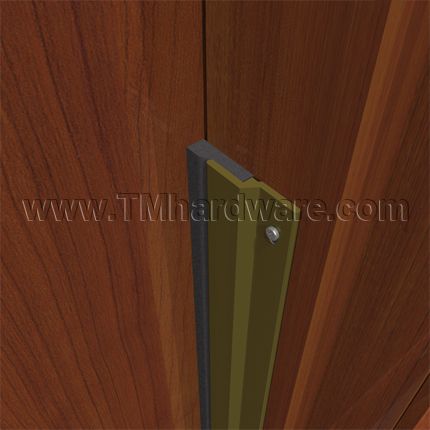

Easy Installation: Door Gasket is installed on the face of both doors.

  • Fire, smoke, and air- infiltration rated
  • Seals gaps of up to .25”
  • Strong, durable Aluminum or Bronze casing
  • Choice of Sponge EPDM or Sponge Silicone Seals

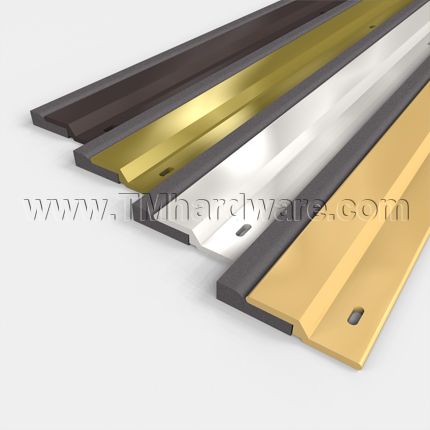

  • Available in bronze and four anodized aluminum color variations.

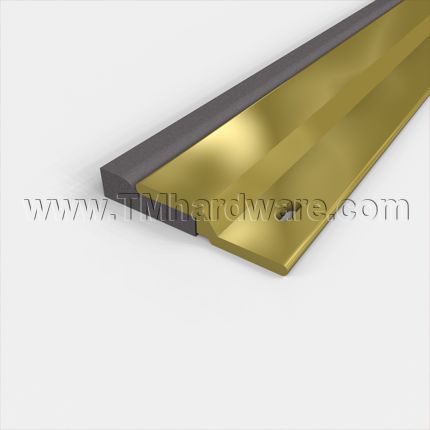

A Note on Finishes: Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Zero's anodized products are anodized to 204 (dipped four times)!


Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing. Screw holes are slotted to allow for adjustments while installing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.

Click here to view our Full Warranty Policy.

To Door gasket with a bulb seal, please check out our Door Gasket, Aluminum or Bronze with Neoprene Bulb and Finger Seal

Product Specs

Click to Print


P305 Product Specs:

Door Gasket, Aluminum or Bronze with Choice of Seals


Click to Print

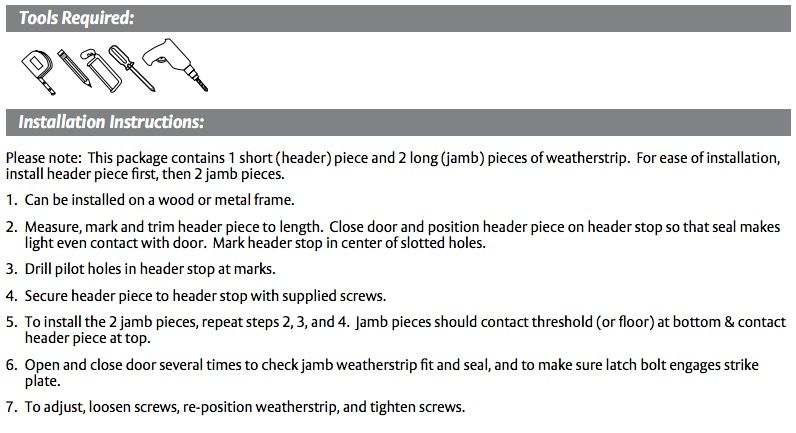

P305 Installation Guide:

Door Gasket, Aluminum or Bronze with Choice of Seals

Compliance Details

Click to View Ratings Explained

Door Gasket, Aluminum or Bronze with Choice of Seals


Finishes Comply with the Following ANSI / BHMA Codes:

  • Clear Anodized Aluminum - US28 / 628
  • Dark Bronze Anodized Aluminum - US10B / 710
  • Gold Anodized Aluminum - US4 / 688
  • Bronze Mill Finish (Brass) - US4 / 720
