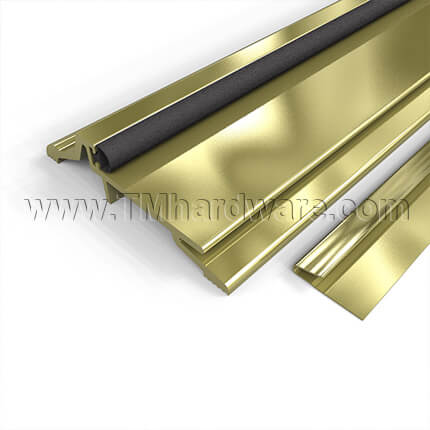

NGP 895BR Interlocking Threshold, 3.5" Brass with Seal and Latching Panic Exit, .5" Height

NGP Brass Interlocking Latching Panic Exit Threshold Key Features:

Material: Alloy CDA 385 (Copper Alloy No. C38500)

Width: 3.5" (3-1/2")

Height Clearance: .5" (1/2")

Total Height: .875" (7/8")

Length: Custom cut to size.

Weight: 2.06 lbs/ft.

Typical Wall Thickness: .100"

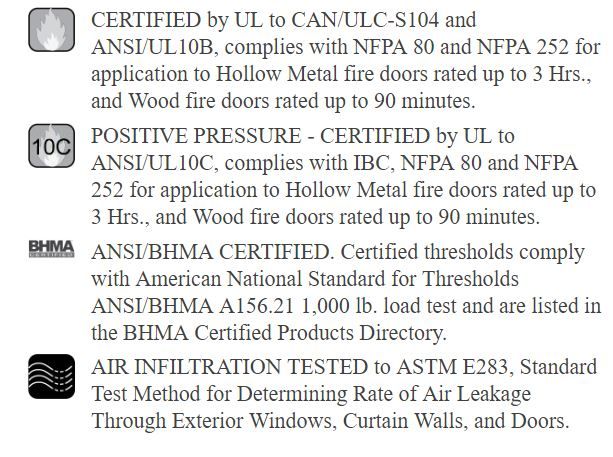

Compliance Details: UL Listed, Positive Pressure Certified, ANSI/BHMA Certified, Air Infiltration Tested.

Seal: Black NGP-TPV, Black Silicone, Gray Pile, Gray Vinyl

Door: for out-swing doors.

Interlocking: This product needs to be installed in conjunction with a J Interlocking Hook which is provided. The J Hook will interlock with the threshold when the door is closed, preventing infiltration of air, wind, and water.

Installation:

• Bronze Hook supplied, comes furnished with #18 x 7/8" nails. This is installed on the rabbeted underside of a door.
• #10 X 1-1/2" brass wood screws included.

Options (Can be purchased through our office at 845-388-1300):

• SIA - Slip Resistant Finish
• Polished (721) Finish
• Dark Oxidized Oil Rubbed (722) Finish

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional interlocking thresholds, see our NGP 80B Interlocking Accessory, J Hook
