Pemko #159 Interlocking Threshold, 3.625" Aluminum or Bronze with Seal and Latching Panic Exit, .5" H

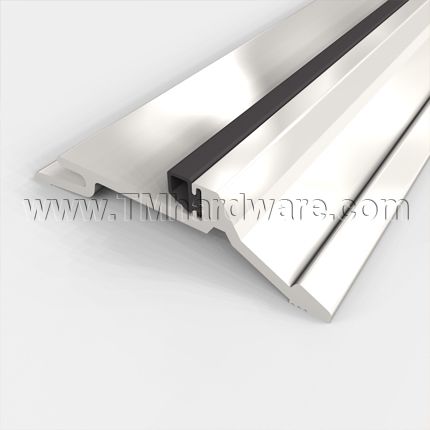

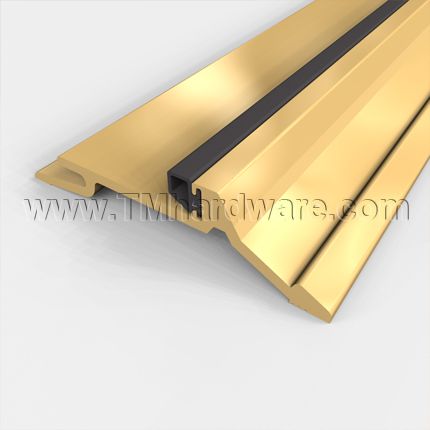

Pemko 159 Aluminum Interlocking Threshold with Vinyl Seal
Pemko Manufacturing

This Interlocking Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and a door bumper with a double seal at the bottom of the doors. It has a 5" width and a height clearance of .375". Available with thermo, vinyl, or brush seal and has an interlocking design for extra protection. Aluminum or bronze variations available and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information
    • SKU
      PK159AV
    • Market price:$41.02
      • save 10%
    • Starting price: Price: $36.92 per foot

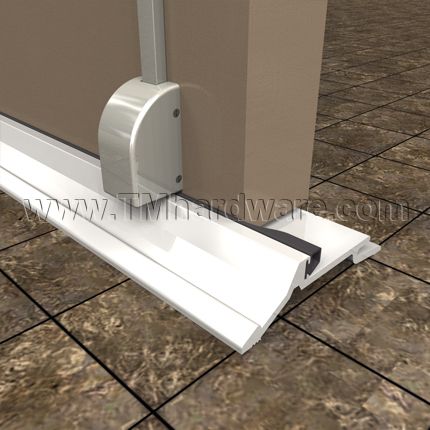

    Threshold design is compatible with a surface applied vertical rod exit device. Additionally, the threshold has an interlocking design.

    Available Seals: It can be purchased with either a thermo, vinyl, and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating, creating a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperatures and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

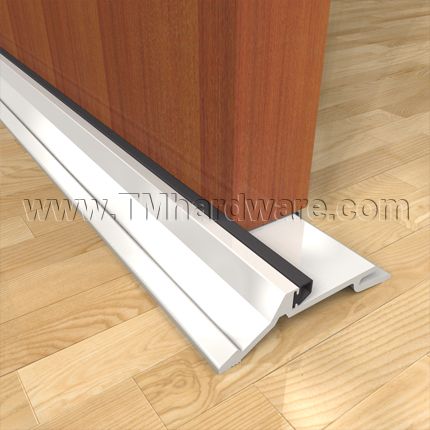

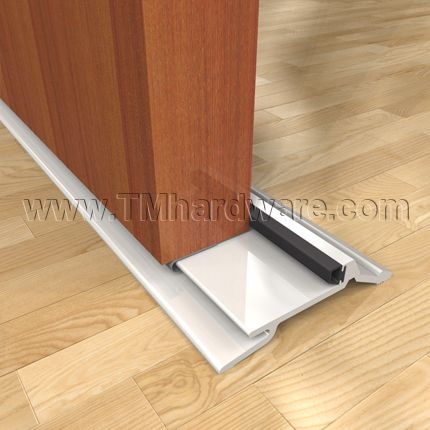

    Interlocking Feature: Saddle has an interlocking feature, which ensures draft and dust protection on both sides of the door. It interlocks with a 'J Hook' (provided) which is applied to a rabbet under the door. Can be applied with or without the interlocking J Hook.

    Finishes: Available in various different finishes; choose from dropdown options above (Oil rubbed bronze can also be purchased through our office for an additional 40% of standard bronze pricing)

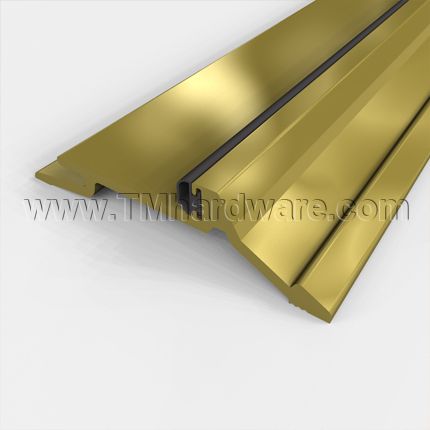

    A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, that increases longevity and aesthetics, thus the large difference in price. It gets darker in color with time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance.

    Compliance Details: See the Product Data tab to the right

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with the saddle. If the threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    See our 5" Aluminum or Bronze with Rubber or Pile Seal Latching Panic Exit Threshold for a wider threshold.

      • SKU
        PK159AV
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      159T, 159V, 159P
    • Dimensions
      • Overall Height
        .875" Height
      • Interior Height
        .5" Height
      • Overall Width
        3.625" Width
      • Threshold Length
        Custom Cut to Size
    • Product Design
      • Flat Saddle Design
        Smooth Top Design
      • Threshold Type
        Latching Panic Exit Threshold
      • Seal Type
        Vinyl Seal, Thermo Seal, Pile Brush Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), Bronze Mill Finish (Brass)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Sound Rated
      • Warranty
        5 Year Limited Warranty

    Click to Print

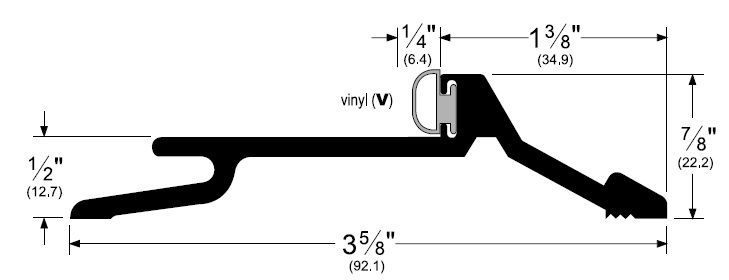

    P159 Product Specs:



    Threshold requires door clearance of .5625" (9/16")

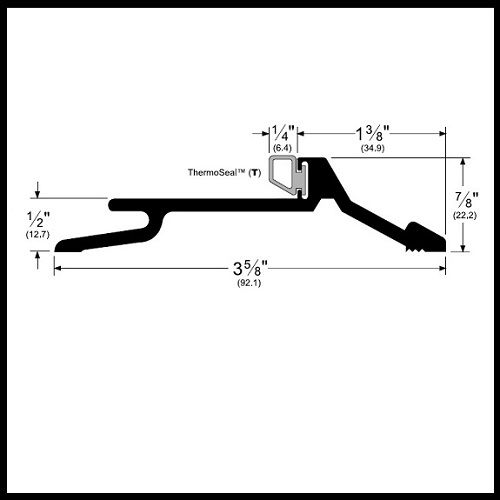

    Thermo Seal:

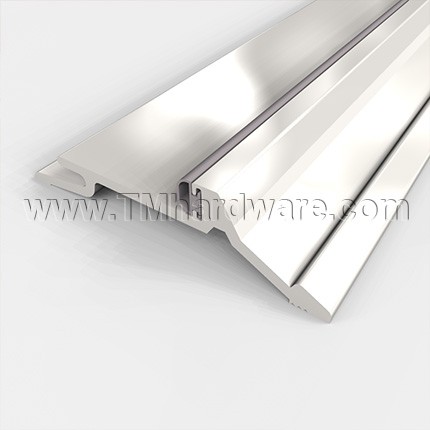

    Vinyl Seal:

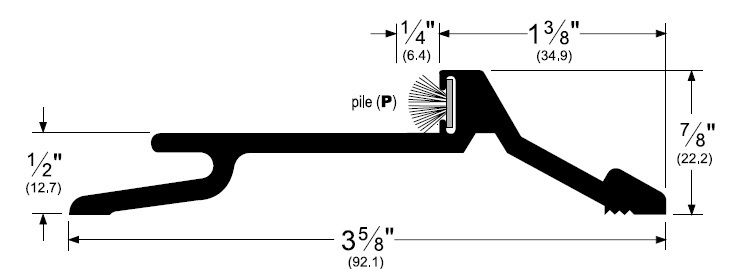

    Pile Brush Seal:

    J-Hook (Provided):

    Click to Print



    P159 Installation Guide:
