NGP 9500 Adhesive Weatherstrip with 1.5625" PVC and Intumescent Seal

NGP 9500 Adhesive Weatherstrip with 1.5625" PVC and Intumescent Seal
National Guard Products

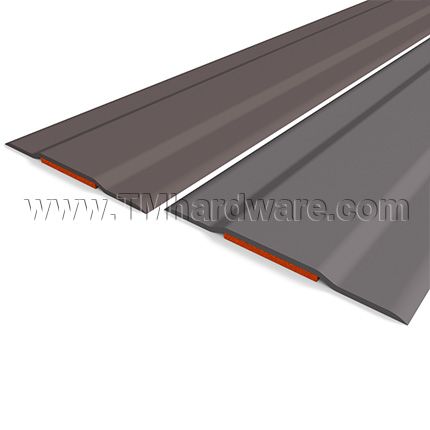

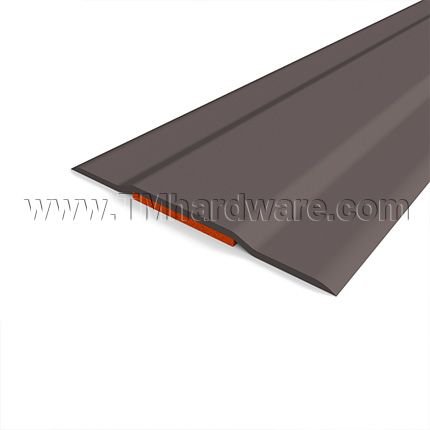

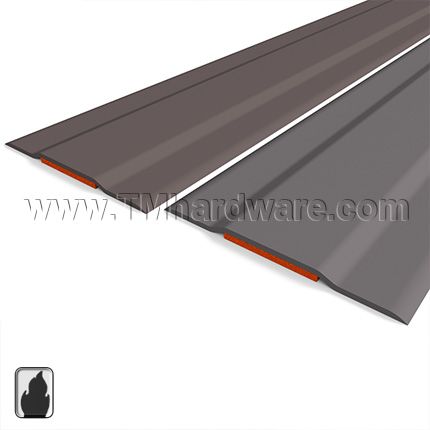

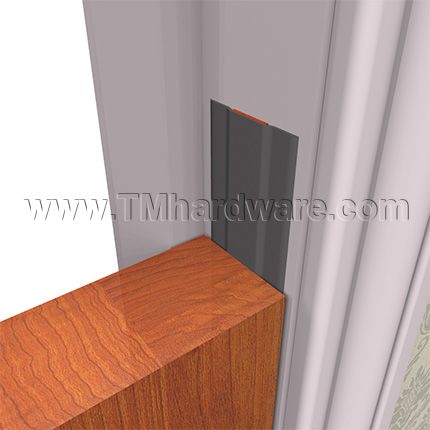

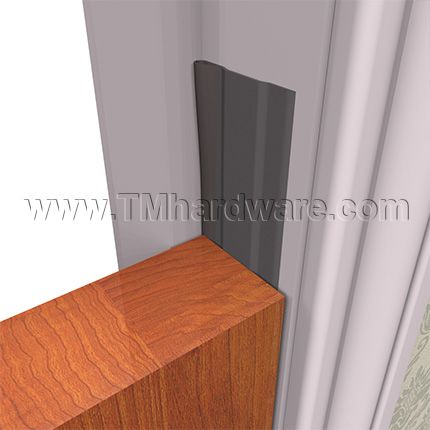

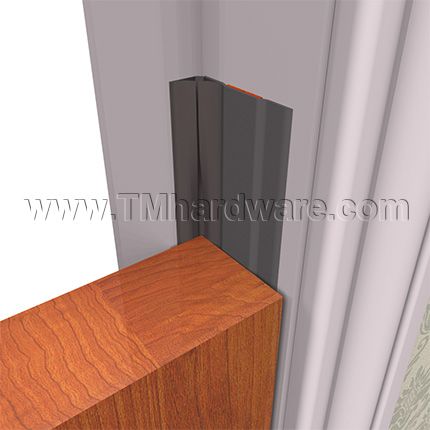

NGP 9500 self-adhesive intumescent weatherstrip / perimeter gasket is a convenient way to seal the perimeter of your door frame and create an airtight space. Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire. It requires a clearance of 1/8" between the door and the frame. It is 1.5625" wide and comes in choice of lengths. Available with 2 seals and choice of colors.

SOLD PER ITEM - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG9500DKB36
    • Market price:$23.55
      • save 15%
    • Starting price: Price: $20.02 per item


    NGP 9500 Adhesive Intumescent Weatherstrip Key Features:

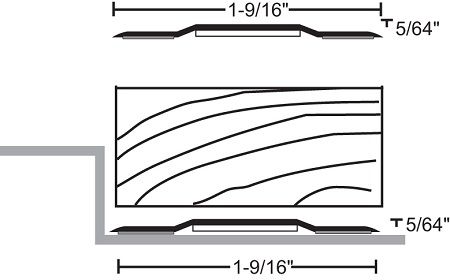

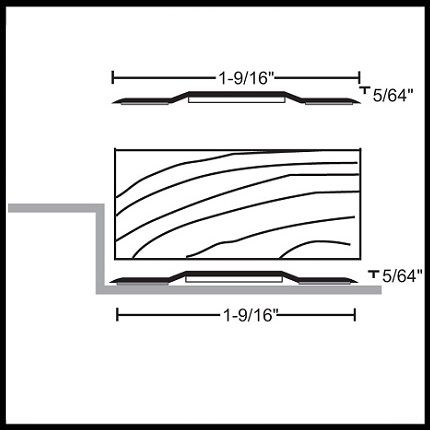

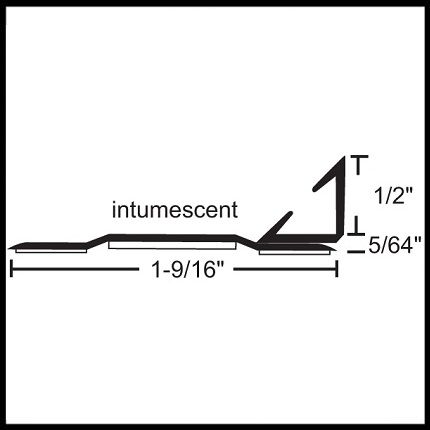

    Width: 1.5625" (1-9/16")

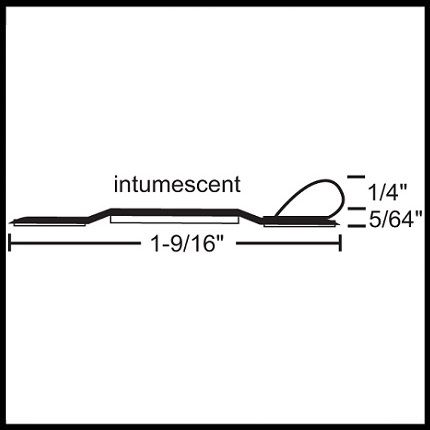

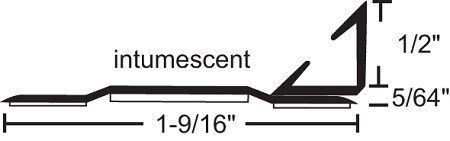

    Height: .07" (5/64"), Silicone Bulb is .25" (1/4"), TPE Batwing is .5" (1/2).

    Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

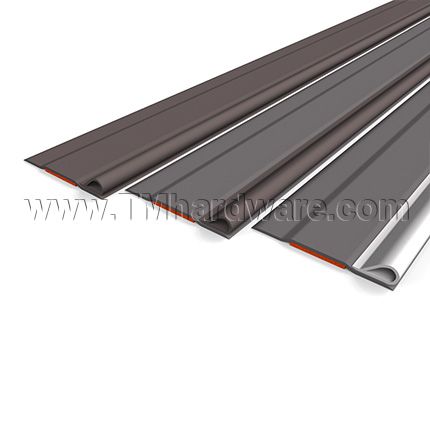

    Color: Brown, Gray, White

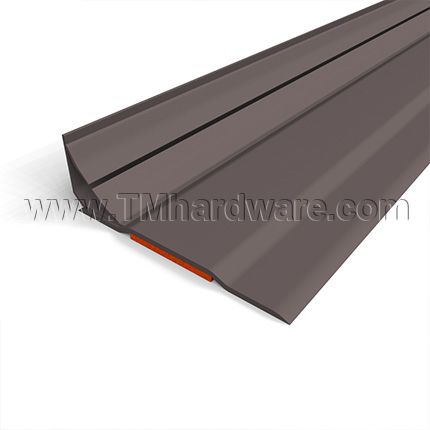

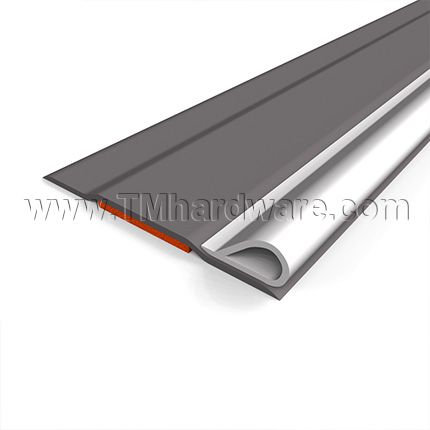

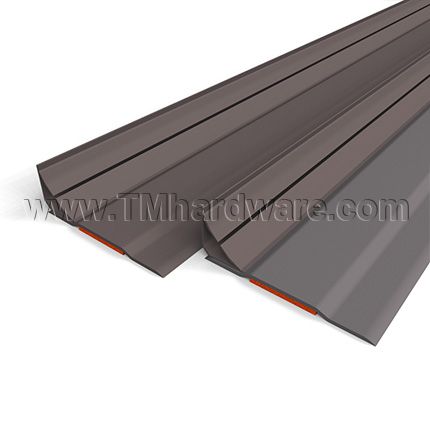

    Seal Material: Intumescent with PVC cover. Material is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals. Also available with additional silicone bulb seal or TPE batwing seal, select from the options above.

    Intumescent: NGP Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire.

    Compliance Details: REACH and RoHS compliant; NGP-Edge® Sealing System/Smoke and Draft Control Gasketing Category “G” and “H” Classified; ANSI/BHMA Certified; 20, 45, 60, 90 minute rated category B wood doors up to: single swing 4'0 x 9'0, perimeter application, pairs 8'0 x 9'0, perimeter/meeting edge; Positive Pressure Tested; Anti-Microbial.

    Temperature Range:

    • -60°F to 275°F
    • End use temperature range of adhesive, long term exposure -30°F up to 250°F

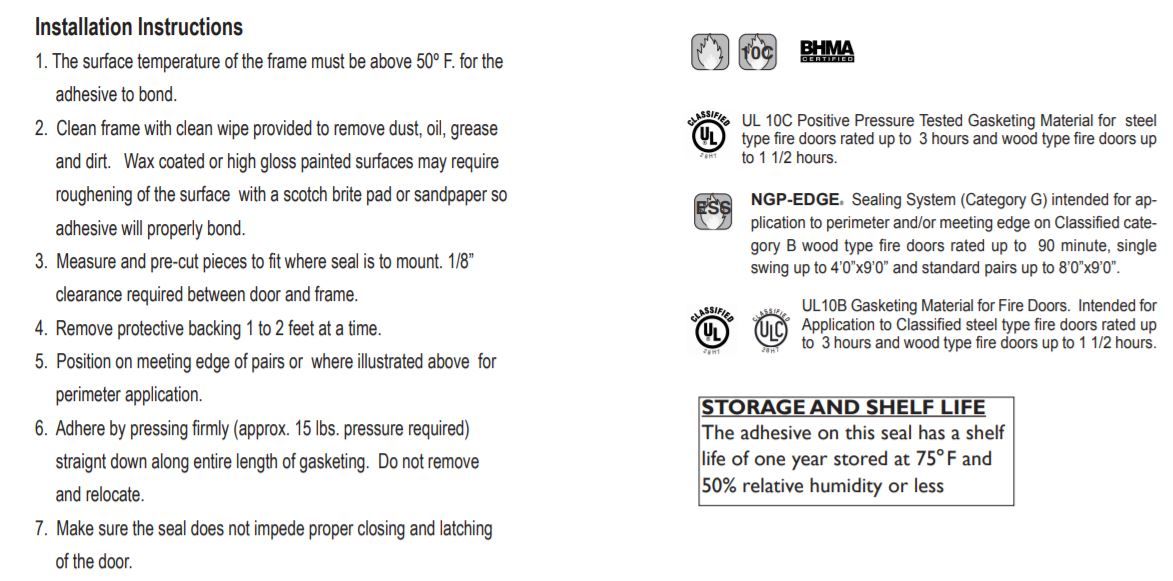

    Installation:

    • This gasket has a self-adhesive backing, for easy installation.
    • Modified acrylic pressure sensitive adhesive protected by release liner
    • Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
    • Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
    • See Installation Guide tab for more info.

    This gasket has a limited shelf-life. Product must be used within 1 year of purchase.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For additional weatherstripping, see our NGP 9800 Adhesive Intumescent Fire Seal with Protective Skin, .5" Wide Strip

      • SKU
        NG9500DKB36
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      9500
    • Length
      36", 48", 84", 94"
    • Seal
      Not Required, Silicone Bulb Seal, TPE Batwing Seal
    • Finishes
      • Finish
        Brown, Gray, Gray x Brown, Gray x White, Brown
