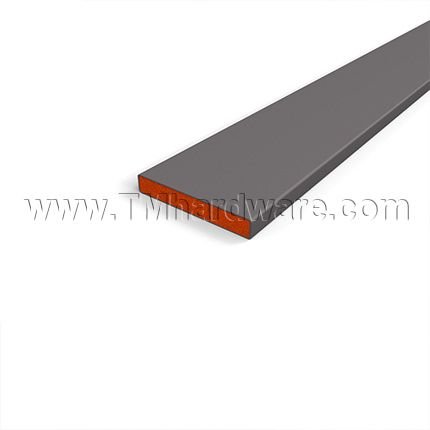

NGP 9800 Adhesive Intumescent Fire Seal with Protective Skin, .5" Wide Strip
NGP 9800 self-adhesive intumescent fire seal is a convenient way to seal the perimeter of your door frame and create an airtight space. Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire. It is a .5" wide strip and comes in choice of lengths. Available in three colors.
SOLD PER ITEM - See full product details and specs in the tabs below
NGP 9800 Adhesive Intumescent fire seal with Protective Skin Key Features:

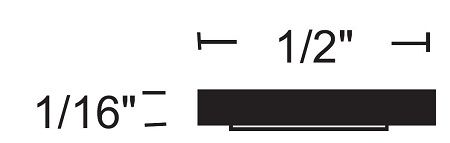

Width: .5" (1/2")
Height: .0625" (1/16")
Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

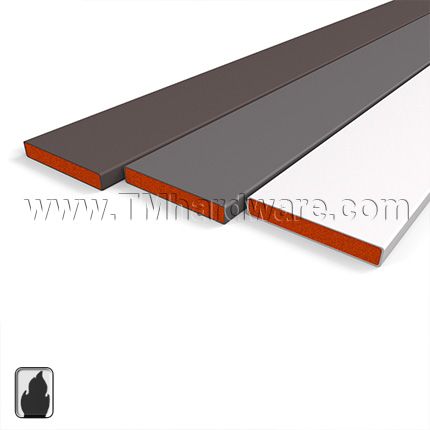

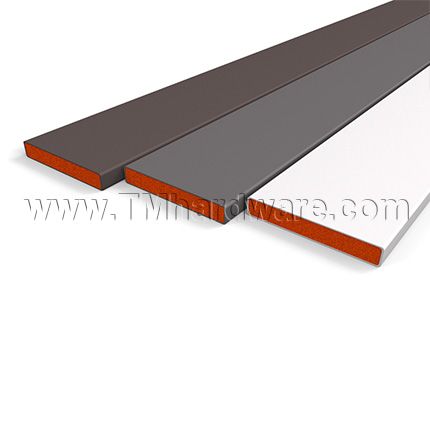

Color: Brown, Charcoal, White
Intumescent: NGP Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire.
Compliance Details: REACH and RoHS compliant; NGP-Edge® Sealing System/Smoke and Draft Control Gasketing Category “G” Classified; ANSI/BHMA Certified; Perimeter Application: 20, 45, 60, 90 minute rated category B wood doors up to: single swing 4'0 x 9'0, pairs 8'0 x 9'0; Meeting Edge Application up to 8'0" x 9'0" pairs of category B wood doors: 20 minute rated with single strip installed. 45, 60 minute rated with two strips installed; Positive Pressure Tested; Anti-Microbial.
Temperature Range:
- -60°F to 275°F
- End use temperature range of adhesive, long term exposure -30°F up to 250°F
Installation:
- This gasket has a self-adhesive backing, for easy installation.
- Modified acrylic pressure sensitive adhesive protected by release liner
- Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
- Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
- See Installation Guide tab for more info.
This gasket has a limited shelf-life. Product must be used within 1 year of purchase.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For additional weatherstripping, see our NGP 9450 Adhesive Weatherstrip with Intumescent TPE Fin Seal
