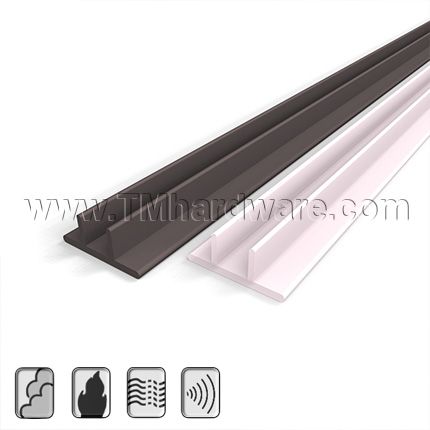

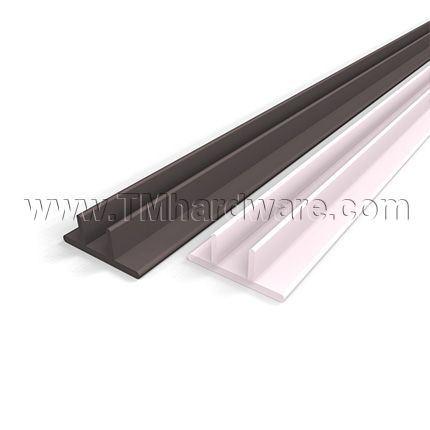

NGP 5070 Adhesive Weatherstrip, .5" Wide TPE Double Shark Fin Seal

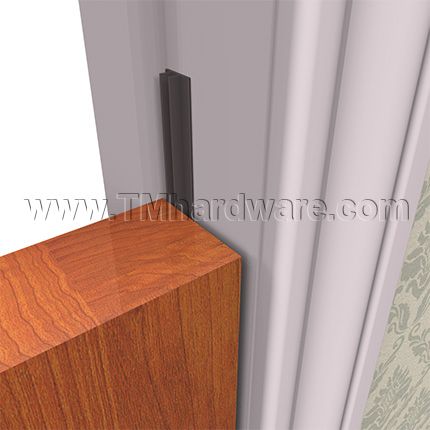

NGP 5070 Adhesive Weatherstrip TPE Double Shark Fin Seal can be installed onto the perimeter of a door frame to slow / prohibit the passage of smoke, fire, weather, sound and dirt. Available in 2 colors and in various sized coils.

Priced per item - See full product details and specs in the tabs below.

See tabs below for additional information

Quantity

Add to compare

NGP 5070 Adhesive Weatherstrip, TPE Double Shark Fin Seal Key Features:

Width: .5" (1/2")

Height: .1875" (3/16")

Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

Seal Material: TPE material is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals.

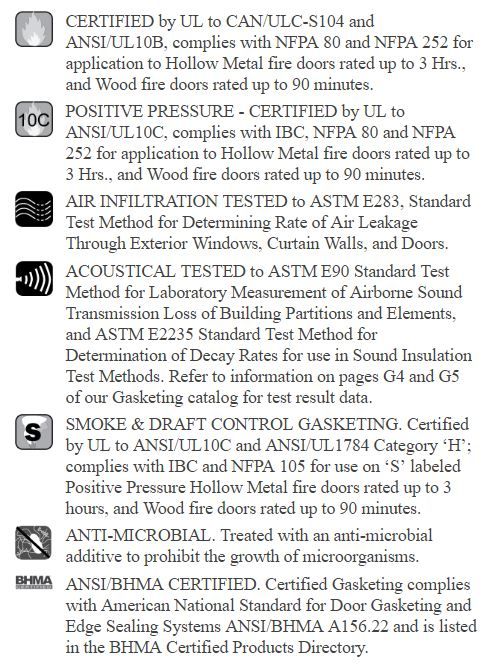

Compliance Details: REACH and RoHS compliant, Smoke and draft control; UL Certified; ANSI/BHMA Certified; Positive Pressure Tested; Air Infiltration Rated; Anti-Microbial (Clear seals are not anti-microbial).

Temperature Range:

-60°F to 275°F
End use temperature range of adhesive, long term exposure -30°F up to 250°F

Installation:

This gasket has a self-adhesive backing, for easy installation.
Modified acrylic pressure sensitive adhesive protected by release liner
Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less

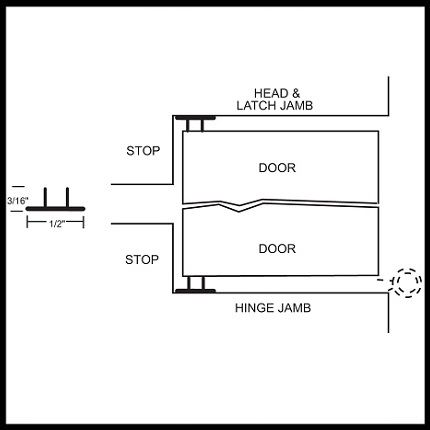

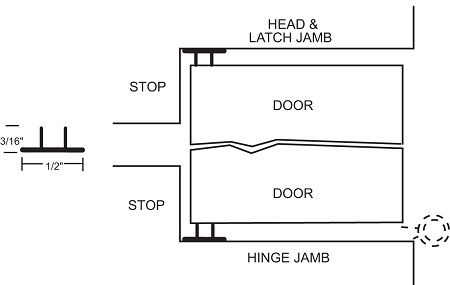

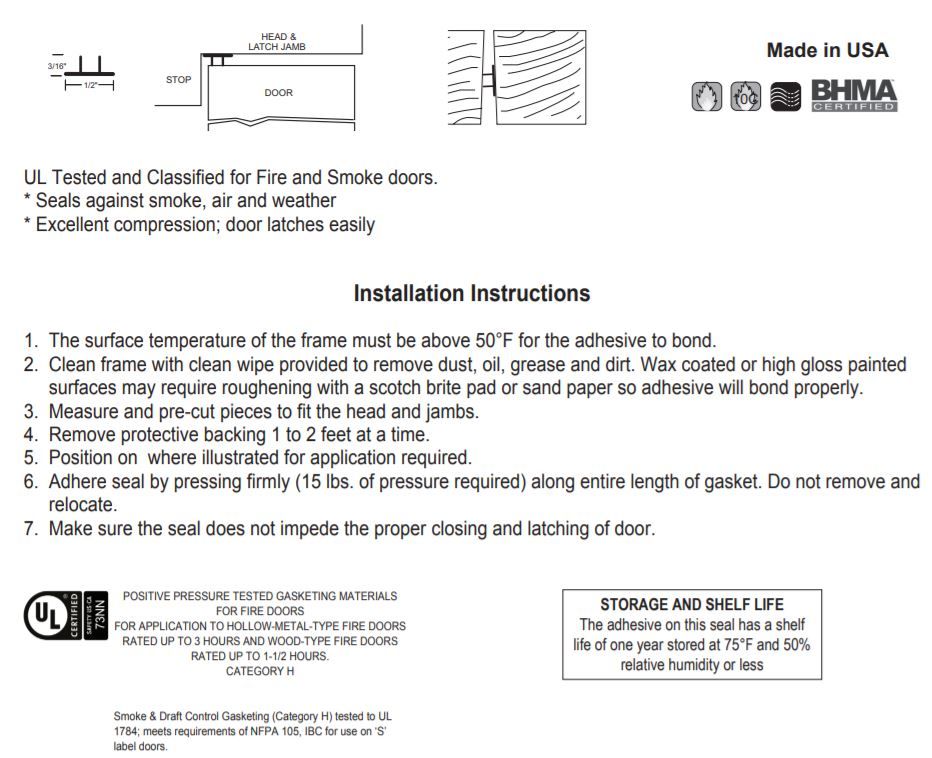

See Installation Guide tab for more info.

This gasket has a limited shelf-life. Product must be used within 1 year of purchase.

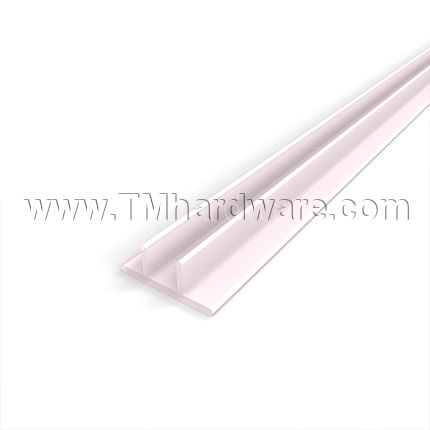

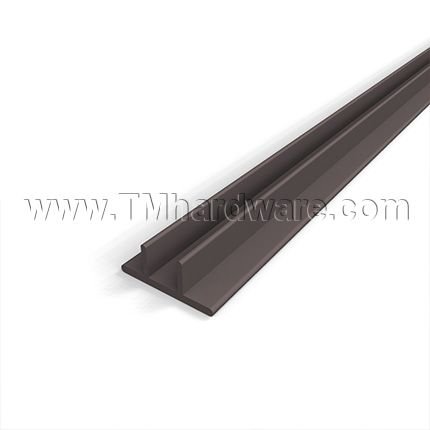

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For smaller gap weatherstripping, see our NGP 5050 Adhesive Weatherstrip, .5" Wide Anti-Ligature Silicone Bulb

- SKU
  NG5070B3
QuickShip
No
Manufacturer
National Guard Products
MPN
5070
Length
36", 48", 72", 84", 94"
Finishes
- Finish
  Brown, Clear

Click to Print

Click to Print Installation Guide

REACH and RoHS compliant
