NGP 9750 Adhesive Weatherstrip with .5" Wide TPE and Intumescent Bulb Seal

NGP 9750 Adhesive Weatherstrip with .5" Wide TPE and Intumescent Bulb Seal
National Guard Products

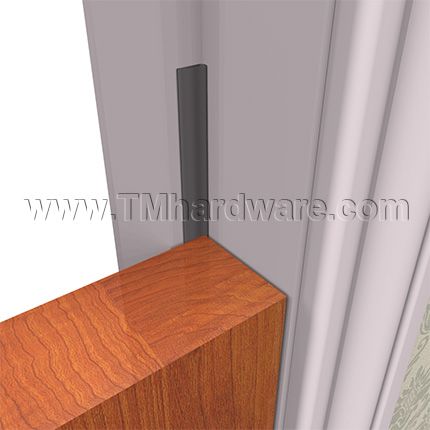

NGP 9750 self-adhesive intumescent TPE weatherstrip is a convenient way to seal the perimeter of your door frame and create an airtight space. Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire. It requires a clearance of 1/8" between the door and the frame. It is .5" wide and comes in choice of lengths. Available in charcoal color.

SOLD PER ITEM - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG9750C-3
    • Market price:$21.00
      • save 10%
    • Starting price: Price: $18.90 per item


    NGP 9750 Adhesive Intumescent Weatherstrip, TPE Bulb Seal Key Features:

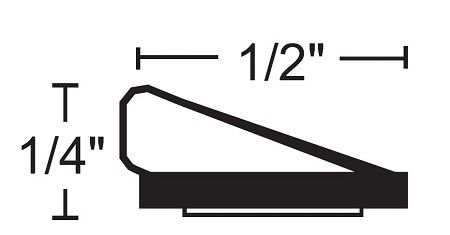

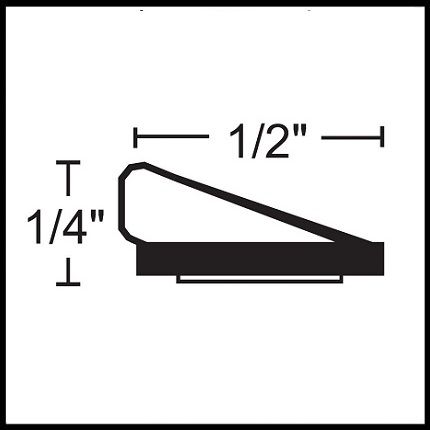

    Width: .5" (1/2")

    Height: .25" (1/4")

    Length: See sizing options. Coils can be easily sized with a household scissor, as needed.

    Seal Material: Rigid PVC base with flexible elastomeric fins. TPE material is resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals.

    Intumescent: NGP Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire.

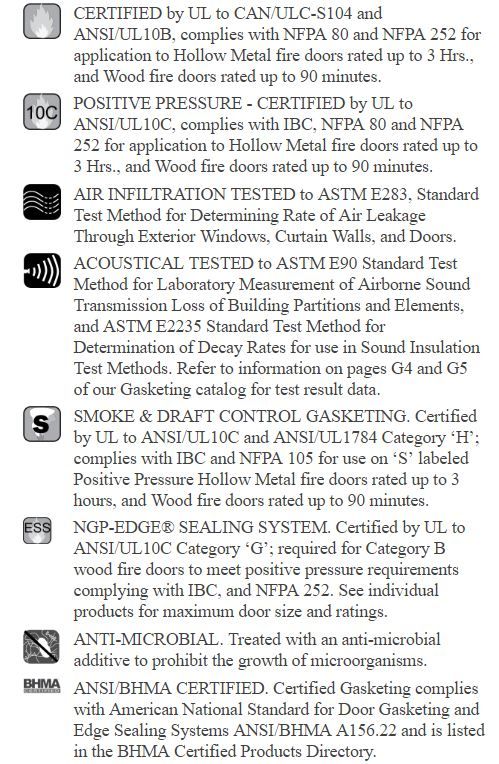

    Compliance Details: REACH and RoHS compliant, Smoke and draft control; NGP-Edge® Sealing System/Smoke and Draft Control Gasketing Category “G” and “H” Classified; ANSI/BHMA Certified; 20, 45, 60, 90 minute rated category B wood doors perimeter application up to: single swing 4'0 x 9'0, standard pair 8'0 x 9'0 use 9550 at the meeting edge; Positive Pressure Tested; Air Infiltration Rated; Anti-Microbial; Accoustical Tested.

    Temperature Range:

    • -60°F to 275°F
    • End use temperature range of adhesive, long term exposure -30°F up to 250°F

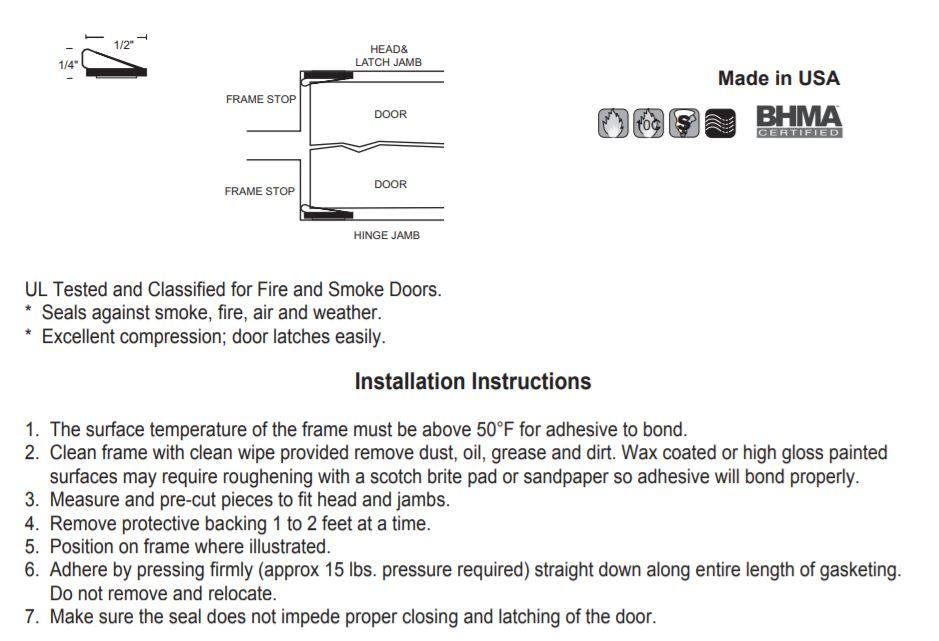

    Installation:

    • This gasket has a self-adhesive backing, for easy installation.
    • Modified acrylic pressure sensitive adhesive protected by release liner
    • Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
    • Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
    • See Installation Guide tab for more info.

    This gasket has a limited shelf-life. Product must be used within 1 year of purchase.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For additional weatherstripping, see our NGP 9500 Adhesive Weatherstrip, 1.5625" Wide PVC and Intumescent Seal

      • SKU
        NG9750C-3
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      9850
    • Length
      36", 48", 84", 94"
    • Finishes
      • Finish
        Charcoal
