NGP 97V Door Sweep, .875" Aluminum Casing with 1" Vinyl Seal

NGP 97 Door Sweep with a .875" aluminum casing is fitted with a vinyl seal. It is surface applied to create a seal between between door bottom and threshold / floor surface to seal small gaps up to 1". Available in choice of finishes and length is custom cut to size.

PRICED PER FOOT -See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG97VA
    • Market price:$5.25
      • save 15%
    • Starting price: Price: $4.46 per foot


    NGP 97 Door Sweep with a .875" aluminum casing is fitted with a vinyl seal. It is surface applied to create a seal between between door bottom and threshold / floor surface to seal small gaps up to 1".

    Seal Material: Gray/Black Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

    Mounting Options:

    • Screws Only: Screw holes are slotted for easy adjustment once installed
    • Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

    Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

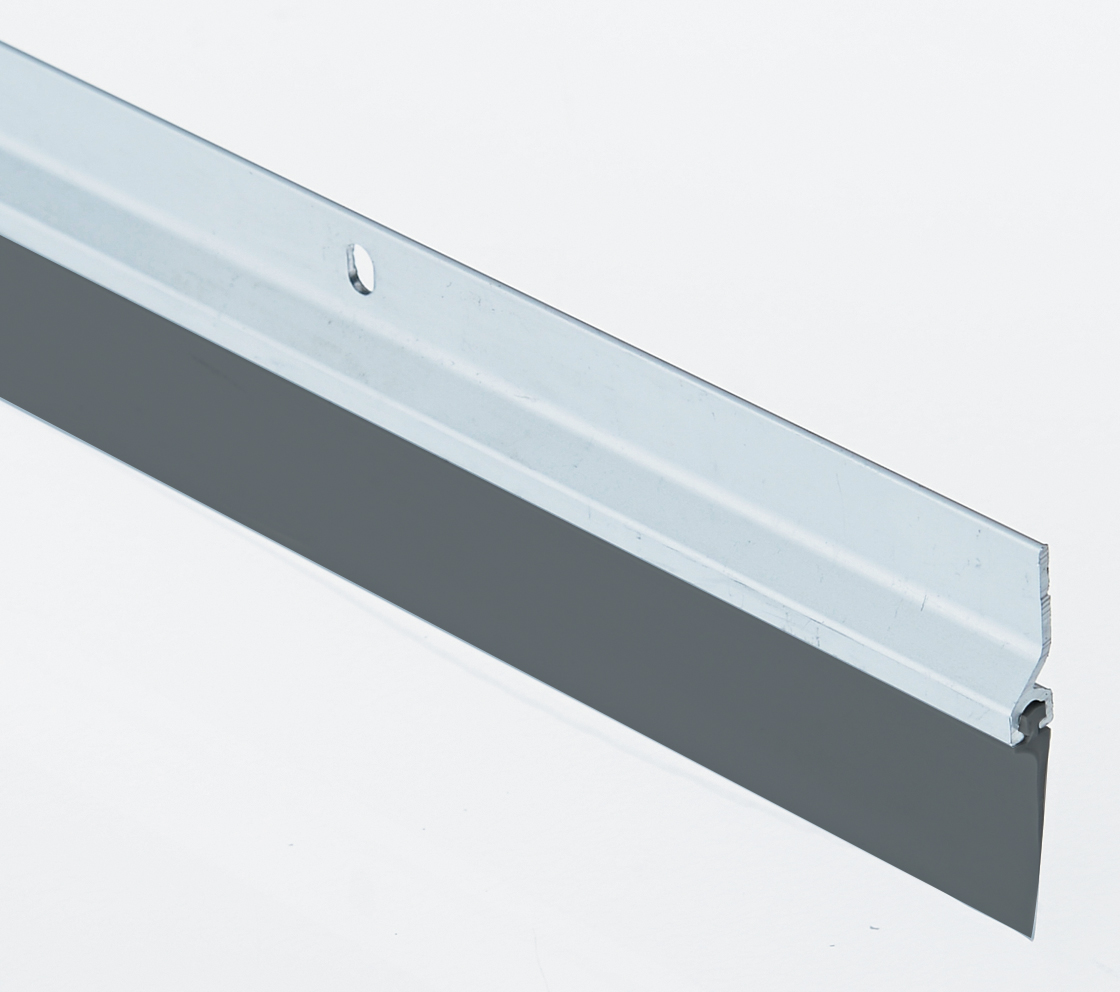

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    See also our NGP 98V Door Sweep, .875" Aluminum Casing with .75" Vinyl Seal

      • SKU
        NG97VA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      97V
    • Mounting
      Screws, Adhesive + Screws
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        0°F to 140°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Vinyl Rubber Seal
      • Mounting
        Surface Mounted
    • Dimensions
      • Seal Height
        1" Height
      • Total Height
        1-7/8" Height
      • Length
        Custom Cut to Size
    • Installation
      • Installation Screws
        #6 x 3/4" stainless steel sheet metal screws provided
    • Finishes
      • Finish
        Mill Finish Aluminum (US27), Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Bronze Finish
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, Air Infiltration Rated, UL Classified, BHMA Certified
      • Warranty
        3 Year Limited Warranty

    Mill Finish Aluminum complies with ANSI/BHMA US27 / 719

    Anodized Aluminum complies with ANSI/BHMA US28 / 628
