Norton Checkmate 2 Series, Concealed, Heavy Duty Electromechanical Closer,Satin Stainless Steel Finish - QuickShip

Norton Checkmate 2 Series, Concealed, Heavy Duty Electromechanical Closer, Application
Norton

Norton's 2 Series Checkmate, an adjustable standard-duty concealed stop and holder. It is designed to be used in medium-weight doors in moderate-traffic situations.

For more finishes and sizes, See Our Norton Checkmate 2 Series

PRICED PER UNIT

See tabs below for additional information
    • Weight
      3 lbs
    • SKU
      NR-2-346-630-085464
    • Market price:$290.41
      • save 25%
    • Starting price: Price: $217.81 per item


    Norton's 2 Series Checkmate, an adjustable standard-duty concealed stop and holder. It is designed to be used in medium-weight doors in moderate-traffic situations. Available with Friction Stay, Hold Open, or Stop functions in different finishes of your choice.

    For more finishes and sizes, See Our Norton Checkmate 2 Series

    Features:

    • Model: Multi-Function

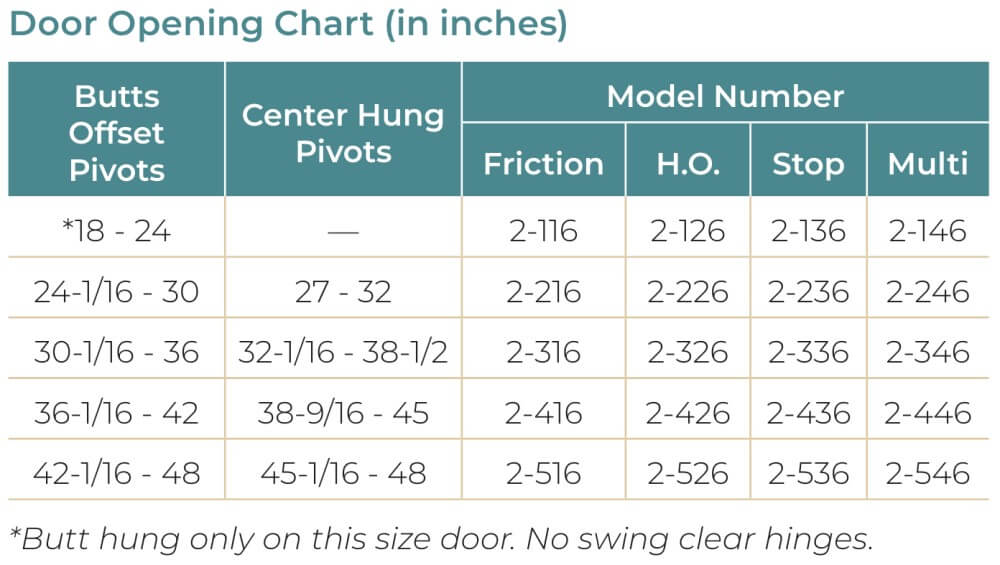

    • Door Opening: 30 1/16" - 36" Butts Offset or 32 1/16" - 32 1/2" Center Hung
    • Moderate traffic, medium weight door applications
    • Degree of opening is fully adjustable and can be adapted to changing needs

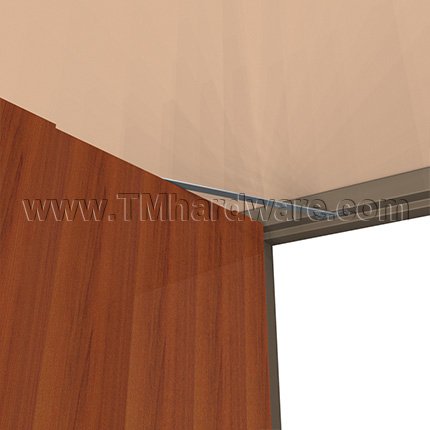

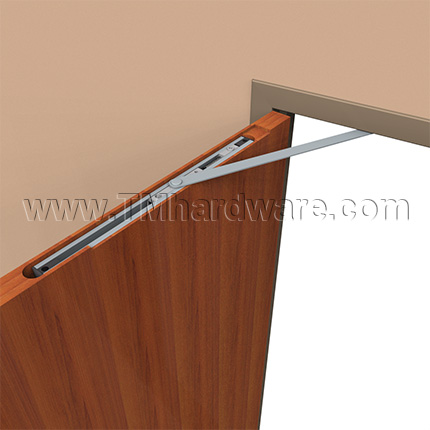

    • Concealed mounting
    • Adjustable, slide track arm
    • For use on interior, single or double acting doors
    • Maximum opening is 110° degrees
    • Multi-function unit is shipped as a stop; can be converted to a hold open or friction in the field. 5012-PKG (adapter kit) included
    • Standard door thickness is 1 3/4"
    • Friction, hold open, stop and multi-functions
    • Heavy shock absorber spring provides 5-7 degrees compression before dead stop
    • Durable slider cam and shock block
    • 3/4" square channel
    • Complete screw packet for installation in wood and machine screws for door and frame
    • For high security areas, Torx® screws available for exposed fasteners
    • Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory

    Benefits:

    • Concealed for added aesthetics
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door closing hardware

    Certification:

    • Certain Models ANSI/BHMA A156.8, Grade 1 Certified
    • Stop functions UL listed

    PRICED PER UNIT

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 1ADJ Series, Concealed, Heavy Duty Electromechanical Closer

      • Weight
        3 lbs
      • SKU
        NR-2-346-630-085464
    • QuickShip
      Yes
    • Manufacturer
      Norton
    • Door Opening
      30 1/16" - 36" Butts Offset or 32 1/16" - 32 1/2" Center Hung
    • Description
      • Series
        2 Series checkmate
      • Closer Performance
        Standard Duty
      • Handing
        Non Handed
    • Features
      • Function
        Multi-Function
      • Adjustable Spring
        No
    • Finishes
      • Finish
        Satin Stainless Steel (630)
    • Compliance Details
      • Compliance Details
        Stop functions UL listed
      • ANSI Designation
        Certain Models ANSI/BHMA A156.8, Grade 1 Certified
      • Warranty
        2 Year Limited Warranty
