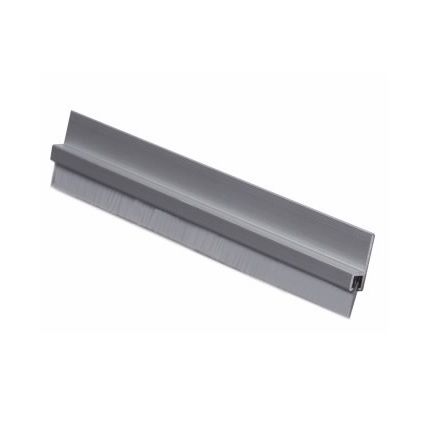

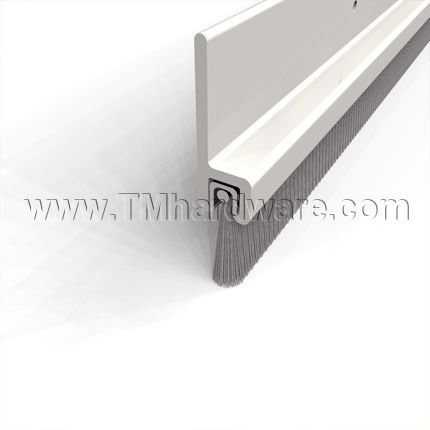

Pemko #18041 Meeting Stile, .75" Clear Aluminum Casing with .375" Nylon Brush Seal, 84" Long

Pemko 18041 meeting stile is designed to be surface mounted to the face of doors to seal a gap between a pair of double active doors. This Meeting Stile has a clear finish and is 84" long. It comes with a nylon brush.

PRICED PER FOOT.

Note, if being purchased for both doors, select quantity 2, or as needed.

See tabs below for additional information

Quantity

Add to compare

This meeting stile is designed to seal the gaps between a pair of double active doors. Comes with a nylon brush and casing finish is clear anodized aluminum. The length is 84" long.

Nylon Brush is comprised of a dense type 6 nylon brush which is rated for smoke, fire, and air infiltration and ensures a quality, long lasting product.

This meeting stile seals gaps up to .7" with minimum closing force. When applied, to ensure proper sealing properties, seals should mesh 1/32" - 1/13". The meeting stile is encased in a high quality aluminum anodized casing which is surface mounted to the face of the doors.

Installation screws provided. Screws are colored to blend unobtrusively with casing.

Reminder: if being purchased for both doors, order quantity '2' or as needed.

Insert Color: Meeting stile is supplied with a Gray Insert.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

This product can also be used as a Fire and Smoke Door Bottom.

- Weight
  5 lbs
- SKU
  PK18041CNB84_MS-085570
QuickShip
Yes
Manufacturer
Pemko Manufacturing
MPN
18041CNB
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Nylon Brush
- Door Type
  Double Active Doors
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  3/8"
- Total Height
  3/4"
- Width
  1/4"
- Size (Feet)
  84"
Installation
- Installation Screws
  Provided
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, BHMA Certified, UL Classified
- ANSI Designation
  R3A734
- Warranty
  5 Year Limited Warranty

Product Specs

Click to Print Prodcut Specs

Compliance Details

Click to View Ratings Explained

Complies with the ANSI / BHMA Code
