Pemko #210 Door Shoe Sweep, L Shaped Aluminum Rain Drip with .5" Fingered Seal - QUICKSHIP

Pemko 210AV36 Door Shoe Sweep in Aluminum Mill Finish
Pemko Manufacturing

This surface mounted L shaped door shoe sweep is fitted with a Eco-V™(Vinly) insert. It also has a rain drip to deflect rain from the door. It is smoke and fire rated and can fill gaps up to .5 inches. It is available in choice of stock finishes stock lengths.

PRICED PER ITEM

This QuickShip item is available in stocked sizes and finishes. For custom sizes and finishes, see Pemko #210 Door Shoe Sweep.

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      PK210AV36
    • Market price:$19.76
      • save 10%
    • Starting price: Price: $17.79 per item


    Door shoes are used to seal the area under a door with minimal effect on the appearance of the face of the door. In addition to sealing the gap under the door, door shoes are often used to provide protection for the bottom of the door.

    This smoke and fire rated L shaped door shoe sweep consists of an aluminum channel with an Eco-V™(Vinly) insert. Eco-V™ is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information. The fingered design conforms well to surface irregularities, ensuring a proper seal at all times.

    The casing has a rain drip design which provides extra protection against weather by deflecting water from the bottom of the door. The aluminum casing is surface mounted to doors with a minimum width of 1.25" and can fill gaps up to .5". The case is punched with elongated slots for easy adjustments.

    Installation instructions and stainless steel fasteners included.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our     Full Warranty Policy.

    For more door seals, see our Zero #255 Door Sweep with .25 Adjustable Pile Seal.

      • Weight
        4 lbs
      • SKU
        PK210AV36
    • QuickShip
      Yes
    • Manufacturer
      Pemko Manufacturing
    • MPN
      210V
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -22°F to +220°F (PemkoPrene® Rubber Seal)
        -4°F to +122°F (Eco-Vinyl Rubber Seal)
      • Door Type
        Metal Door, Wooden Door
      • Seal Type
        Eco-Vinyl Rubber Seal
      • Mounting
        Door Shoe Mount

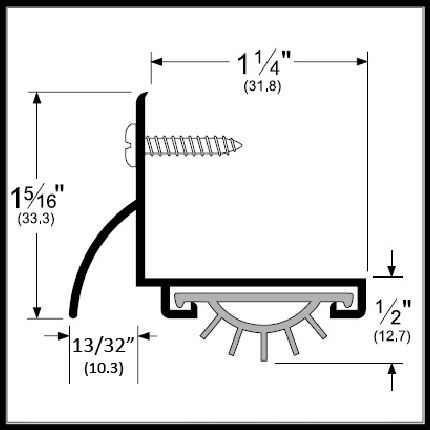

    • Dimensions
      • Seal Height
        1/2" Height
      • Total Height
        1-5/16" Height
      • Additional Dimensions
        Door seal is 1-1/4" thick
      • Length
        36" Length, 48" Length
      • Door Thickness
        Minimum width of 1.25", 1-3/4" Thick, 1-3/8" Thick
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        Screws and fasteners are provided
    • Special Features
      • Rain Drip Cap
        Yes
    • Finishes
      • Finish

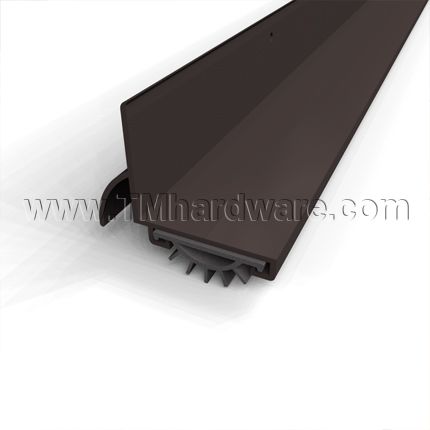

        Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Smoke Rated, Fire Rated, GreenGuard Gold Certified, BHMA Certified, UL Classified
      • ANSI Designation
        R3G514
      • Warranty
        5 Year Limited Warranty

    PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for  PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.

    Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
