Pemko #EGA305XGSS Excessive Gap Solutions, Door Header, for gaps up to 1/2”

Pemko #EGA305XGSS Excessive Gap Door Top Weatherstrip
Pemko Manufacturing

This Pemko Excessive Gap Solution is designed to restore lost fire ratings resulting from large gaps above doors up to 1/2".  Pemko #EGA305XGSS combines Stainless Steel Angled Headers, Silicone Bulb Seals, Intumescent Strips and End Caps.

It can be used on steel composite, hollow metal doors, wood and plastic-covered composite core doors, with no special preparation needed beforehand.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      PKEGA305XGSS36
    • Market price:$358.17
      • save 10%
    • Starting price: Price: $322.35 per item


    This Pemko Excessive Gap Solution is designed to restore lost fire ratings resulting from large gaps above doors up to 1/2".  It's a quick and easy resolution to fire door inspection issues and eliminates the costly expense of replacing doors.

    See Excessive Gap Door Solution Brochure for more information.

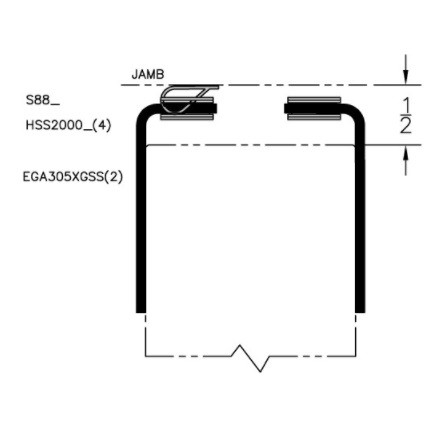

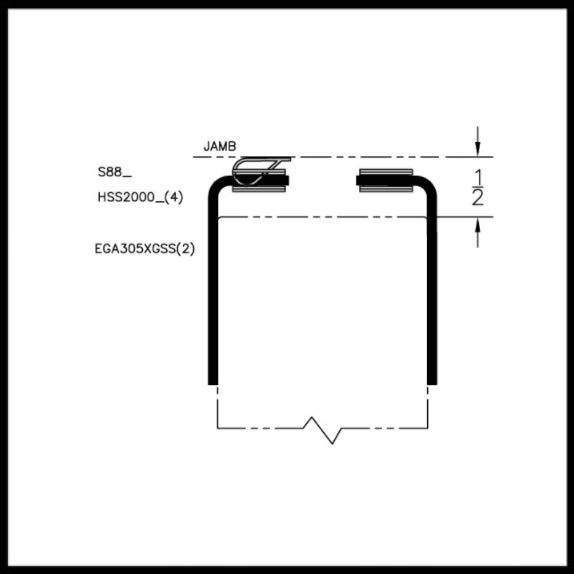

    Pemko #EGA305XGSS  Combines:

    • (2) Stainless Angled Headers
    • (2) S88 Silicone Bulb Seals
    • (2) HSS2000 Intumescent Strips
    • End Caps

    Installation: This product can be used on steel composite, hollow metal doors, wood and plastic-covered composite core doors, with no special preparation needed beforehand.

    Clearance: The clearance between the door face and frame should be more than 1/16". It can be used on gaps in excess of 1/8" and up to 1/2" for 90-minute rated openings.

    Replacement:

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For another great Pemko product which can seal door gaps on door bottoms, see our Pemko #325XGSSN Door Shoe Sweep.

      • SKU
        PKEGA305XGSS36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • About this Product
      • Door Shoe Retainer Material
        Stainless Steel
      • Door Type
        Steel Composite, Metal Door, Wood Covered Composite Core Door, Plastic Covered Composite Core Door
      • Seal Type
        Neoprene Rubber Seal
    • Dimensions
      • Door Seal Weight
        Estimated per foot: 0.58 lbs
      • Total Height
        1-3/4" Height
      • Length
        36" Length, 42" Length, 48" Length
      • Door Thickness
        1-3/4" Thick
    • Finishes
      • Finish
        Stainless Steel
    • Compliance Details
      • Compliance Details
        UL Classified, Non-Combustible, OSHA Compliant
      • Warranty
        5 Year Limited Warranty

    UL Classified: – Excessive clearance solutions for door and frame clearances when installed per the manufacturer’s instructions, intended for use with UL Classified steel composite, hollow metal doors, wood and plastic covered composite core doors with UL Listed fire door frames up to 1-1/2 hour - up to 1/2".

    NFPA80: Indicates that clearances (dimension from door edge to frame) around the top and vertical edges of a fire door are allowed to be: 1/8" for wood doors, 1/8" +/- 1/16" for metal doors. NFPA80 also indicates that the allowable clearance at the bottom of the door (dimension from bottom rail to top of finished floor) is allowed to be up to ¾" maximum.
