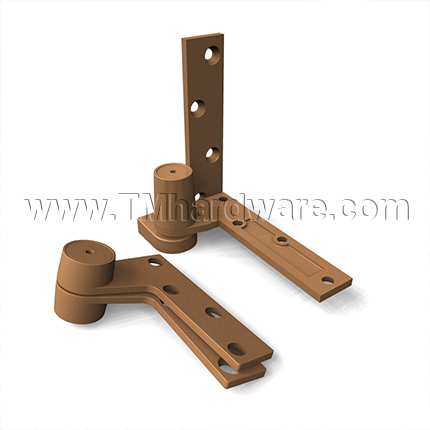

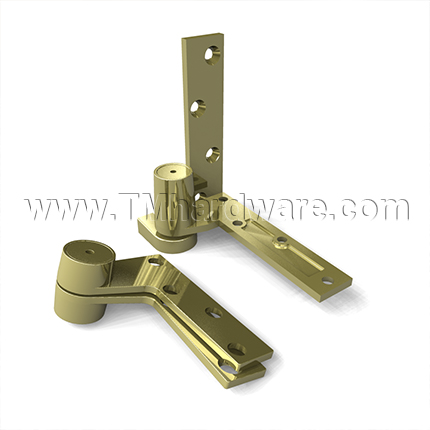

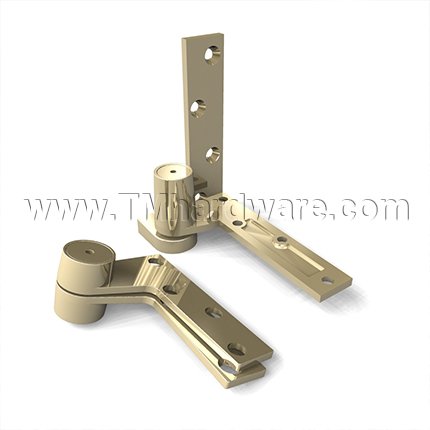

Rixson 195, Door Closer Pivot, Jamb Attached Pivot Set
The 195 Door Pivot for Door Closer, is an offset-hung, jamb-mounted pivot set for interior or exterior doors and can support doors with up to 450 lbs. of weight. This set includes 180 top pivot is available in a variety of finishes. View the options and details below.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 195, Door Closer Pivot - QuickShip
PRICED PER SET
The 195 Door Pivot for Door Closer, is an offset-hung, jamb-mounted pivot set for interior or exterior doors and can support doors with up to 450 lbs. of weight. This set includes 180 top pivot is available in a variety of finishes. View the options and details below.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rixson 195, Door Closer Pivot - QuickShip
Features:
- Exterior or interior doors
- Weight up to 450lbs. (door size & weight guidelines are determined using the appropriate number of intermediate pivots)
- Door width up to 4'0" (1219mm)
- Handed
- 180 top pivot included; 119 or M19 intermediate pivots are recommended (sold separately)
- 3/4" (19mm) offset (measured from centerline of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Bottom pivot mortised into side jamb
- Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims
- Doors will swing 180°, trim permitting
- Non-ferrous base material
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) of door height warrants another intermediate pivot
- Weight of door is borne by floor portion
Optional Features
- Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard (please state on the note)
PRICED PER SET
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
Click here to view Rixson 165, Door Closer Pivot, Pivot Set Without Bottom Pivot, 3/4 Offset
-
QuickShipNo
-
ManufacturerRixson
-
MPN195
-
Set3/4" Offset, Fire rated, 3/4" Offset
- Description
-
SeriesNorton 195 Series
-
HandingRight Handed, Left Handed
-
- Door Description
-
Door WeightUp to 450 LB
-
- Finishes
-
FinishBright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
-
- Compliance Details
-
Warranty2 Year Limited Warranty
-
