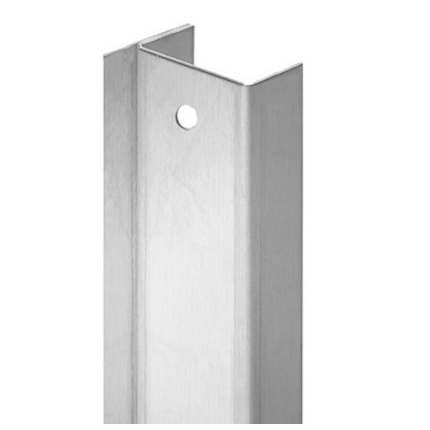

Rockwood 306B-AST, Non-Mortise Door Edge, 93° U-Shaped with Astragal, 1-3/4" Doors, up to 8FT
Rockwood's 93° U Shaped Non-Mortised Door Edge with Astragal is designed to protect the corners of the door. In addition, the astragal provides additional protection against vandalism. Designed for doors 1-3/4" thick, for beveled doors. Door Edge Size 1-3/4" x 1-1/4". Available in a variety of finishes and lengths up to 96".
PRICED PER PIECE-See full product details and specs in the tabs below
Rockwood's 93° U Shaped Non-Mortised Door Edge with Astragal features:
Design: U Shaped Design with Astragal, for beveled doors

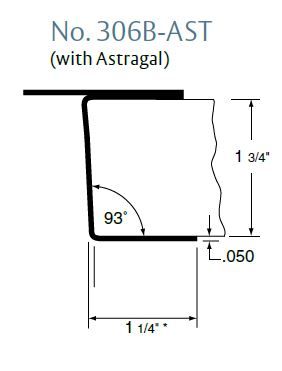

Dimensions: 1-3/4" x 1-1/4" x specify length up to 96" (Larger lengths can be purchased through our office)
Fastener: #6 x 5/8" FH SMS included
Thickness: Designed doors 1-3/4" thick. Custom door sizes can be purchased through our office.
Door Type: Designed for wood and Metal Doors.Choose from options above.
Material: Material: .050" Thick Brass, Bronze, Plain Steel, Stainless Steel

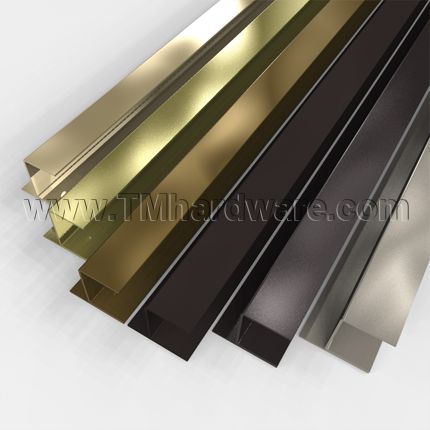

Finishes: See options above, See Rockwood Color Chart for a detailed list of Rockwood finishes.
Cutouts: Cutouts for flush bolts, lock strikes, locks, and hinges available (Can be purchased through our office)
Compliance Details: UL fire rated listed for stainless steel, brass and bronze. For use on wood or plastic faced fire doors rated up to and including 1-1/2 hours or hollow metal, steel covered, composite type fire doors rated up to and including 3 hours. Specify UL Labeling Required in options when ordering.
Astragal: Provides additional protection against vandalism
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.
Product has a 1 year warranty against defects in material and workmanship
Click to view our Full Warranty Policy.
Click Here to view our Rockwood 90° U Shaped Non-Mortised Door Edge
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNR306B-AST
-
UL LabelingNone Required, UL Labeling Required
-
Door TypeWood Door, Metal Door
- Finishes
-
FinishOil Rubbed Bronze, Equiv. (10BE), Satin Stainless Steel (US32D), Microshield Stainless Steel, Satin, Satin Bronze (US10), Polished Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), 316 Alloy Stainless Steel, Satin
-
