Rockwood Classic RM5650 Straight Finial Pull with Plain Grip - 10" CTC
Rockwood Classic RM5650 Straight Finial Pull with Plain Grip, 10" CTC. Available with 4 different finial styles. This Pull can be purchased as a single pull or as a push / pull set with back to back mounting. Many variations of material and finishes are available, see below for details and options.
PRICED PER PIECE / SET
Rockwood RM5650 Classic Straight Finail Pull with Plain Grip for High End Commercial Applications.
About Classic Line: Create a unique pull by combining any of the 4 finial style. Standard lengths are shown, but custom lengths are readily available. These traditional styles incorporate our commercial quality mounting systems that will endure heavy traffic. Click here to view our full Classic Architectural Door Hardware Line.

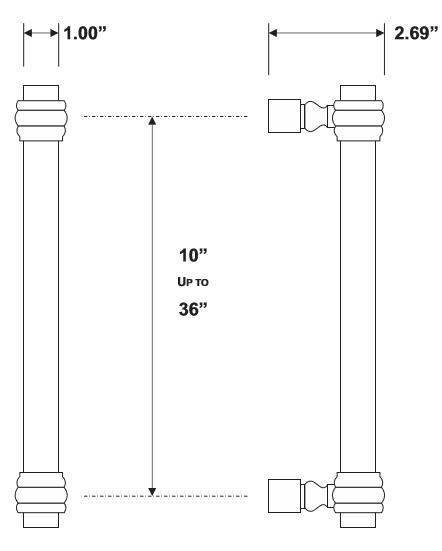

Part # | Diameter | Projection | CTC |
RM5650 | 1" | 2-11/16" | 10" |

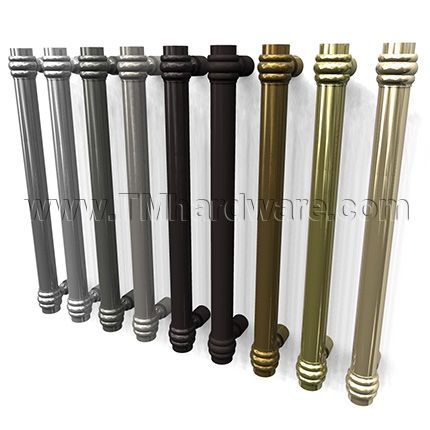

Available Finishes: See options above, see Rockwood Finishes Chart for a detailed list of all Rockwood finishes.
Custom finishes and lengths available. For details and pricing please call us at 845-388-1300.

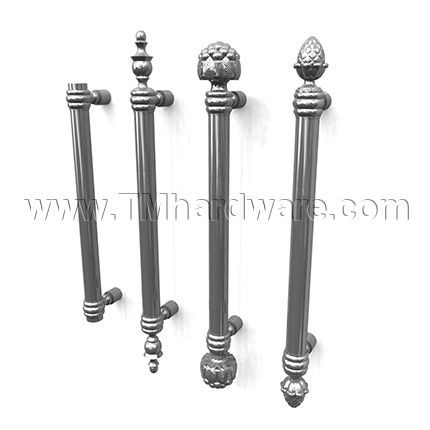

Finial Style Options:

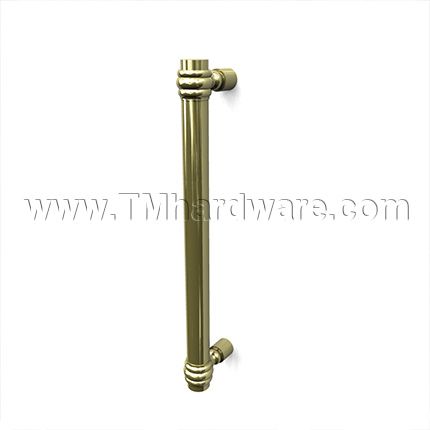

- Plain

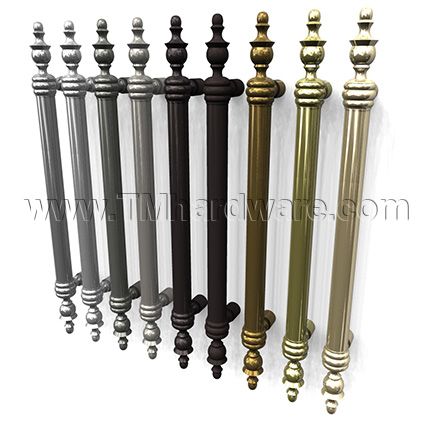

- Urn

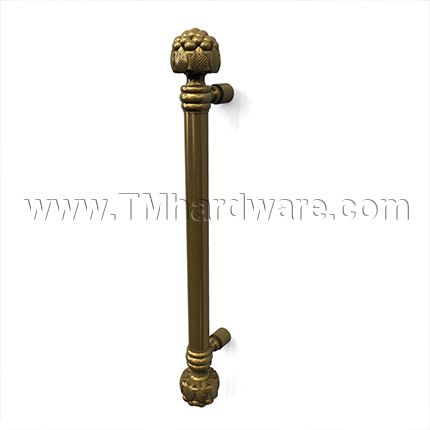

- Berry
- Pinecone
Mounting Types:
- Single Pull - provided with thru-bolt mount
- Push / Pull Set - provided with back to back concealed mounting
Door Types:
- Wooden Door - 1-3/4" Thick
- Metal Door - 1-3/4" Thick
- Glass Door - 1/2" Thick
- For additional thickness, please add to order comments
Additional Fastener Options (can be purchased through our office):
- Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
- Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.
Priced per set / piece

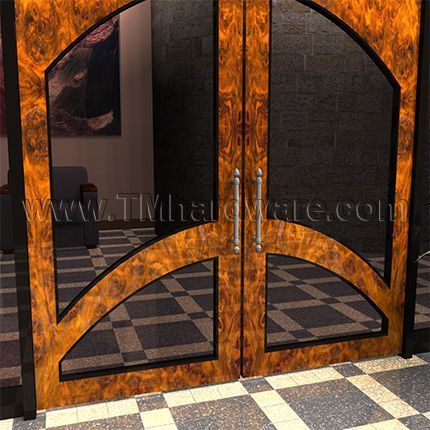

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs tab for exact measurements.
This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.
For our Rockwood Traditional Cast Pull with Base Plate see our Rockwood RM5502 Door Pull.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPNRM5650
-
Product TypeSingle Pull - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
-
Finial TypePlain - 1, Urn -2, Berry - 3, Pinecone - 4
-
Door TypeWooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
- Finishes
-

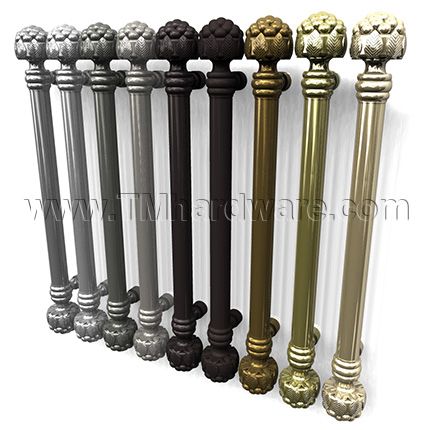

FinishPolished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Oil Rubbed Bronze (US10B), Oil Rubbed Bronze, Equiv. (10BE), Satin Nickel (US15), Antique Nickel (US15A), Polished Chrome (US26), Satin Chrome (US26D)
-
Standard Mountings - Select from Options Above |
||
Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
|
||
Optional Mounting Types - Can be purchased through our office |
||
Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls. |

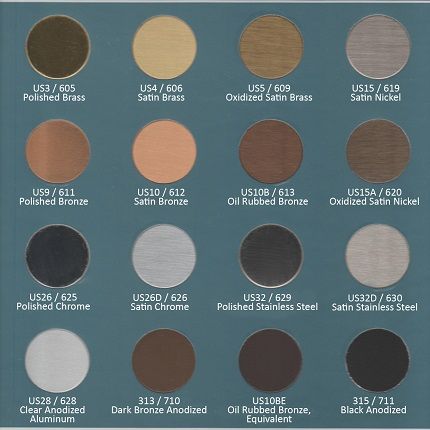

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome Plated-US26/625
- Satin Chrome Plated-US26D/626
- Satin Nickel Plated-US15/619
- Satin Nickel Blackened Relieved Brass-US15A/620
