Rockwood NeoCylinder RM7212 Push Bar without Gripzone, up to 36" CTC

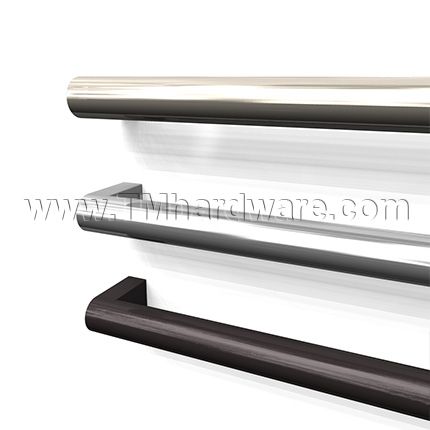

Rockwood NeoCylinder RM7212 Push Bar, available in lengths up to 36". The 1-1/4" tubing blends seamlessly into the terminating flat end posts. This Push Bar can be purchased as a single push bar or as a push / pull set with back to back mounting. Many variations of size, material and finishes are available, see below for details and options.

PRICED PER PIECE / SET

See tabs below for additional information

Finish
Product Type
Push CTC
Door Type

Quantity

Add to compare

Rockwood RM7212 NeoCylinder Push Bar for High End Commercial Applications.

About NeoCylinder Line: The fresh design of our Rockwood Cylinder Push Bars are available in lengths up to 36". The 1-1/4" tubing blend seamlessly into the terminating flat end posts. Click here to view our full NeoCylinder Architectural Door Hardware Line.

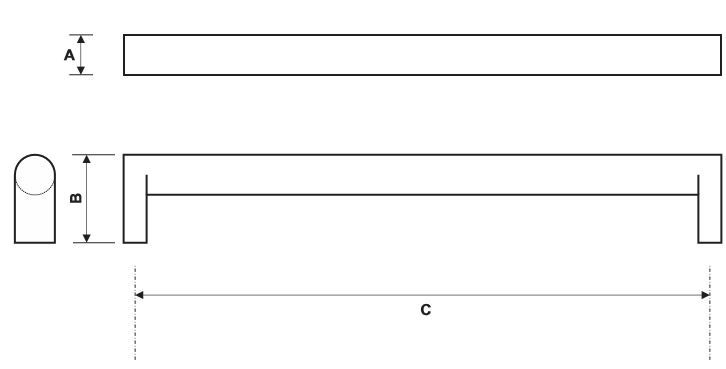

Product #	Diameter	Pull CTC	Projection
RM7212	1.25"	up to 36"	2.75"

Don't know what length push bar you need? Click here to view How to Size a Push Bar.

Mounting Types:

Single Push Bar - provided with thru-bolt mount
Push / Pull Set - provided with back to back concealed mounting

Door Types:

Wooden Door - 1-3/4" Thick
Metal Door - 1-3/4" Thick
Glass Door - 1/2" Thick
For additional thickness, please add to order comments

Additional Fastener Options (can be purchased through our office):

Concealed mounting single pulls, Standard and Heavy Duty Types 6, 6R, 8 - See Additional Options
Y Base Plates are recommended for wooden and glass doors to make a stable and durable mounting - can be purchased through our office.

Priced per set / piece

Materials: Dark Oxidized Satin Bronze Equivalent, Bright Stainless Steel, Satin Stainless Steel.

Custom finishes available. For details and pricing please call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
The mounting is guaranteed for the lifetime of the building. Click here to view our Full Warranty Policy.

For our Rockwood NeoCylinder Offset Door Pull without Gripzone see our Rockwood RM7220 Door Pull.

- SKU
  RKRM7212_US32D
QuickShip
No
Manufacturer
Rockwood Company
MPN
RM7212
Product Type
Single Push Bar - Thru-Bolt Mount, Push / Pull Set - BTB Mounting
Push CTC
12”, 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36"
Door Type
Wooden - 1.75" Thick, Metal - 1.75" Thick, Glass - .5" Thick
Finishes
- Finish
  Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Satin Stainless Steel (US32D)

Click to Print

Standard Mountings - Select from Options Above *Includes standard strength mount. For Heavy Duty Mounting, please purchase through our office

Also available in Heavy Duty Back to Back Mounting: features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Optional Mounting Types - Can be purchased through our office

Also available in Heavy Duty Concealed Mounting: features two set screws 180º apart. To view more details on these mounting types, see Mounting Types for Door Pulls.

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:

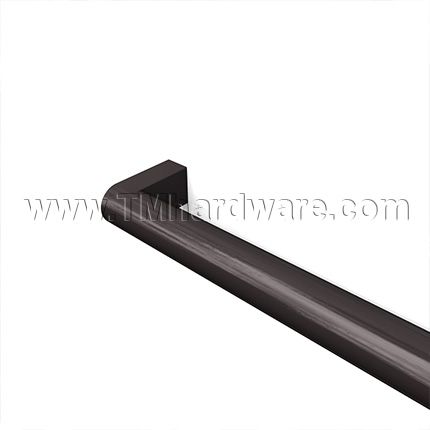

Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
Polished Stainless Steel-US32/629
Satin Stainless Steel-US32D/630
