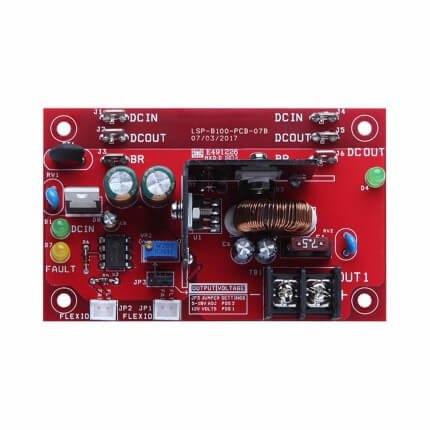

Securiton AQL B100 Secondary Voltage Module

Securiton AQL B100 Secondary Voltage Module
Securitron

With a maximum current of 4 amps and a fixed 12 VDC or changeable range of 5 to 18 VDC, the Securiton AQL B100 Secondary Voltage Module terminal block output is jumper selectable and Class 2 power limited. Combining multiple Securitron B100s into a system can create nearly infinite voltage combinations. Securitron AQLpower supplies provide the primary power for the Securitron B100. The user-defined range—typically 12 VDC—is reached by the Securitron B100 by stepping down the AQL voltage.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCB100
    • Market price:$122.00
      • save 35%
    • Starting price: Price: $79.30 per item


    With a maximum current of 4 amps and a fixed 12 VDC or changeable range of 5 to 18 VDC, the Securiton AQL B100 Secondary Voltage Module terminal block output is jumper selectable and Class 2 power limited. Combining multiple Securitron B100s into a system can create nearly infinite voltage combinations. Securitron AQLpower supplies provide the primary power for the Securitron B100. The user-defined range—typically 12 VDC—is reached by the Securitron B100 by stepping down the AQL voltage.

    Features:

    • Provides the odd voltage required to power modems, routers and other IT or similar devices (ie., 5 V, 9 V, 15 V etc)
    • Snap-in style mounting standoffs with fast-on connect cables for easy field installation
    • Eliminates need for a 12 V battery set in dual voltage access power systems
    • Small size allows for dual voltage in a smaller enclosure
    • Jumper selectable output voltage
      • − 12 VDC fixed
      • − 5 to 18 VDC user adjustable
    • 4 Amps current at any selected voltage
    • Overload protection
    • Short circuit protection
    • Over temperature protection
    • Fault report to host power supply on abnormal operation, voltage loss and overcurrent
    • Visual indicators for DC in/DC out and fault
    • Input and output LEDs indicate voltage by color [Green: <15 V | Blue: >15 V]
    • Adds an economical secondary 12 V output to any 24 VDC system
    • Fiberglass PCB and high-efficiency circuit generates less heat leading to longer service life and lower MTBF

    Specifications:

    • Electrical:
      • Input Voltage (from AQL power supply): 12 or 24 VDC
      • Output Voltage* (jumper select): 12 VDC or 5-18 VDC (user adjustable)
      • Output Current (Class 2 power limited): 4 Amps

    Certification:

    • UL 294 Listed
    • UL 603 Listed
    • UL 1076 Listed
    • ULC-S318 Listed
    • ULC-S319 Listed
    • CSA C22.2 #107.1
    • RoHS Compliant
    • CSFM Approved
    • FCC Part 15, Subpart B

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron AQL104 Series Intelligent Power System

      • SKU
        SCB100
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Compliance Details
      • Compliance Details
        UL 294 Listed, UL 603 Listed, UL 1076 Listed, ULC-S318 Listed, ULC-S319 Listed, CSA C22.2 #107.1, RoHS Compliant, CSFM Approved, FCC Part 15, Subpart B
      • Warranty
        Lifetime Limited Warranty
