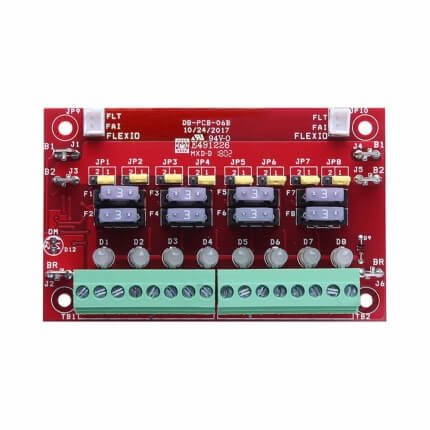

Securiton AQL D8 Power Distribution Module

Securiton AQL D8 Power Distribution Module, 3 A ATO Fused Power Distribution Module
Securitron

When utilized in a Securitron AQL dual voltage power system, the Securiton AQL D8 Power Distribution Module provides programmed outputs to the continuous output of the power supply. In a single voltage system, it provides outputs to either of the two available voltages.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCD8
    • Market price:$87.00
      • save 35%
    • Starting price: Price: $56.55 per item


    When utilized in a Securitron AQL dual voltage power system, the Securiton AQL D8 Power Distribution Module provides programmed outputs to the continuous output of the power supply. In a single voltage system, it provides outputs to either of the two available voltages.

    Features:

    • Dual Buss architecture for field selectable Buss 1 or Buss 2 output
    • 8 outputs for auxiliary power distribution or direct lock control and additional accessory power distribution modules
    • Multi-voltage when used with B100
    • Output Protection
      •  D8 ATM style fuse: 3 A/per output
      •  D8P Solid state circuit breaker: 2.5 A/per output
    •  DC Out visual indicators (Dual color LED per output – Green: 12 V | Blue: 24 V)
    • Multiple modules can be daisy chained to add additional outputs
    • Snap-in style mounting standoffs with fast-on connect cables for easy field installation
    • Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service life and lower MTBF

    Specifications:

    • Electrical:
      • 8 continuous outputs
      • 12 and/or 24 VDC input voltage
      • 12/24 VDC output voltage (jumper select)
      • Output Current D8: Fused a 3 A per output
      • Output Current D8P: Class II at 2.5 A per output

    Certification:

    • UL 294 Listed
    • UL 603 Listed
    • UL 1076 Listed
    • ULC-S318 Listed
    • ULC-S319 Listed
    • CSA C22.2 #107.1
    • RoHS Compliant
    • CSFM Approved
    • FCC Part 15, Subpart B

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securiton AQL B100 Secondary Voltage Module

      • SKU
        SCD8
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model
      (D8) 3 A ATO Fused Power Distribution Module, (D8P) 2.5 A Polyswitch Fused Power Distribution Module
    • Compliance Details
      • Compliance Details
        UL 294 Listed, UL 603 Listed, UL 1076 Listed, ULC-S318 Listed, ULC-S319 Listed, CSA C22.2 #107.1, RoHS Compliant, CSFM Approved, FCC Part 15, Subpart B
      • Warranty
        Lifetime Limited Warranty
