Securiton AQL NL4 Power Monitoring

Securiton AQL NL4 Power Monitoring
Securitron

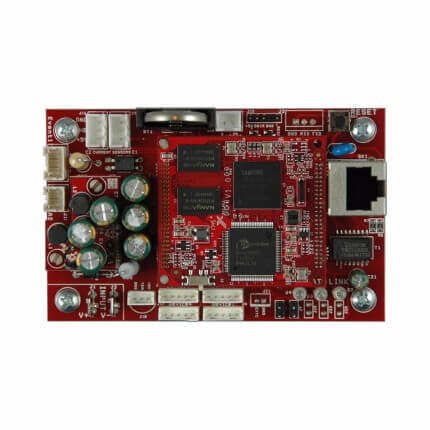

A four input data network module, the Securiton AQL NL4 Power Monitoring power monitoring module transmits power status information across a local or wide network. The power system may be monitored thanks to the SPI ports that this unit offers for connecting to other Securitron devices. Reports typically include operating status, battery charging current, charging voltage, output voltage of the power supply, and input status of the fire alarm.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCNL4
    • Market price:$555.00
      • save 40%
    • Starting price: Price: $333.00 per item


    A four input data network module, the Securiton AQL NL4 Power Monitoring power monitoring module transmits power status information across a local or wide network. The power system may be monitored thanks to the SPI ports that this unit offers for connecting to other Securitron devices. Reports typically include operating status, battery charging current, charging voltage, output voltage of the power supply, and input status of the fire alarm.

    Features:

    • Monitoring and reporting for health and status of host power supply and battery set
    • 1000 event buffer
    • Time/Date stamp log reports the last 1000 events
    • Auto-schedule, test, and report battery standby time
    • Remote supervision of the battery’s state of charge
    • Monitoring internal cabinet temperature
    • Monitoring external room temperature with “over temp” alert
    • Remote power cycling control of external equipment
    • Receive system monitoring email notifications for:
      • AC and system fault conditions
      • Aging or drained battery, battery not meeting standby specification
      • Fire Alarm Interface (FAI) activation
      • External room temperature outside preset limit
      • External Event Activation
    • SNMP set and trap notification on version 1, 2, or 3
    • Encrypted password, user and certificate logging

    Specifications:

    • Electrical:
      • Input Operating Voltage: 9 to 30 VDC
      • Input Operating Current: 60 mA nominal
      • Network Data Rate: 10/100 Mbps
      • Voltage Measurement Range: 1 to 30 VDC ± 5%
      • Current Measurement Range: 0 to 20 A ± 0.1 A + 5% of reading
      • Event Input: 9 to 32 VDC
      • Output: 1, 2 Max Sink
      • Current: 50 mA nominal


    Certification:

    • UL 294 Listed
    • UL 603 Listed
    • UL 1076 Listed
    • ULC-S318 Listed
    • ULC-S319 Listed
    • CSA C22.2 #205
