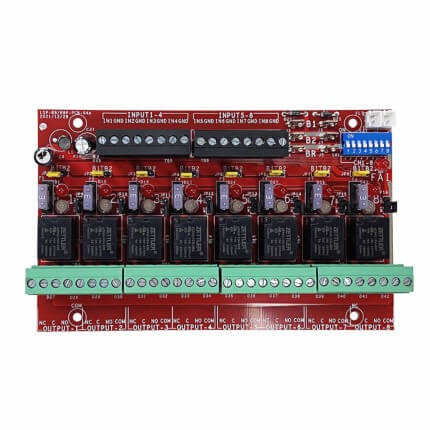

Securiton AQL R8 Power Relay Module

Securiton AQL R8 Power Relay Module
Securitron

For additional accessory power distribution and direct lock control, the R8 has several relayed outputs. Eight access control inputs on this module can be activated without a dry contact or an open collector. Additionally, it has eight relay outputs that can be powered for failsafe or fail-secure locking mechanisms or programmed for dry or wet contact.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCR8
    • Market price:$149.00
      • save 35%
    • Starting price: Price: $96.85 per item


    For additional accessory power distribution and direct lock control, the R8 has several relayed outputs. Eight access control inputs on this module can be activated without a dry contact or an open collector. Additionally, it has eight relay outputs that can be powered for failsafe or fail-secure locking mechanisms or programmed for dry or wet contact.

    Features:

    • Dual Buss architecture for field selectable Buss 1 or Buss 2 output
    • 8 outputs for direct lock control and additional accessory power distribution
    • Multi-voltage when used with Securitron B100
    • Configurable for fail-safe, fail-secure and dry contact operation modes
    • Fire alarm fault detection and reporting to the Securitron AQL series power supply
    • Visual indicators
      • Relay activation per output – Red LED
      • Voltage level – Bi-color LED voltage indicators
    • Multiple modules can be daisy chained to add additional outputs
    • Snap-in style standoffs with fast-on connect cables for easy field installation
    • Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service life and lower MTBF

    Specifications:

    • Operating Temperature: 32˚ to 122˚ F [0˚to 50˚ C]
    • Electrical:
      • 8 lock outputs
      • 8 access control inputs
      • Input voltage 12 and 24 VDC
      • Input current 20 Amps max
      • Output voltage (jumper select): 12 or 24 VDC
      • Output current: Fused at 3 A per output
      • Relay contact rating: 12 A at 28 V
      • Fire alarm selection per output
      • Supports follow on modules

    Certification:

    • UL 294 Listed
    • UL 603 Listed
    • UL 1076 Listed
    • ULC-S318 Listed
    • ULC-S319 Listed
    • CSA C22.2 #107.1
    • RoHS Compliant
    • CSFM Approved

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securiton AQL D8 Power Distribution Module

      • SKU
        SCR8
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Compliance Details
      • Compliance Details
        UL 294 Listed, UL 603 Listed, UL 1076 Listed, ULC-S318 Listed, ULC-S319 Listed, CSA C22.2 #107.1, RoHS Compliant, CSFM Approved
      • Warranty
        Lifetime Limited Warranty
