Securitron AQE Single Port Extractor PoE Midspan

Securitron AQE Single Port Extractor PoE Midspan
Securitron

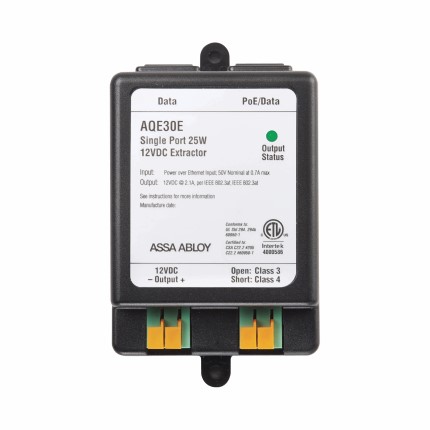

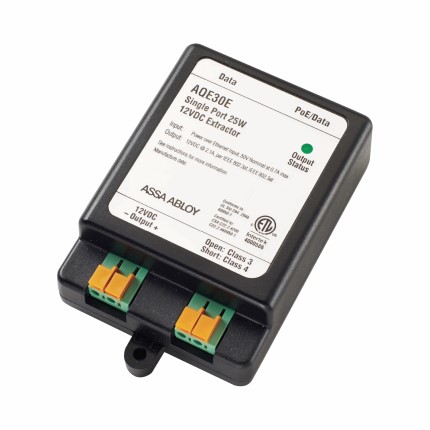

For use in security and access control applications, Securitron AQE30E is a single port Power over Ethernet (PoE) MidSpan Extractor. This module converts 12VDC power from a PoE source to a maximum output power of 25W for a non-PoE device.DC IP and PTZ cameras, door controls, access control, and other devices of a similar nature are powered by the AQE30E Extractor. In addition to two terminal strips for selecting the DC output and power level, the AQE Series Extractor has RJ45 connectors for data input and output.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCAQE30E
    • Market price:$253.00
      • save 37%
    • Starting price: Price: $158.40 per item


    For use in security and access control applications, Securitron AQE30E is a single port Power over Ethernet (PoE) MidSpan Extractor. This module converts 12VDC power from a PoE source to a maximum output power of 25W for a non-PoE device.DC IP and PTZ cameras, door controls, access control, and other devices of a similar nature are powered by the AQE30E Extractor. In addition to two terminal strips for selecting the DC output and power level, the AQE Series Extractor has RJ45 connectors for data input and output.

    Features:

    • Allowspoweringof non-PoE devices from a PoE source
    • 12VDCoutputpowerderivedfrom PoE source
    • Selectable for 13Wor25Woutput to match the PoE source
    • Visualdiagnosticsbyon-board LED

    Specifications:

    • Operating Temperature: -32 to +120F [0 to +49C]
    • Electrical:
      • 42.5 to 57VDC Input
      •  0.6 A input current
      • 12VDC output, 13 or 25W
      •  10/100/1000 data rate Base-T compliant

    Certification:

    • UL 294B Listed
    • UL/CUL 60950-1
    • 30W IEEE 802.3at
    • CSA C22.2 No.205-M1983, Signal Equipment
    • RoHS compliant

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron AQE Single Port Injector PoE

      • SKU
        SCAQE30E
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Amps
      0.6
    • Output Voltage
      12VDC
    • Output Power
      1A/2A 13W/25W
    • Compliance Details
      • Compliance Details
        UL 294B Listed, UL/CUL 60950-1, 30W IEEE 802.3at, CSA C22.2 No.205-M1983, Signal Equipment, RoHS Compliant
      • Warranty
        Lifetime Limited Warranty
