Securitron BPSS Solar Power Supplies

Securitron BPSS Solar Power Supplies, 12 VDC with 10 W Solar Panel and 9 Ah Battery
Securitron

When conventional power is either unavailable or impractical, the BPSS is the only off-the-shelf alternative made expressly for remote electric lock control. By generating sustainable solar and battery-operated electricity, this all-in-one solar power system powers the majority of single-point access control devices and fail-secure locks (for intermittent use only). The device or product to be installed should be chosen between the BPSS-10 and BPSS-20 (10 or 20 charging watts, respectively) depending on the solar activity in the area.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCBPSS10
    • Market price:$1,291.00
      • save 35%
    • Starting price: Price: $839.15 per item


    When conventional power is either unavailable or impractical, the BPSS is the only off-the-shelf alternative made expressly for remote electric lock control. By generating sustainable solar and battery-operated electricity, this all-in-one solar power system powers the majority of single-point access control devices and fail-secure locks (for intermittent use only). The device or product to be installed should be chosen between the BPSS-10 and BPSS-20 (10 or 20 charging watts, respectively) depending on the solar activity in the area.

    Features:

    • Works with most fail-secure electric locks
    • Works with most keypads or card readers
    • Available in 10W and 20W versions
    • Operates outdoors
    • 100% solid-state solar controller comes with anodized aluminum case and marine-rated terminals
    • Low voltage battery monitor protects batteries from deep discharge
    • High-efficiency photovoltaic panels use silicon nitride multicrystalline cells
    • Green charging LED indicator
    • Comes with mounting brackets for enclosure and solar panel
    • Approved for use in hazardous locations - Class 1, Division 2, Groups A, B, C, D

    Specifications:

    • Operating Temperature: -4 to +113F [-20 to +45C]
    • Panel(s) Operating Temperature: -40 to +185F [-40 to +85C]
    • Electrical:
      • Maximum 125 mA continuous, 1A maximum operating the locking device - intermittent duty only. Number of daily lock operations will vary due to solar activity and current draw
    • Output Voltage: 14.4 VDC max

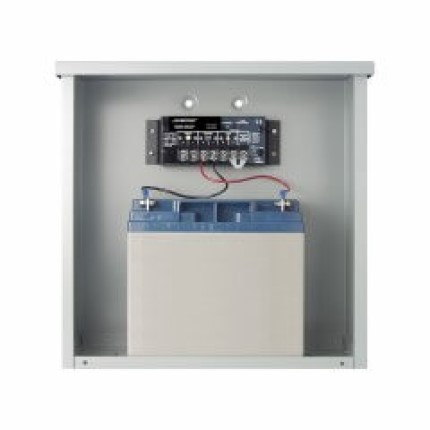

    • Enclosure dimensions: Outdoor (NEMA-3R): 12-1/2" x 13-5/8" x 4-7/16"

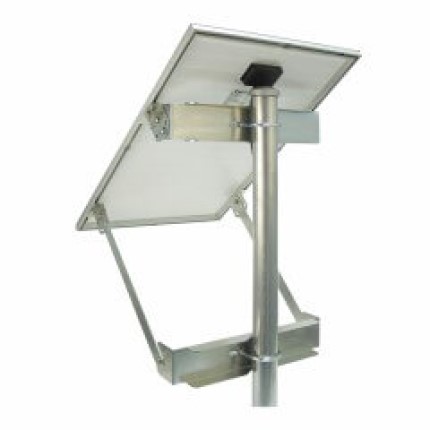

    • Standard Enclosure Brackets: Accommodates up to 2" diameter pole/post

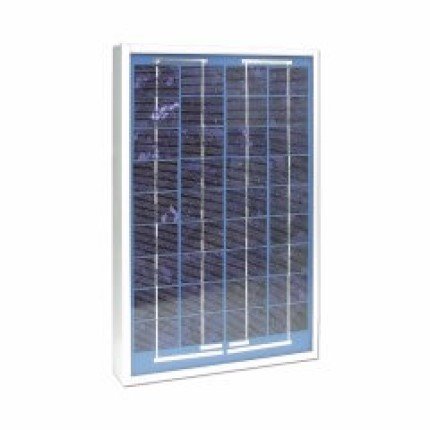

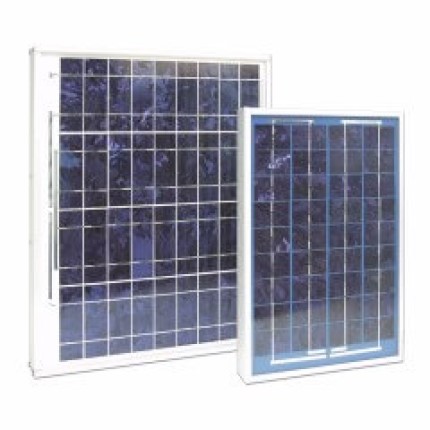

    • Solar Panels:
      •  Size:
        • BPSS-10: 14-1/2" x 12-3/16" x 11/16"
        • BPSS-20: 22" x 14-3/16" x 11/16"
      • Rated Power:
        • BPSS-10: 10 Watts
        • BPSS-20: 20 Watts
      • Panel Weight:
        • BPSS-10: 3.3 lbs [1.5kg]
        • BPSS-20: 5.5 lbs [2.5kg]

    Accessories:

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securiton AQL NL4 Power Monitoring

      • SKU
        SCBPSS10
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model
      12 VDC with 10 W Solar Panel and 9 Ah Battery, 12 VDC with 20 W Solar Panel and 18 Ah Battery
    • Compliance Details
      • Warranty
        3 Year Limited Warranty
