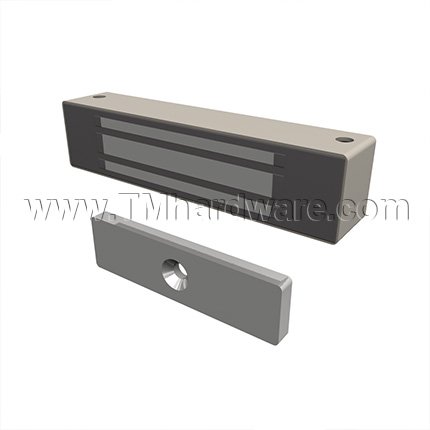

Securitron M32 Durable Magnalocks, Electronic Lock

Securitron M32 Durable Magnalocks, Electronic Lock, Direct Mount
Securitron

For traffic control in high-use zones inside of guarded or closely observed perimeters, the Securitron M32 Durable Magnalock is perfect. The M32 is incredibly durable and will last long after most structures wear out. Storage spaces, rooms, and halls are among the applications where dependability, extreme durability, and minimal maintenance are necessary.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SC-M32
    • Market price:$460.00
      • save 40%
    • Starting price: Price: $276.00 per item


    For traffic control in high-use zones inside of guarded or closely observed perimeters, the Securitron M32 Durable Magnalock is perfect. The M32 is incredibly durable and will last long after most structures wear out. Storage spaces, rooms, and halls are among the applications where dependability, extreme durability, and minimal maintenance are necessary.

    Features:

    • Fire rated—3 hours
    • PoE friendly
    • Sustainability documentation
    • Efficient, low-power usage
    • Automatic dual-voltage— no field adjustment required
    • Fully sealed for weather-resistant operations
    • Size optimized for use with door closers
    • Rust resistant—all ferrous metal surfaces plated for durability
    • Instant release circuit— no residual magnetism
    • Noise suppression with built-in MOV
    • 10 ft [3.05m] of jacketed, stranded conductor cable
    • Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

    Optional Feature:

    • Face drilled (F)
    • Patented BondSTAT magnetic bond sensor (B)
    • Integrated Door Position Switch (D)
    • BondSTAT Monitor & Door Position Switch (BD)
    • Split Strike (SS)
      • *Split Strike option not available on D and BD monitoring
    • Shock Absorbing Strike Mount (SASM)

    Specifications:

    • Holding Force:  600 lbs [272kg]
    • Operating Temperature:  -40˚ to 140˚F [-40˚ to 60˚C], Indoor or Outdoor use
    • Electrical:
      • 300 mA at 12 VDC
      • 150 mA at 24 VDC

    Certifications:

    • UL 10C Listed
    • CAN4-S104, CAN/ULC-S533 Listed
    • ANSI/UL 294 Listed
    • CSA-C22.2 No.205 Listed
    • ANSI/BHMA A156.23, Grade 3; E08501-500 Compliant
    • CSFM—California State Fire Marshal Approved
    • CE:EN 50081-1(92), EN 61000-6-2(99) Approved
    • Environmental Product Declaration
    • Health Product Declaration


    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron DEM680E EcoMag, Delayed Egress Magnalock, Electronic Lock

      • SKU
        SC-M32
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Mounting Method
      Direct Mount, Face Drilled
    • Monitoring Options
      No Monitoring, BondSTAT Monitor, Door Position Switch, BondSTAT Monitor & Door Position Switch
    • About this Product
      • Collection / Series
        Magnalock
      • Lock Type
        Magnetic Lock
    • Specifications
      • Grade
        Grade 3
    • Finishes
      • Finish
        Satin Stainless Steel (630)
    • Compliance Details
      • Compliance Details
        UL 10C Listed, CAN4-S104, CAN/ULC-S533 Listed, CSA-C22.2 No.205 Listed, CSFM—California State Fire Marshal Approved, CE:EN 50081-1(92), EN 61000-6-2(99) Approved, Environmental Product Declaration, Health Product Declaration
      • ANSI Designation
        ANSI/UL 294 Listed, ANSI/BHMA A156.23, Grade 3; E08501-500 Compliant
      • Warranty
        Lifetime Limited Warranty
