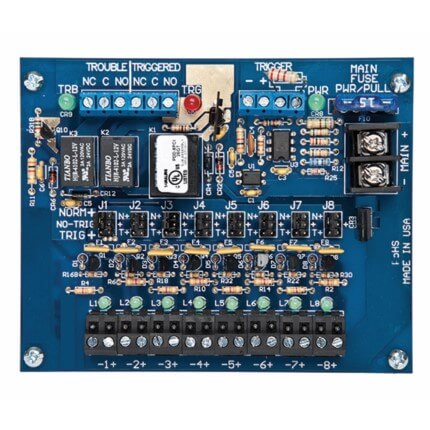

Securitron PDB-8C1R / 8F1R Access Control Boards

Securitron PDB-8C1R / 8F1R Access Control Boards, 8 PTC Outputs, Fire Trigger/Relay, 2 Amp each
Securitron

A main non-power-limited DC power source is converted into eight power-limited outputs that may be managed by a fire alarm control panel using the Securitron PDB-8C1R / 8F1R Access Control Boards. It is possible to individually set each output to turn ON or off when the panel activates it. With one, two, or both supervised trigger inputs, the system can communicate with the PDB-8C1R /8F1R.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCPDB8C1R2
    • Market price:$129.00
      • save 35%
    • Starting price: Price: $83.85 per item


    A main non-power-limited DC power source is converted into eight power-limited outputs that may be managed by a fire alarm control panel using the Securitron PDB-8C1R / 8F1R Access Control Boards. It is possible to individually set each output to turn ON or off when the panel activates it. With one, two, or both supervised trigger inputs, the system can communicate with the PDB-8C1R /8F1R.

    Features:

    • 8 Power Limited Outputs with Auto-Resetting
    • Circuit Breakers for model 8C1R
    • Each Output is Individually Selectable to Turn On, Turn Off, or always ON when Triggered
    • Outputs can be triggered with:
      • 1. Voltage or Reverse polarity (optically isolated)
      • 2. N/O or N/C switch with supervised EOL
    • Form C Contacts (TRIGGERED) and Red LED (TRG) Indicate Trigger Status
    • Form C Contacts (TROUBLE) and Green LED (TRB) Indicate:
      • 1. One of the output circuit breakers is tripped
    • Main Fuse Blown or no power on input
    • Operates with 12-28VDC; Nominal 12-24VDC
    • Each Output pair has a Removable Terminal Block
    • Each Output has a Green Status LED
    • Main Power has Green Status LED
    • Main Power Pull and Fuse

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron PDB-8F8R / 8C8R Access Control Boards with Fire Alarm Interface

      • SKU
        SCPDB8C1R2
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Fuse Type
      PTC Polyswitch, Glass Fuse
    • Fuse Rating
      2 Amp
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
