Securitron PDB-8F8R / 8C8R Access Control Boards with Fire Alarm Interface

Securitron PDB-8F8R / 8C8R Access Control Boards With Fire Alarm Interface, 8 PTC Outputs with Relays, Fire Trigger, 2 Amp each
Securitron

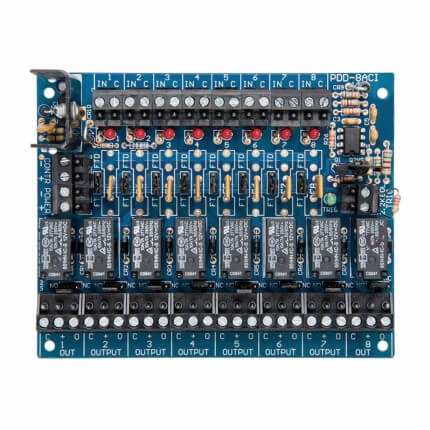

For access control systems with fire alarm interface, the Securitron's PDB-8F8R / 8C8R Access Control Boards with Fire Alarm Interface is a flexible, compact solution for power distribution and control. With separate relays and input control for each output, this access control board is an eight-position power distribution board.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCPDB8C8R2
    • Market price:$180.00
      • save 35%
    • Starting price: Price: $117.00 per item


    For access control systems with fire alarm interface, the Securitron's PDB-8F8R / 8C8R Access Control Boards with Fire Alarm Interface is a flexible, compact solution for power distribution and control. With separate relays and input control for each output, this access control board is an eight-position power distribution board.

    Features:

    • 8 Heavy duty Relays with individual Inputs and Status LED’s
    • Each Relay Input can be Activated from Low Current Open Collector, Normally Closed or Normally Open Switch
    • EOL End of Line Resistor Fire Interface Master Trigger de-energizes all Output Relays that are Enabled
    • Universal 12 – 28VDC power input(Nominal 12-24VDC)
    • 8C8R is Class 2 Power Limited
    • Class 1 wiring required for 8F8R unless powered by a UL 294 or 603 or ULC S318 or ULC S533 listed power supply with class 2 output. There shall be a min of ¼ separation between power-limited and non-power-limited circuits.

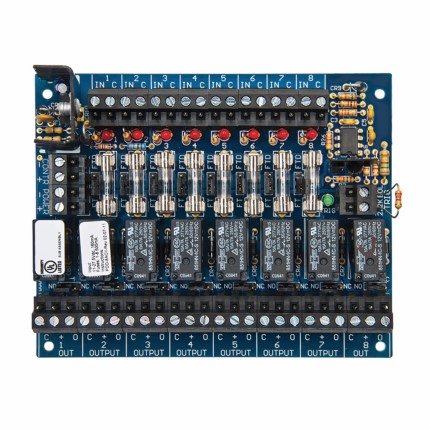

    • Available with Fuses or PTC Circuit Breakers Each Output may be Individually Configured for:
      • Fire Trigger (FT) Enabled or (FTD) Disabled
      • N/O or N/C Option Configures the Relay Switched Output
    • Each Output 1-8 has a protected, continuous Output and a Relay controlled Output
    • Control Power and Main Lock Power may be Isolated (Separate Power Supplies) at Users Option

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron Power Distribution Boards for AQD and AQS Device

      • SKU
        SCPDB8C8R2
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Fuse Type
      PTC Polyswitch, Glass Fuse
    • Fuse Rating
      2 Amp
    • Compliance Details
      • Warranty
        Lifetime Limited Warranty
