Securitron Power Distribution Boards for AQD and AQS Device

To distribute equipment onto multiple circuits, Securitron Power Distribution Boards divide a power supply's primary AC or DC output into numerous outputs of the same voltage type.

Features:

• Splits main board output into multiple outputs
• Each output has a status LED indicator
• Main input has a status LED indicator
• • 12 V or 24 V output (based on power supply output)
• Accepts AC or DC input/ provides same output

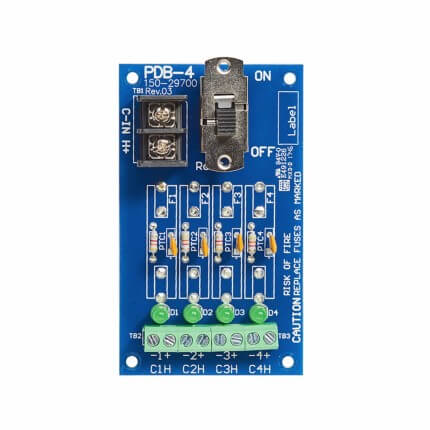

• PDB-4 has an on/off power switch
• PDB-8 has a main power indicator that indicates AC, DC or reverse DC input
• Individually fused with 2 Amp options available
• PTC variants provide class 2 power limited outputs
• Separate fuse for main input surge protection–standard automotive ATO sizes
•


Specifications:

• Electrical:

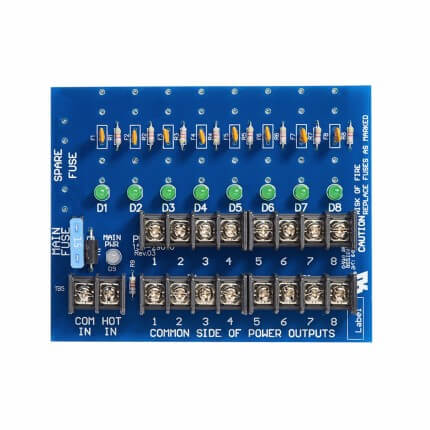

  • PDB-4C, PDB-8C
    • PTC circuit breakers rated holding current at 130° F
    • Accepts AC or DC input up to 32 V
    • Outputs rated Class 2 power limited

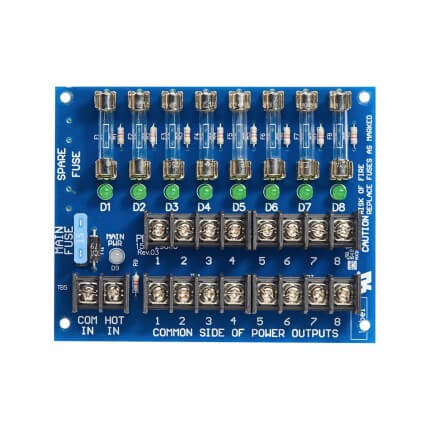

  • PDB-4F, PDB-8F
    • Fuses for individual outputs are standard 3 AGC
    • Accepts AC or DC input

Certification:

• UL 294 Listed
• UL 603 Listed
• ULC-S318 Listed
• ULC-S533 Listed

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
