Securitron TSB Touch Sense Egress Bar

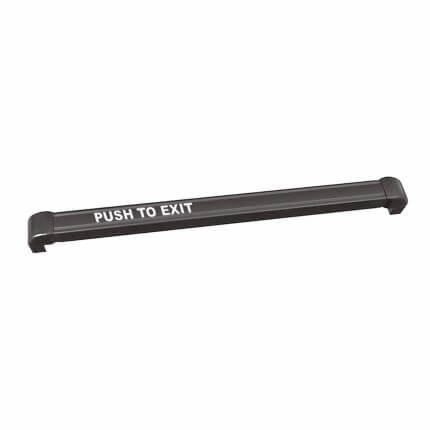

Securitron TSB Touch Sense Egress Bar, 36" Length, Black Anodized Finish
Securitron

For magnetically secured, non-fire-rated doors, the TSB Touch Sense Bar allows for touch-triggered release. The lock is released by an electrical sensor when the bar is touched, even with light gloves or garments on. The DSB can be installed on any kind of indoor door made of metal, aluminum, or wood.  Meets "no special tools or knowledge" requirements.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCTSBBK36
    • Market price:$588.00
      • save 40%
    • Price: $352.80


    For magnetically secured, non-fire-rated doors, the TSB Touch Sense Bar allows for touch-triggered release. The lock is released by an electrical sensor when the bar is touched, even with light gloves or garments on. The DSB can be installed on any kind of indoor door made of metal, aluminum, or wood.  Meets "no special tools or knowledge" requirements.

    Features:

    • Can be field cut to accommodate non-standard openings up to 48"
    • Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which will allow free egress, or initiate the delay on an exit delay timer
    • Backup push button
    • 16 ft [4.8m] 22AWG 6 conductor cable and armored door cord included
    • Operates on either 12 or 24 VDC

    Models:

    • Standard Model
    • Trailing-Edge Timer [3 Sec.]
    • Dummy Bar -  with no release function
    • ElectroLynx
      • Available in 36" length only
      • ElectroLynx™ , a system of universal Molex™ plug-in connectors and standardized color-coded wiring, makes installing electrified doorway components a snap! Pre-wired doors, frames and hardware mean that installation is fool-proof and future-proof.

    Specifications:

    • Operating Temperature: +32 to +110F [0 to +43C], Indoor use
    • Electrical: 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC

    Certification:

    • ANSI/UL 294 Listed
    • CSA-C22.2 No. 205 Listed
    • CSFM—California State Fire Marshal Approved
    • CE: EN 50091-1, EN 61000-6-2 Approved

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron DSB Dual Sense Egress Bar

      • SKU
        SCTSBBK36
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model
      Standard, Trailing Edge Timer [3 Sec.], ElectroLynx, Dummy
    • Touch Bar Cover Plates
      No Cover Plate, Set of 2, Black Anodized (TCP-BK), Set of 2, Clear Anodized (TCP-CL)
    • Length
      36", 42", 48"
    • Finishes
      • Finish

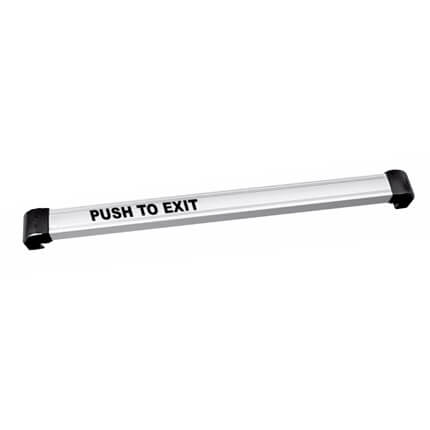

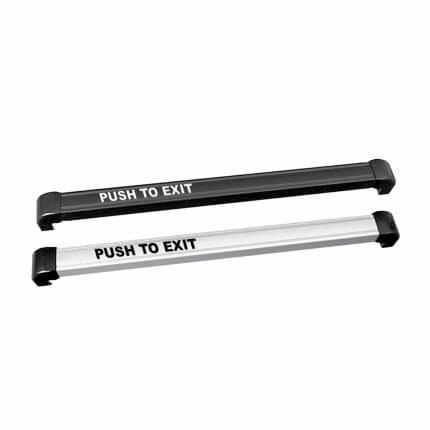

        Black Anodized (BK), Clear Anodized (CL)
    • Compliance Details
      • Compliance Details
        CSA-C22.2 No. 205 Listed, CSFM—California State Fire Marshal Approved, CE: EN 50091-1, EN 61000-6-2 Approved
      • ANSI Designation
        ANSI/UL 294 Listed
      • Warranty
        Lifetime Limited Warranty
