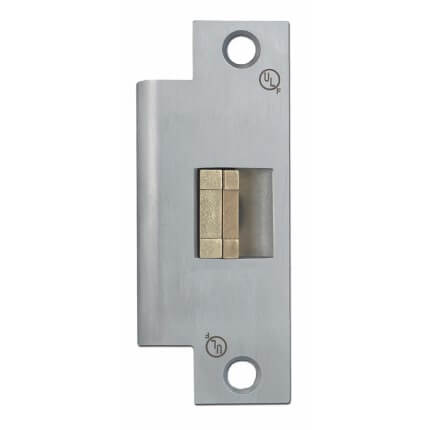

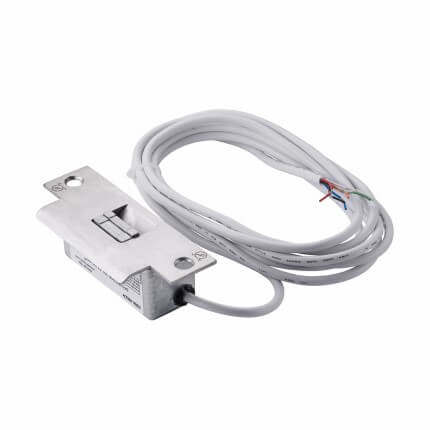

Securitron UNL UnLatch Strike for Cylindrical Locks

Securitron UNL UnLatch Strike For Cylindrical Locks, 12 Volts, Satin Chrome Finish
Securitron

Securitron's UnLatch Strike for Cylindrical Locks can be utilized in any situation where a cylindrical or tubular lockset would normally be secured with an electric strike. UnLatch has a latch status monitoring output, releases under pressure, and offers complete deadlatch functionality.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCUNL12
    • Market price:$707.00
      • save 35%
    • Starting price: Price: $459.55 per item


    Securitron's UnLatch Strike for Cylindrical Locks can be utilized in any situation where a cylindrical or tubular lockset would normally be secured with an electric strike. UnLatch has a latch status monitoring output, releases under pressure, and offers complete deadlatch functionality.

    Features:

    • No cutting or altering of the jamb required
    • Accommodates up to 5/8" latchbolt
    • Fits standard ANSI 4-7/8" strike cutout
    • Motorized, no solenoids
    • Fully concealed installation
    • Maintains deadlatch function at all times
    • Continuous duty
    • Releases under preload
    • Latch status sensor is standard (SPDT)

    Specifications:

    • Holding Force:  1500 lbs [680kg] static
    • Operating Temperature:  -20˚ to 125˚ F [-29˚ to 52˚ C]
    • Electrical Consumption:
      • 12 VDC (continuous duty)
        • Inrush – 3 Amps
        • Standby Current – 300 mA
      • 24 VDC (continuous duty)
        • Inrush – 1.5 Amps
        • Standby Current – 200 mA

    Optional Accessory:

    Certifications:

    • UL 10C Listed, 3-hour single door
    • CAN4-S104, CAN/ULC Listed
    • NFPA-252 fire door compliant
    • UL listed to ANSI/ SDI-BHMA A250.13 (60PSI) Windstorm
    • ANSI/BHMA A156.31, Grade 1; E09321, E09322, E09323
    • ASTM-E152 fire door compliant

    PRICED PER UNIT

    This product has a 5-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron Z-Bracket Kit for MM15 MEMLOCK

      • SKU
        SCUNL12
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Voltage
      12 Volts, 24 Volts
    • Specifications
      • Grade
        Grade 1
    • Finishes
      • Finish

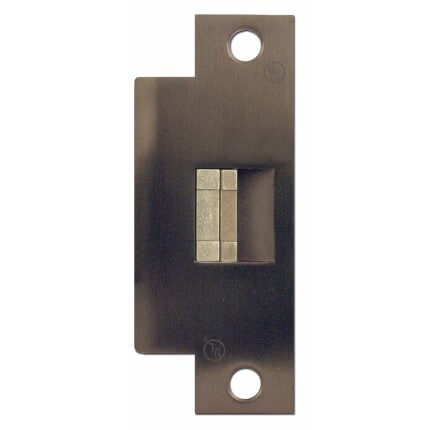

        Satin Chrome (US26D), Oil-Rubbed Bronze (US10B)
    • Compliance Details
      • Compliance Details
        UL 10C Listed, 3-hour single door, CAN4-S104, CAN/ULC Listed, NFPA-252 fire door compliant, UL listed to ANSI/ SDI-BHMA A250.13 (60PSI) Windstorm, ASTM-E152 fire door compliant
      • ANSI Designation
        ANSI/BHMA A156.31, Grade 1; E09321, E09322, E09323
      • Warranty
        5 Year Limited Warranty
