Vision Kit VLFR, Standard Round Frame, Thru-Bolt Mount, 1-3/4" Doors, Glass up to 1/4"

Vision Kit VLFR, Standard Round Frame, Thru-Bolt Mount, 1-3/4" Doors, Glass up to 1/4"
Activar Air Louvers

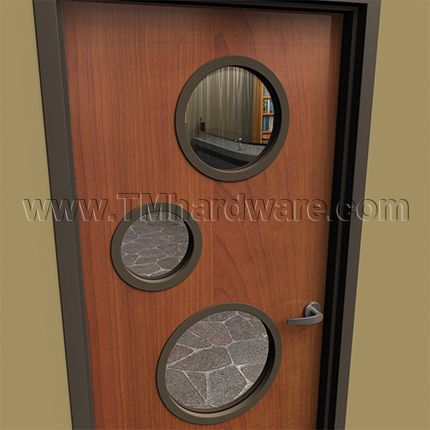

Activar Vision Lite Frame model is a Standard, Multi-Purpose Round Vision Lite, compatible with glass up to 1/4” thick (glass not included). Applied with Thru-bolt mounting on 1-3/4" thick wooden or metal doors. Available in many sizes and finishes.

PRICED PER PIECE - See product details and specs below

See tabs below for additional information
    • SKU
      ACVLFR 12B
    • Market price:$331.00
      • save 20%
    • Starting price: Price: $264.80 per item

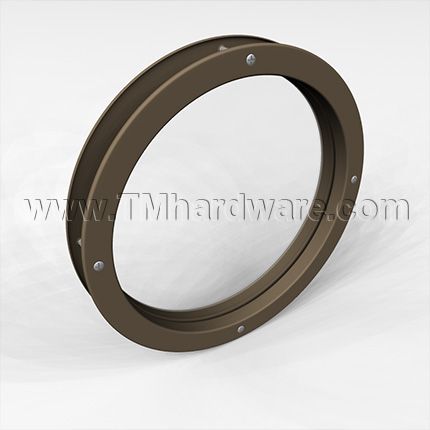

    This round steel Activar VLFR vision lite kit is applied with thru-bolt mounting on wooden or metal doors. Vision Lite frame is for 1/4" thick glazing.

    Material: 18 gauge CRS frame.

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    • Available sizes: 6" - 60" Diameter.

    How to Order: Orders size is the Door Cut-out Dimensions. See product specs for details.

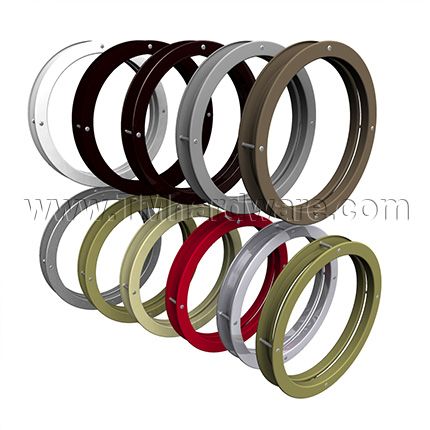

    Available Finishes: Available in all standard Powder Coat Finishes, see our Lites and Louvers Standard Finishes.

    Construction: Circular - one piece construction with no joints. Countersunk mounting holes on both sides.

    Door Type: For 1-3/4" door

    Fasteners Included: #8 x 32 flathead phillips head thrubolts with blank heads one side to match finish

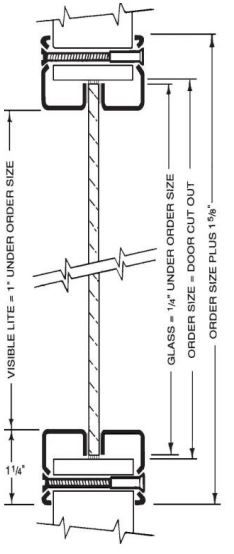

    Glass Compatibility: 3/16” - 1/4” glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 1” under rough opening size.  Glass size is 1/4” under order size.

    Please note, glazing material not supplied with this frame, and can be purchased separately through our site.

    Compliance Details: When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Additional Options: Custom options are available, please contact us for details and pricing.

    • Additional intumescent tape for Positive Pressure UL10C
    • Optional Materials
      • 18 Gauge Stainless Steel #4 Finish
      • Galvanized Sheet for Exterior Applications
      • Electro Zinc Plating for Maximum Corrosion Resistance.
      • Lead Lines
    • Torx Fasteners

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year gurantee against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click to view all our Lite Kits.

      • SKU
        ACVLFR 12B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VLFR
    • Size (W" x H")
      12" Diameter, 18" Diameter, 24" Diameter
    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, AMS Beige Powder Coat, Sand Powder Coat, SC Beige Powder Coat, White Powder Coat, Silver Powder Coat, Black Powder Coat, Flat Black (US19), Brass Powder Coat

    When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    product ratings for VLF
