Vision Kit VSLR, Slimline Low Profile Round Frame, 1-3/4" Doors, Glass up to 1/4", 12" or 18" Dia.

Vision Kit VSLR, Slimline Low Profile Round Frame, 1-3/4" Doors, Glass up to 1/4", 12" or 18" Dia.
Activar Air Louvers

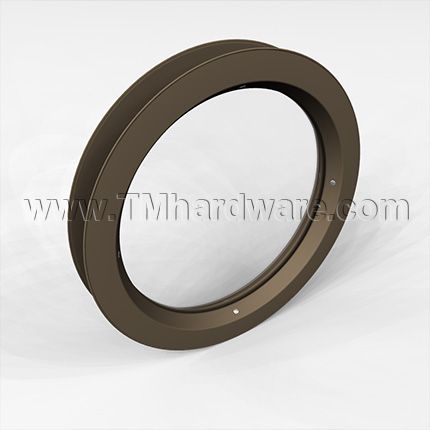

Activar VSLR model is a Round, Low Profile Vision Lite frame, compatible for 3/16” to 1/4” glass (glass not included). This frame is a Self-Attaching frame. Installed with Single Side Fasters for Fire Rated Doors. Available in many different finishes and sizes.

PRICED PER PIECE - See product details and specs in tabs below

See tabs below for additional information
    • SKU
      ACVSLR 12B
    • Market price:$331.00
      • save 20%
    • Starting price: Price: $264.80 per item


    This Activar Self Attaching Round VSLR vision lite kit is applied with single sided fastening for Fire Rated doors. Vision Lite frame is for up to 1/4" glazing.

    Material: 20 gauge CRS frame

    Dimensions: Available in common sizes through our site. Additional sizing can be purchased through our office.

    How to Order: Orders size is the Door Cut-out Dimensions. See product specs for details.

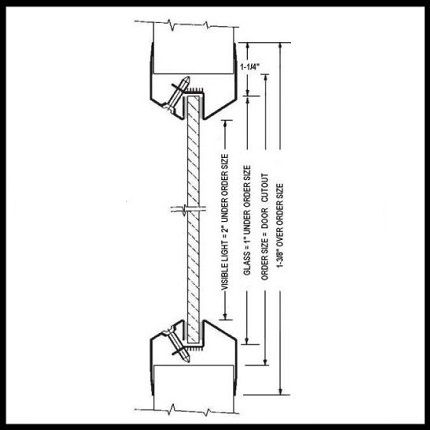

    Construction: 1-1/4” trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side

    Door Type: For 1-3/4” door

    Fasteners Included: #8 x 1” Flathead Phillips SMS to match finish

    Glass Compatibility: 3/16”- 1/4” glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire rated applications. Visible light is 2” under rough opening size. Glass size is 1” under order size.

    Fire Rated Air Louvers Glazing to fit this Product: WS, KFRF, PPF, and PYRO.

    Please note, glazing material not supplied with this frame, and can be purchased separately through our site.

    Compliance Details: When installed in properly rated and approved door, ratings up to 3 hours can be achieved for VSL, depending on the glazing used. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure.

    Additional Options: Custom options are available, please contact us for details and pricing.

    • Additional intumescent tape for Positive Pressure UL10C
       *NOTE: Intumescent tape NOT needed for 20 Minute Wood doors for UL Label
    • Optional Materials
      • 20 Gauge Stainless Steel, #4 Finish
      • Galvanized Sheet for Exterior Applications
      • Electro Zinc Plating for Maximum Corrosion Resistance
    • Torx Fasteners
    • Add Welded Mullions to Your Vision Lite for Additional Security or the French Door Look. See our Mullions for Visions Lite Frames
    • Specialty PAK - Create Your Own Combination of any of our Glazing Selections with Any Vision Lite Select Glazing Tape for UL10B Installations, and We Will Apply the Tape and Securely Package it for You.
    • Add a privacy screen to This Vision Lite
    • Woodlite Wood Veneers -rated 90 minutes, see our Wood Selection for Woodlite Vision Kit

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year guarantee against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click to view our Activar Standard Vision Lite Frame

      • SKU
        ACVSLR 12B
    • QuickShip
      No
    • Manufacturer
      Activar Air Louvers
    • MPN
      VSLR
    • Size
      12" Diameter - Quick Ship, 18" Diameter

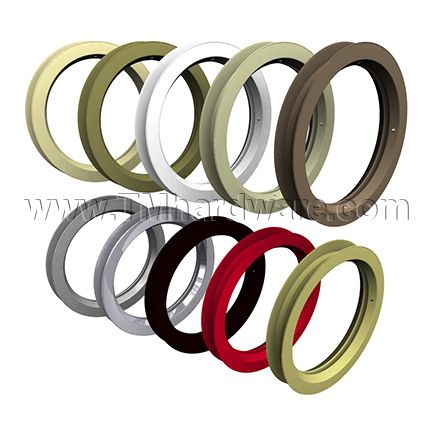

    • Finishes
      • Finish
        Mineral Bronze Powder Coat, Gray Powder Coat, Black Powder Coat, Flat Black (US19), White Powder Coat, SC Beige Powder Coat, Silver Powder Coat, Sand Powder Coat, AMS Beige Powder Coat, Red Powder Coat, Gray Hammertone

    When installed in properly rated and approved door, ratings up to 3 hours can be achieved for VSL and SLR, depending on the glazing used. See glazing ratings for max exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. See detailed installation instructions.

    Rating for Vision Lite VSLR

    Quickship Stock Items - The following options are available for QuickShip and will ship within 48 hours.

    • Finish: Mineral Bronze, Size: 12" Diameter
