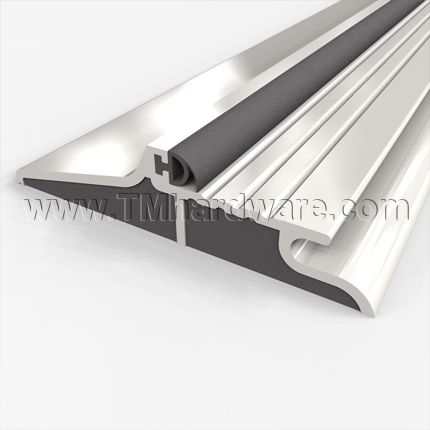

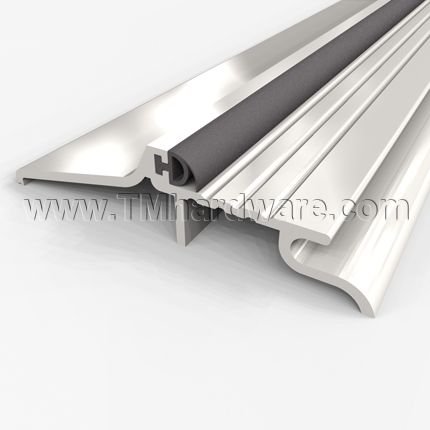

Zero #73 Interlocking Rabbeted Threshold, 4" (W) Aluminum with Neoprene Gasket, .945" H

Zero #73 Interlocking Rabbeted Threshold, 4" (W) Aluminum with Neoprene Gasket, .945" H
Zero International

This item has an extended lead time of 9 weeks

This Zero #73 Interlocking Threshold is both fire and smoke rated. Made of high quality materials it has an upgraded neoprene gasket for extra protection. It is compatible with an out-swing door and ideal for an exterior door. Designed to prevent air, wind and water from infiltrating. Available in Aluminum Mill Finish and is custom cut to size.

PRICED PER FOOT.

Note, this product needs to be installed in conjunction with a J Interlocking Hook or an Interlocking Angle.

See tabs below for additional information
    • SKU
      ZR73A
    • Market price:$17.45
      • save 5%
    • Starting price: Price: $16.58 per foot

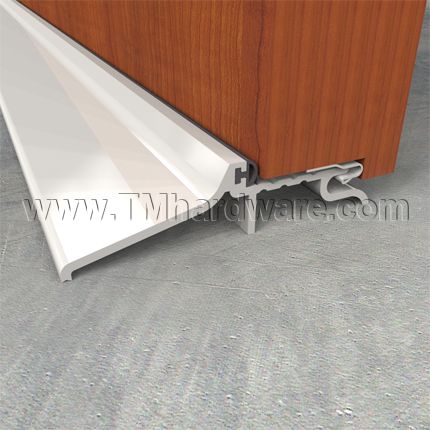

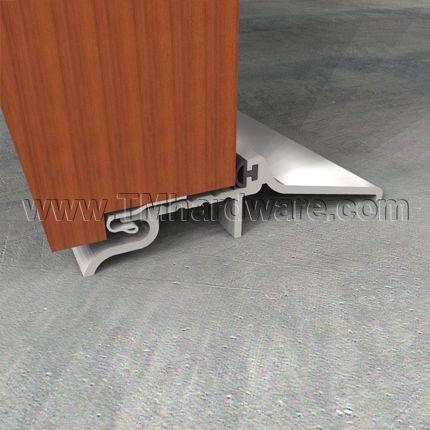

    Designed for outswing exterior doors. Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal. For additional protection it has an interlocking feature.

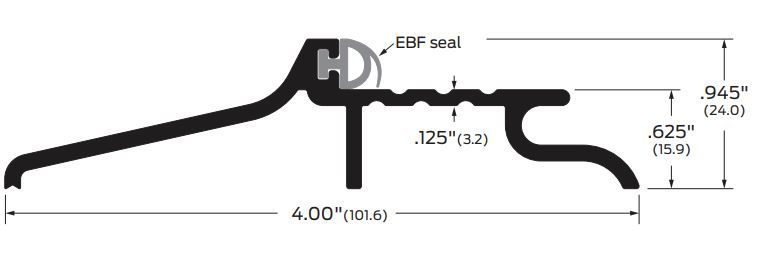

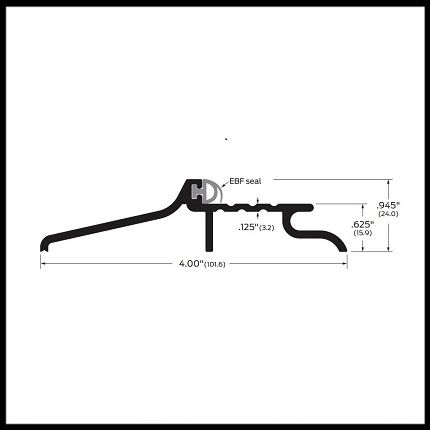

    Total Width: 4"

    Width Under Door: 1.75"

    Required Door Clearance: .625"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Aluminum mill finish

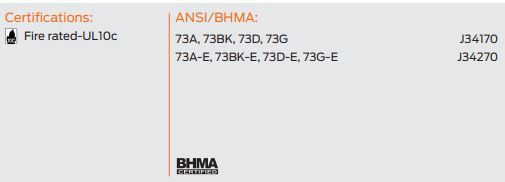

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Interlocking Feature: Designed with an interlocking feature for extra protection. Note, this product needs to be installed in conjunction with a J Interlocking Hook or an Interlocking Angle.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: This product is drilled at standard factory locations.

    Additional Options Include: Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy.

      • SKU
        ZR73A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      73
    • Options
      Standard Aluminum, Aluminum with Full Body
    • Dimensions
      • Overall Height
        .945" Height
      • Overall Width
        4" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .625" Height
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Interlocking Threshold, Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Installation
      • Drilling Holes
        Drilling holes provided
      • Fasteners
        Fasteners Provided
    • Finishes
      • Finish
        Flat Black (US19)
    • Compliance Details
      • Warranty
        1 Year Limited Warranty

    compliance details for z73
