Zero #59FS Door Bottom, Mortised Aluminum Track with .25" Neoprene Blade and Fire Stop Insert

Door Bottom Sweep with Fire Stop Material
Zero International

This Zero #59FS mortised neoprene door bottom can be used to restore lost fire ratings. It is fitted with a super durable neoprene blade and a strip of Zero's INTUMET™ Technology. It is available in aluminum and is custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information
    • SKU
      ZR59FS-A_DB
    • Market price:$20.34
      • save 5%
    • Starting price: Price: $19.32 per foot

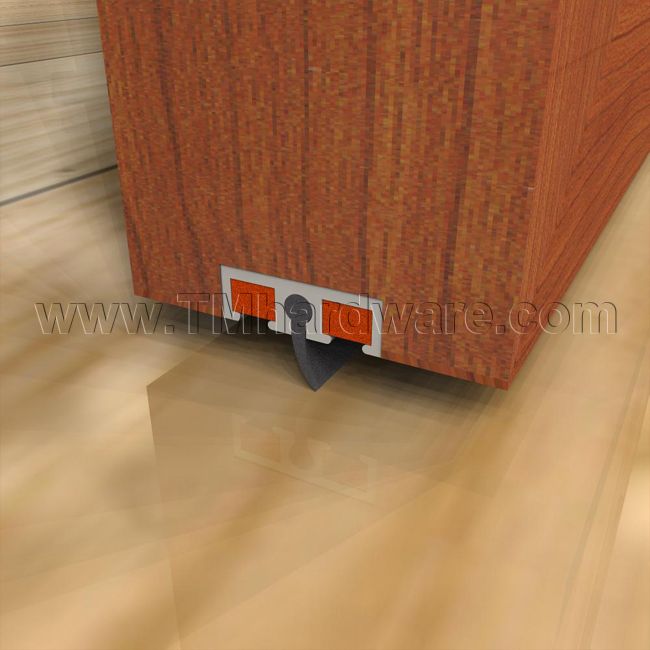

    This mortised door bottom can be used to restore lost fire ratings. The aluminum casing is fitted with a durable solid neoprene blade that will not take wear and tear, even after many usages, and ensures a continuously smooth door swing. The seal can fill gaps up to .25 inches.

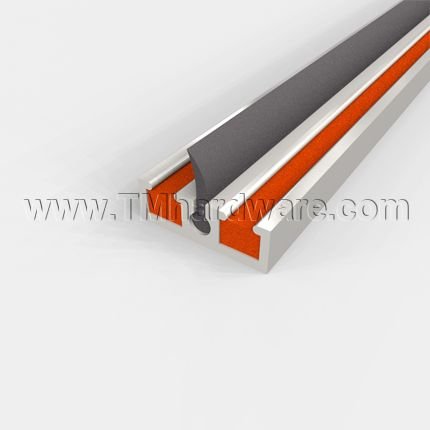

    The aluminum track is filled with Zero's INTUMET™ Technology for reliable smoke and fire protection. The fire stop material expands when heated to a high degree which significantly halts the spread of fire and smoke. Door Bottom is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.

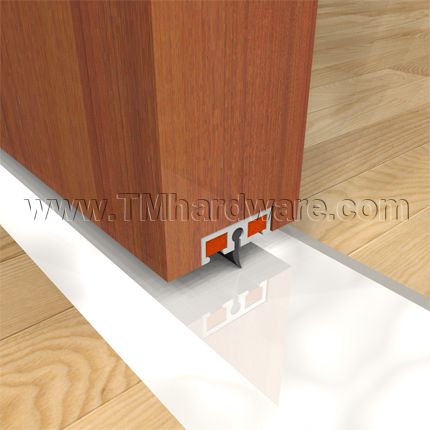

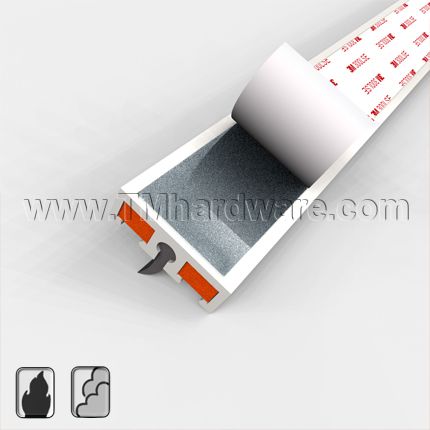

    The door bottom sweep is fully mortised in a .75" cavity, providing a clean look to the door. Additionally, it has a PSA Self-Adhesive Backing for easy, no screws required installation.

    Note, for maximum protection it is recommended that this product be used in conjunction with a doorway threshold, such as our 5" Utility Threshold #545.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    This product can also be applied as a meeting stile, see our Zero International #Z59FS-A_MS Meeting Stile, Neoprene Blade Mortised FS.

      • SKU
        ZR59FS-A_DB
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      59FS
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Fully Mortised

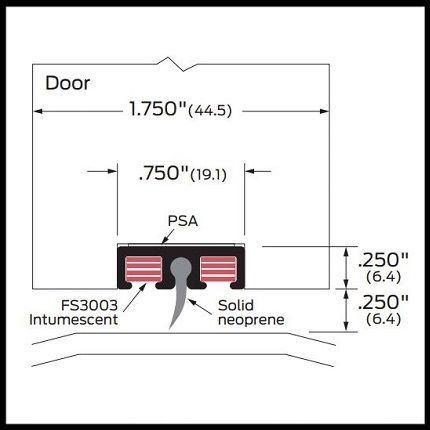

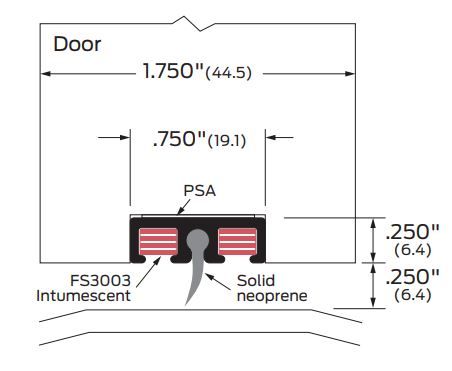

    • Dimensions
      • Seal Height
        .250" Height
      • Total Height
        .500" Height
      • Additional Dimensions
        Door seal is .750" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        No screws required
    • Special Features
      • Intumescent / FireStop
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Flat Black (US19)

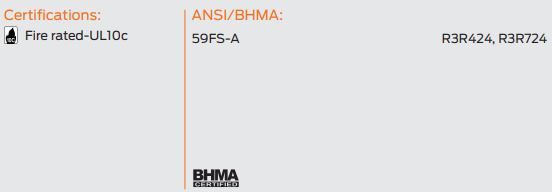

    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, BHMA Certified
      • ANSI Designation
        R3R424, R3R724
      • Warranty
        5 Year Limited Warranty
