Zero #253FS Door Bottom, Mortised Track with Fire Stop Insert

Zero #253FS Door Bottom, Mortised Track with Fire Stop Insert
Zero International

This Zero #253FS door bottom insert can be installed to restore lost fire rating to a door while still maintaining the door's clean and neat look. It is filled with an insert of Zero's INTUMET™ Technology for maximum fire and smoke proofing. Aluminum casing can be custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information
    • SKU
      ZR253FS-A
    • Market price:$20.91
      • save 5%
    • Starting price: Price: $19.86 per foot


    This door bottom insert can be installed to fire proof a door while still maintaining the clean and neat look of the door. It is comprised of an aluminum track which is fully mortised. The interior of the track is filled with Zero's INTUMET™ Technology for maximum fire and smoke protection.

    This product can be used to restore lost fire ratings, while still maintaining the clean and neat look of the door. Ideal for high end designer door and luxury hotels and condo units.

    Door Bottom is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.

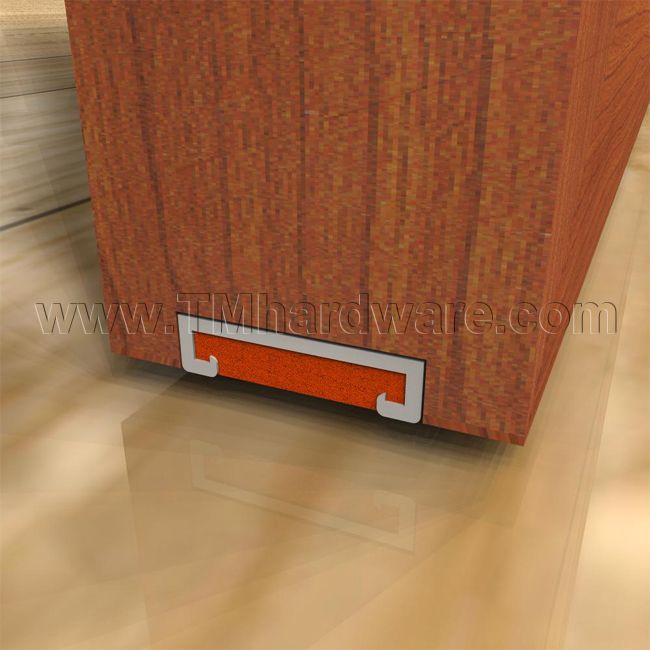

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
     Click to view our Full Warranty Policy.

    Also available with a Neoprene Blade Insert, see our Zero International #59FS Mortised Aluminum Track with Neoprene Blade.

      • SKU
        ZR253FS-A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      253FS
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Door Type
        Wooden Door, Metal Door
      • Mounting
        Fully Mortised

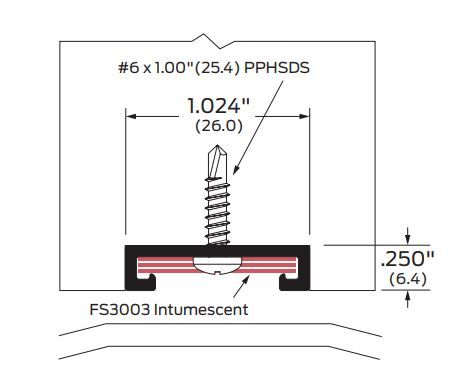

    • Dimensions
      • Total Height
        .250" Height
      • Additional Dimensions
        Door seal is 1.024" thick
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 1.00" (25.4) PPHSDS Provided
    • Special Features
      • Intumescent / FireStop
        Yes
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28), Flat Black (US19)

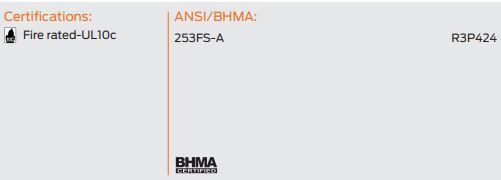

    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, BHMA Certified
      • ANSI Designation
        R3P424

    compliance details for z253fs

    Click to view more information on this product's UL Fire Rating.


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Zero is experiencing Significant Delays. If you are in a rush please call us for alternative options.



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
