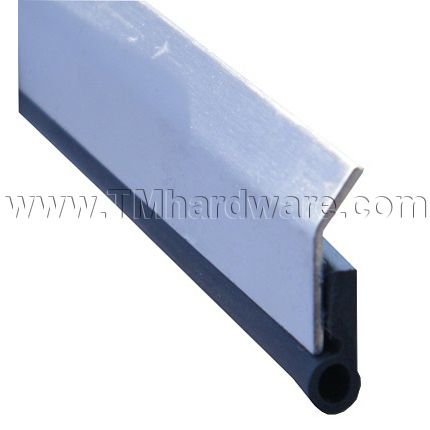

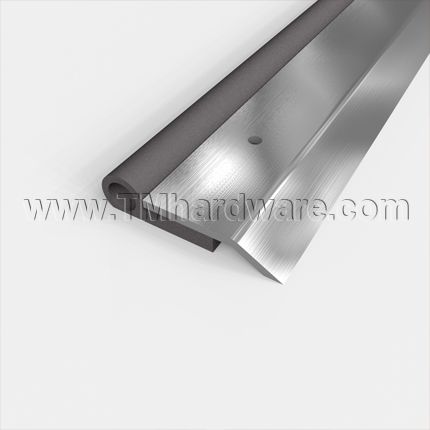

Pemko #319SSN Door Gasket, .875" Stainless Steel with .25" Sponge EPDM Bulb Seal
This Stainless Steel Door Gasket with a Sponge EPDM Bulb Seal is applied around the full perimter of the door to prevent infiltration of air, smoke, fire, dust and drafts. Stainless Steel is ideal for sanitary environments as it has easy maintenance. Length is custom cut to size.
PRICED PER ITEM
This stainless steel door gasket is applied around the full perimeter of the door frame to prevent infiltration of smoke, air, drafts, dust and sound. It is fitted with a durable Sponge EPDM Bulb seal which compresses lightly when the door is closed to ensure a proper seal. The sponge rubber seal is made of high quality material that is compatible with all weather conditions and will consistently provide superior performance, even through constant usage.
Benefits of Stainless Steel: Retainer is made of stainless steel which does not corrode, rust or stain as ordinary steel does, ensuring low cost of ownership. Stainless steel is a low maintenance material, making it ideal for sanitary environments such as commercial kitchens and cleanrooms. Its familiar lust appearance makes it an aesthetically appealing product. For more information see Understanding Metals and Finishes.
Seal: This door gasket can is fitted with a Sponge EPDM Bulb Seal. Sponge EPDM is comparable to Sponge Neoprene, though it is healthier for the environment and has overall better performance. Sponge EPDM is GreenGuard Gold rated and can be used to acheive LEED Certification, see product specs tab for more information.

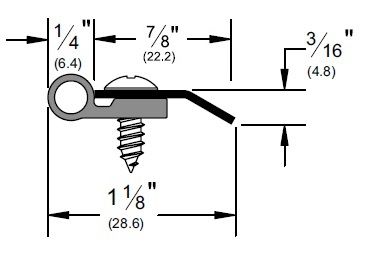

The seal is designed to seal gaps of 1/16", however, it can seal gaps up to the depth of its seal. Retainer has dimensions of .875" x .188" (7/8" x 3/16"). It is surface applied to the door stop. The bulb compresses against the door when closed to create a reliable seal.
This product can also be applied as a surface mounted astragal, see our Stainless Steel Meeting Stile with Sponge EPDM Bulb Seal.
Installation Guide and Screws provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
 Click to view our Full Warranty Policy.
Click here to view all our Stainless Steel Door Gaskets
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN319SSN
-
Length12", 12.25", 12.5", 12.75", 13", 13.25", 13.5", 13.75", 14", 14.25", 14.5", 14.75", 15", 15.25", 15.5", 15.75", 16", 16.25", 16.5", 16.75", 17", 17.25", 17.5", 17.75", 18", 18.25", 18.5", 18.75", 19", 19.25", 19.5", 19.75", 20", 20.25", 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22", 22.25", 22.5", 22.75", 23", 23.25", 23.5", 23.75", 24", 24.25", 24.5", 24.75", 25", 25.25", 25.5", 25.75", 26", 26.25", 26.5", 26.75", 27", 27.25", 27.5", 27.75", 28", 28.25", 28.5", 28.75", 29", 29.25", 29.5", 29.75", 30", 30.25", 30.5", 30.75", 31", 31.25", 31.5", 31.75", 32", 32.25", 32.5", 32.75", 33", 33.25", 33.5", 33.75", 34", 34.25", 34.5", 34.75", 35", 35.25", 35.5", 35.75", 36", 36.25", 36.5", 36.75", 37", 37.25", 37.5", 37.75", 38", 38.25", 38.5", 38.75", 39", 39.25", 39.5", 39.75", 40", 40.25", 40.5", 40.75", 41", 41.25", 41.5", 41.75", 42", 42.25", 42.5", 42.75", 43", 43.25", 43.5", 43.75", 44", 44.25", 44.5", 44.75", 45", 45.25", 45.5", 45.75", 46", 46.25", 46.5", 46.75", 47", 47.25", 47.5", 47.75", 48", 48.25", 48.5", 48.75", 49", 49.25", 49.5", 49.75", 50", 50.25", 50.5", 50.75", 51", 51.25", 51.5", 51.75", 52", 52.25", 52.5", 52.75", 53", 53.25", 53.5", 53.75", 54", 54.25", 54.5", 54.75", 55", 55.25", 55.5", 55.75", 56", 56.25", 56.5", 56.75", 57", 57.25", 57.5", 57.75", 58", 58.25", 58.5", 58.75", 59", 59.25", 59.5", 59.75", 60", 60.25", 60.5", 60.75", 61", 61.25", 61.5", 61.75", 62", 62.25", 62.5", 62.75", 63", 63.25", 63.5", 63.75", 64", 64.25", 64.5", 64.75", 65", 65.25", 65.5", 65.75", 66", 66.25", 66.5", 66.75", 67", 67.25", 67.5", 67.75", 68", 68.25", 68.5", 68.75", 69", 69.25", 69.5", 69.75", 70", 70.25", 70.5", 70.75", 71", 71.25", 71.5", 71.75", 72", 72.25", 72.5", 72.75", 73", 73.25", 73.5", 73.75", 74", 74.25", 74.5", 74.75", 75", 75.25", 75.5", 75.75", 76", 76.25", 76.5", 76.75", 77", 77.25", 77.5", 77.75", 78", 78.25", 78.5", 78.75", 79", 79.25", 79.5", 79.75", 80", 80.25", 80.5", 80.75", 81", 81.25", 81.5", 81.75", 82", 82.25", 82.5", 82.75", 83", 83.25", 83.5", 83.75", 84", 84.25", 84.5", 84.75", 85", 85.25", 85.5", 85.75", 86", 86.25", 86.5", 86.75", 87", 87.25", 87.5", 87.75", 88", 88.25", 88.5", 88.75", 89", 89.25", 89.5", 89.75", 90", 90.25", 90.5", 90.75", 91", 91.25", 91.5", 91.75", 92", 92.25", 92.5", 92.75", 93", 93.25", 93.5", 93.75", 94", 94.25", 94.5", 94.75", 95", 95.25", 95.5", 95.75", 96", 96.25", 96.5", 96.75", 97", 97.25", 97.5", 97.75", 98", 98.25", 98.5", 98.75", 99", 99.25", 99.5", 99.75", 100", 100.25", 100.5", 100.75", 101", 101.25", 101.5", 101.75", 102", 102.25", 102.5", 102.75", 103", 103.25", 103.5", 103.75", 104", 104.25", 104.5", 104.75", 105", 105.25", 105.5", 105.75", 106", 106.25", 106.5", 106.75", 107", 107.25", 107.5", 107.75", 108", 108.25", 108.5", 108.75", 109", 109.25", 109.5", 109.75", 110", 110.25", 110.5", 110.75", 111", 111.25", 111.5", 111.75", 112", 112.25", 112.5", 112.75", 113", 113.25", 113.5", 113.75", 114", 114.25", 114.5", 114.75", 115", 115.25", 115.5", 115.75", 116", 116.25", 116.5", 116.75", 117", 117.25", 117.5", 117.75", 118", 118.25", 118.5", 118.75", 119", 119.25", 119.5", 119.75", 120"
Click to View Ratings Explained
Â
Â
Finish Complies with the Following ANSI / BHMA Codes:
- Stainless Steel (Polished): US32D / 630
