Pemko #319SSNMS Meeting Stile, .875" Stainless Steel with Sponge EPDM Bulb Seal
This Stainless Steel Meeting Stile with a Sponge EPDM Bulb Seal is applied along the gap between two double doors to prevent infiltration of air, smoke, fire, dust and drafts. Stainless Steel is ideal for sanitary environments as it has easy maintenance. Length is custom cut to size.
PRICED PER ITEM
Reminder:Â If being purchased for both doors, select 'Quantity 2', or as needed.

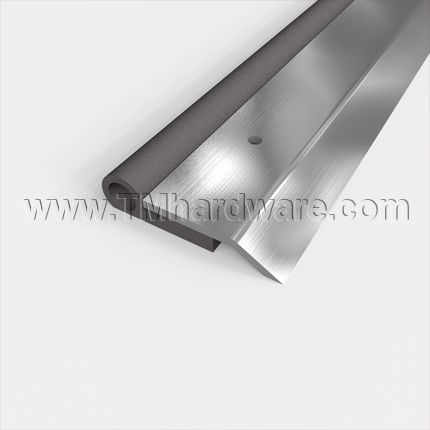

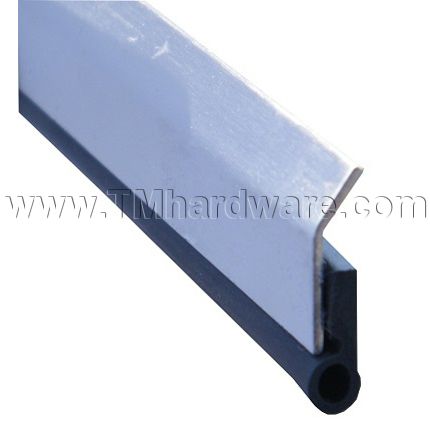

This stainless steel meeting stile is applied along the gap between two double active doors to prevent infiltration of smoke, air, drafts, dust and sound. It is fitted with a durable Sponge EPDM Bulb seal which compresses lightly when the door is closed to ensure a proper seal. The sponge rubber seal is made of high quality material that is compatible with all weather conditions and will consistently provide superior performance, even through constant usage.
Benefits of Stainless Steel:Â Retainer is made of stainless steel which does not corrode, rust or stain as ordinary steel does, ensuring low cost of ownership. Stainless steel is a low maintenance material, making it ideal for sanitary environments such as commercial kitchens and cleanrooms. Its familiar lust appearance makes it an aesthetically appealing product. For more information see Understanding Metals and Finishes.
Seal:Â This meeting stile can is fitted with a Sponge EPDM Bulb Seal. Sponge EPDM is comparable to Sponge Neoprene, though it is healthier for the environment and has overall better performance. Sponge EPDM is GreenGuard Gold rated and can be used to achieve LEED Certification, see product specs tab for more information.

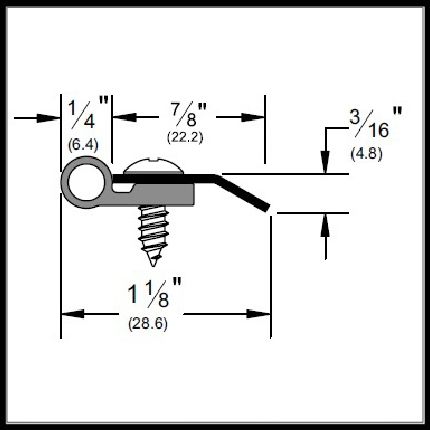

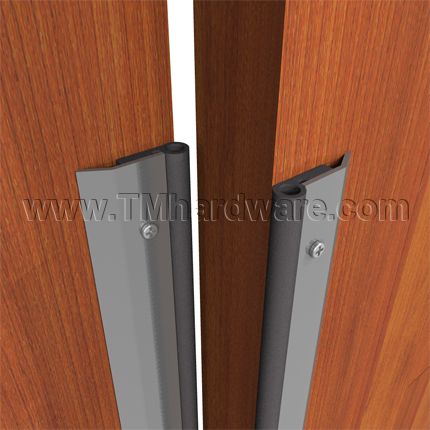

Design: This meeting stile is designed to be surface applied to the face of the door in a pair of double active doors. The bulb seals combined can fill gaps up to .5", Â though it is not recommended to use this model on gaps greater than .3". The two bulb seals compress against each other when closed to create a reliable seal. Retainer has dimensions of .875" x .188" (7/8" x 3/16").
This product can also be applied as a surface mounted Door Gasket, see our Stainless Steel Door Gasket with Sponge EPDM Bulb Seal.
Installation Guide and Screws provided.
Reminder, if being used for both doors, select 'Quantity 2', or as needed.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
 Click to view our Full Warranty Policy.
Click here to view all our Stainless Steel Meeting Stiles
-
QuickShipNo
-
ManufacturerPemko Manufacturing
-
MPN319SSN
- About This Product
-
Retainer MaterialStainless Steel
-
Seal TypeEPDM
-
Door TypeDouble Active Doors
-
MountingSurface Mounted
-
- Dimensions
-
Seal Height1/4"
-
Width1-1/8"
-
Size (Feet)Custom Cut to Size
-
- Finishes
-
FinishSatin Stainless Steel (US32D)
-
- Compliance Details
-
Compliance DetailsAir Infiltration Rated, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
-
ANSI DesignationR5G164, R5G165
-
Warranty5 Year Limited Warranty
-
Click to View Ratings Explained
Â
Â
Finish Complies with the Following ANSI / BHMA Codes:
- Stainless Steel (Polished): US32D / 630
