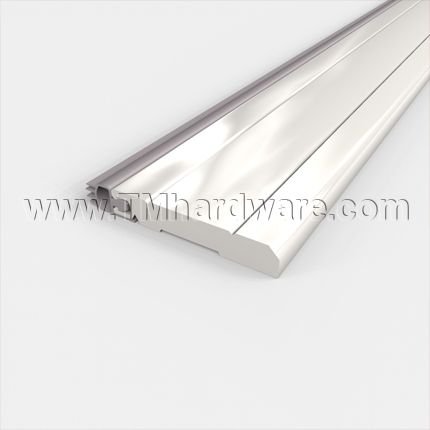

Pemko #2892 Door Gasket, 1.5" Heavy Duty Aluminum for Header with Eco-V Vinyl Bulb Seal

Pemko #2892 Door Gasket, 1.5" Heavy Duty Aluminum for Header with Eco-V Vinyl Bulb Seal
Product Specs of Door Gasket #2892 Aluminum Mill Door Gasket with Eco-V Seal Door Gasket with Eco-V Seal Dark Bronze Door Gasket with Eco-V Seal Door Gasket with Eco-V Seal
0.0

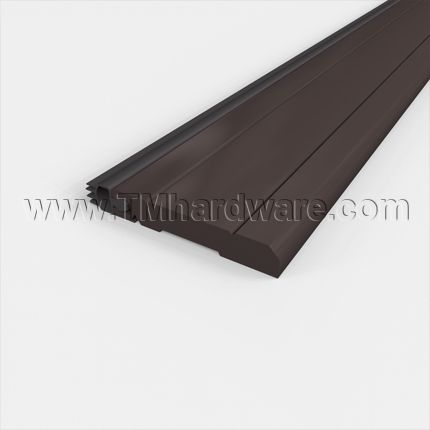

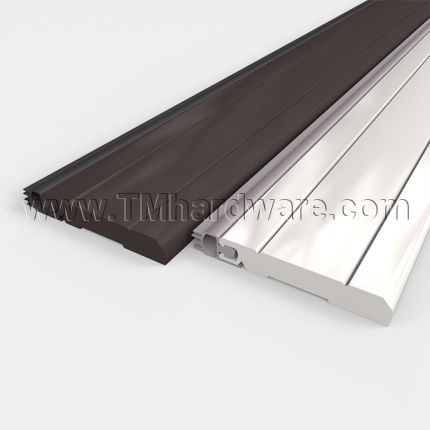

This Heavy Duty Door Gasket is fitted with a Eco-V Vinyl Bulb seal with fingers which seals the gaps around the door to prevent infiltration of light, dust, drafts, moisture, sound and insects. The door gasket is designed to be applied to the Header only, see below for corresponding jamb piece. Available in two aluminum finishes and is custom cut to size.

PRICED PER FOOT.

Market price: $7.44
save 15%
Price: $6.32
Finish
Size (Inches)
Drilling
Qty
Save to wishlist
SKU P2892AV
Shipping See Shipping Tab Below
Description

This Heavy Duty Door Gasket is fitted with a high quality Eco-V Vinyl bulb seal which seals the gaps around the door to prevent infiltration of light, dust, sound, drafts, moisture and insects. This door gasket is a heavy duty model, which has thicker extrusions and can handle greater traffic frequency than our standard Rubber Door Gasket models, ideal for commercial applications.

Design: This model is specifically designed for the headers of doors where parrallel arm closer brackets or other door hardware will be used.

Corresponding Jamb Piece: Sold separately, see our Heavy Duty Door Gasket with Eco-V Bulb Seal for Jambs.

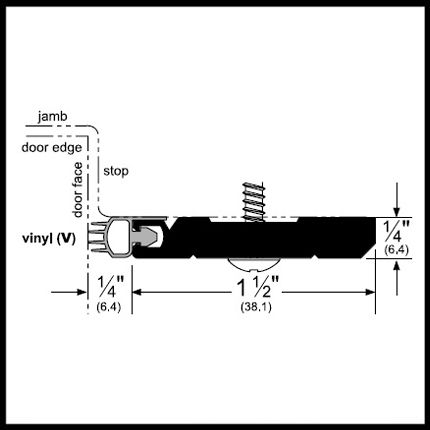

Casing Dimensions: 1.5" x .25" (1-1/2" x 1/4") x Custom Length.

Seal: Casing is fitted with an Eco-V Vinyl bulb seal with extruded fingers. The additional fingers aid in sealing by compensating for slight misalignment of door, due to poor installation or natural warping. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version. It surpasses the quality and durability of standard vinyl, resulting in a longer service life and less need for replacement.

Compliance: Door Gasket is rated for air infiltration and fire, is UL Listed and complies with GreenGuard Gold certification. See product data tab for more details.

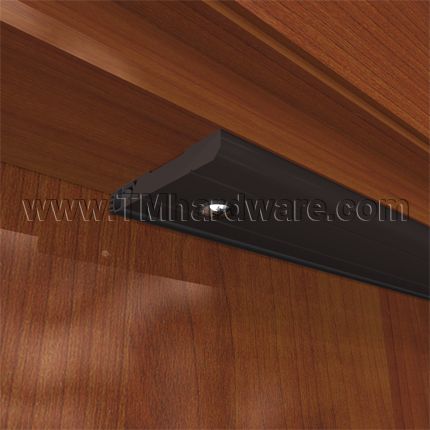

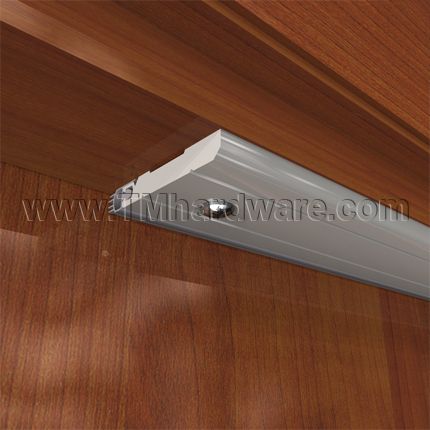

Installation: Designed to be surface mounted to the stop of the door. See Installation Guide. Sheet Metal Screws are only supplied if drilling is requested above. #10 Countersunk screw holes with flat head machine screws can also be provided if required. Please contact us  or call us at 845-388-1300 to place order.

DrillingProduct can be pre-drilled for easy installation if requested, select from options above. This product can be easily drilled on site if necessary.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view Full Warranty Policy.

Product Specs

Click to Print



P2892 Product Specs:

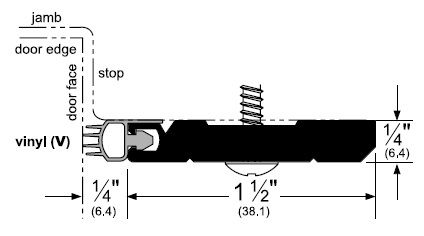

Product Specs for Door Gasket with Eco-V Bulb Seal by Pemko

NOTE, Drilling and screws are only supplied unless requested.

This Door Gasket is designed for the header of the door.
For corresponding jamb piece, see our Heavy Duty Door Gasket with Eco-V Bulb Seal for Jambs.

Installation

Click to Print



P2892 Installation Guide:

Installation Guide for Pemko Door Gasket with Eco-V Bulb Seal

Compliance Details

Click to View Ratings Explained

Compliance Details for Pemko Door Gasket with Eco-V Bulb Seal





Finishes Comply with the Following ANSI / BHMA Codes:

  • Aluminum Mill Finish - US27 / 719
  • Dark Bronze Anodized Aluminum - US10B / 710
Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 10-14 Business Day to ship.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 25% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
