Pemko #305SS Door Gasket, 7/8" Stainless Steel with Sponge Rubber Seal

Pemko #305SS Door Gasket, 7/8" Stainless Steel with Sponge Rubber Seal
Product Specs of Door Gasket Seal #305SS Stainless Steel Door Gasket with Rubber Seal Stainless Steel Door Gasket with Rubber Seal
0.0

This Stainless Steel Door Gasket with a Sponge Rubber Seal is applied around the full perimter of the door to prevent infiltration of air, smoke, fire, dust and drafts. Stainless Steel is ideal for sanitary environments as it has easy maintenance. Options of Sponge EPDM or Sponge Silicone Seal available and length is custom cut to size.

PRICED PER FOOT.

Market price: $17.28
save 20%
Price: $13.82
Seal Type
Size (Inches)
Qty
Save to wishlist
SKU P305SSR
Options Sponge EPDM or Sponge Silicone Seal
Shipping See Shipping Tab Below
Description

This stainless steel door gasket is applied around the full perimeter of the door frame to prevent infiltration of smoke, air, drafts, dust and sound. It is fitted with a durable Sponge EPDM or Sponge Silicone seal which compresses lightly when the door is closed to ensure a proper seal. The sponge rubber seal is made of high quality material that is compatible with all weather conditions and will consistently provide superior performance, even through constant usage.

Benefits of Stainless Steel: Retainer is made of stainless steel which does not corrode, rust or stain as ordinary steel does, ensuring low cost of ownership. Stainless steel is a low maintenance material, making it ideal for sanitary environments such as commercial kitchens and cleanrooms. Its familiar lust appearance makes it an aesthetically appealing product. For more information see Understanding Metals and Finishes.

Seal: This door gasket can be purchased with a Sponge EPDM or Sponge Silicone Seal. Sponge EPDM is comparable to Sponge Neoprene, though it is healthier for the environment and has overall better performance. Sponge Silicone is very resistant in harsh environments.

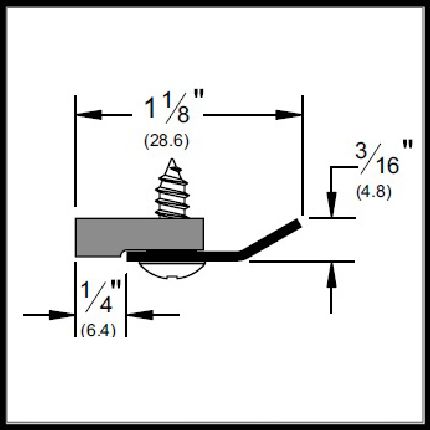

The seal is designed to seal gaps of 1/16", however, it can seal gaps up to the depth of its seal. Retainer has dimensions of .875" x .188" (7/8" x 3/16"). It is surface applied to the door stop.

  • Smoke, Fire and Air Infiltration Rated
  • Sponge EPDM or Sponge Silicone Seal
  • Stainless Steel Retainer
  • Surface Mounted to Door Stop
  • Custom Cut to Stop

Installation Guide and Screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to view all our Stainless Steel Door Gaskets

Product Specs

Click to Print

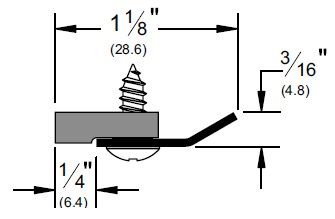

P305SS Product Specs:

Product Specs of Stainless Steel Door Gasket with Sponge Rubber Seal, P305SSR, P305SSS

Installation

Click to Print



P305SS Installation Guide:

Installation Guide for Adjustable Door Gasket with Rubber Seal - P379

Compliance Details

Click to View Ratings Explained

Compliance Details with Stainless Steel Door Gasket with Sponge Rubber Seal, P305SSR, P305SSS



Finish Complies with the Following ANSI / BHMA Codes:

  • Stainless Steel (Polished): US32D / 630
