Zero #770FS Door Gasket, Aluminum with .375" Adjustable Neoprene Fire Stop Seal

Zero #770FS Door Gasket, Aluminum with .375" Adjustable Neoprene Fire Stop Seal

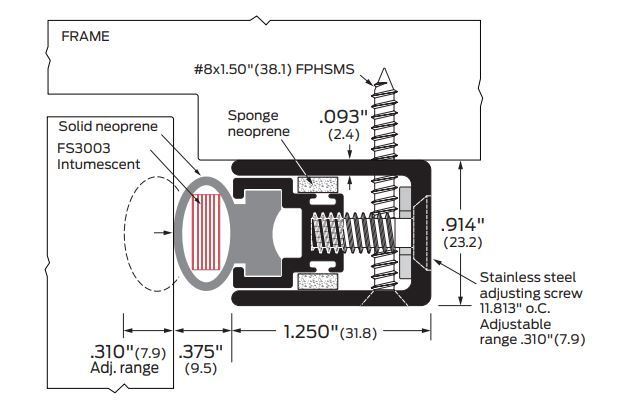

Product Specs of Door Gasket Seal #770FS
0.0

Enjoy maximum head and jamb protection with this Zero #770FS intumescent heavy duty adjustable door gasket. This gasket utilizes Zero's INTUMET™ Technology to provide fire and smoke protection. Plus, this sealing system can be easily adjusted with a turn of a screwdriver to provide consistent sealing for sound control. Comes in three finishes and is custom cut to size.

PRICED PER FOOT

Price: $40.91
Color
Size (Inches)
Edge Design
Qty
Save to wishlist
SKU Z770FS-AA
Options Mitered or Straight Edges
Shipping See Shipping Tab Below
Description

This heavy duty fire stop adjustable door gasket is designed to perform consistently all the time. When clearance increases due to natural shifting of the frame and door, all it takes is a few turns of a screwdriver to restore proper protection. This gasket is fitted with a solid neoprene ring seal that utilizes Zero's Compress-O-Matic design to ensure strong protection from sound, moisture, dust and drafts. Its seal has an adjustable range of .3". Plus, it is comprised of a neoprene interior for added protection.

Intumescent Insert: This sealing system utilizes Zero's INTUMET™ Technology to provide maximum fire and smoke protection. It is rated for 180 minutes for metal doors, when applied to a 5/8" stop. When the intumescent material is heated to high temperatures it expands, preventing the spread of fire. Door Gasket is fitted with FS3003 INTUMET™ material. For more information, see Understanding Intumescent Fire Stop Material.

Mitered Edge Design: due to the size of this casing, it can be cut with a mitered edge, which provides a stronger seal over straight edges. Another great advantage is that this gasket can be applied as a door stop (and replace your stop molding) or onto an existing stop. We recommend using it as a door stop itself. As a door stop it will run along the length of your door frame to the bottom of your door and will be compatible with a Surface Mounted Automatic Door Bottom.

This product can be applied with a door closer or a strike plate when applied with our specialized Door Closer or Strike Plate Mounting Bracket.

Available in three anodized finishes and is custom cut to size.

  • High Qualityolid neoprene seal and interior.
  • Zero's INTUMET™ Technology-Smoke and fire rated.
  • Surface mounted aluminum casing, anodized to 204.
  • .093" Thick high quality casing.
  • Easily adjustable.
  • Custom cut to size.

Installation screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee againsts defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to return to our Door Seals Homepage.

Product Specs
Compliance Details

Click to view more information on this product's UL Fire Rating.

compliance details

Shipping / Returns
  • Ship Time:
    • This product is custom made to your specifications, please allow 2-3 weeks to ship
    • *Similar or equivalent products from other manufacturers may be available to ship sooner. For expedited processing please contact our customer service department.
    • EXCEPTIONS: Gold Anodized Aluminum and Black Anodized Aluminum Products require 2-6 week processing time.
    • Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.

  • Domestic Shipping Fees- (Hawaii and Alaska not Included):
    • FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
    • There will be a flat $19.99 shipping and handling fee on orders under $200.00.
    • Oversized Items: Items 86" and above have an oversize surcharge of $70.00
    • Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
    • Orders totals above $1,500.00 will ship free, regardless of size.

  • Alaska and Hawaii, Canada, and International Shipping:
  • Returns:
    • This product is custom made and is not returnable.
    • We are commited to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
    • Weatherstripping products will not be considered for returns.
    • Item must be in new, resaleable condition.
    • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
    • Return shipping is customer's responsibility. A return address will be provided with RMA#.
    • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
