Zero #52A Door Sweep, Aluminum Track with .688" Neoprene Seal

This Zero #52A door sweep is comprised of an aluminum track which is fitted with a reversible solid neoprene insert. It is smoke rated and aids in draft protection. It can be custom cut to size.

For simular items in stock please see our Barzen Door Sweep

PRICED PER FOOT.

See tabs below for additional information

Length

Quantity

Add to compare

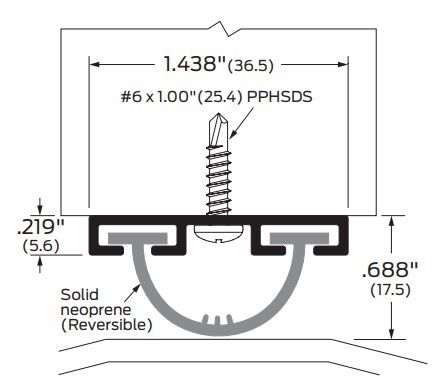

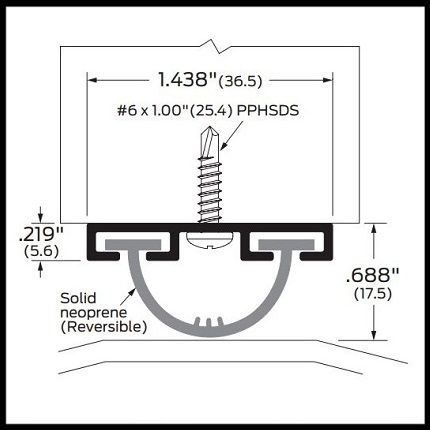

This smoke rated door bottom sweep is comprised of an aluminum track which is surface mounted to the bottom of the door. The track has a width of 1.438 inches. It is fitted with a reversible solid neoprene insert. The seal can be installed on its smooth side, or on the side with small exposed fingers, which is helpful when the clearances between the door and surface are uneven. This door sweep can fill gaps up to .688 inches. It is recommended that this product be used in conjunction with a doorway saddle. This track eliminates the need of exposed mounting screws, resulting in a clean and unobtrusive look (for fully mortised look, see our Door Sweep, Track with Reversible Neoprene Mortised).

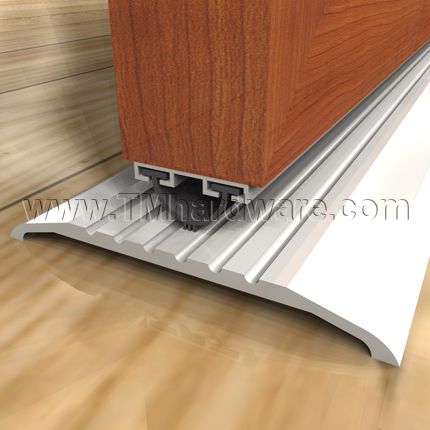

Detailed images of this product is used in conjunction with our 5" Utility Threshold #655.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

For more Door Bottoms see our Zero #59FS Door Bottom, with .25" Neoprene Blade and Fire Stop Insert

- SKU
  ZR52A
QuickShip
No
Manufacturer
Zero International
MPN
52A
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Underside Mount
Dimensions
- Seal Height
  .688" Height
- Additional Dimensions
  Door seal is 1.438" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28)

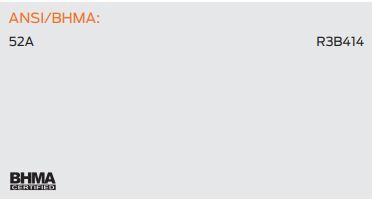

Compliance Details
- Compliance Details
  Smoke Rated, BHMA Certified
- ANSI Designation
  R3B414
