Hager 5100, Cast Iron HD Surface Door Closer, Up to 330 LB

Hager 5100 Series Closers are Heavy Duty, constructed of cast brass intended to be installed on exterior or interior doors subject to high use and potential abuse. This model has a full rack and pinion operation, and is non handed. Sizing is adjustable from 1 - 6 (see below) and is and ideal choice for doors with maximum weight of 330 LB. Available with option of delayed action and in many finishes.

PRICED PER ITEM

See tabs below for additional information

Finish
Arm Type
Delayed Action

Quantity

Add to compare

For additional informtion, click here to view Hager 5100 Series from Hager Full Line Catalog.

Standard Package Contains:

Closer Body (5101)
Closer Cover (5102)
Main Arm Assembly (5103)
Standard Screw Pack (5104)
Parallel Arm Bracket (5909)
SNB Screw Pack for 1-3/4" Doors (5940)

Features:

Ideal for schools, hospitals and other high-use environments
Full Rack and Pinion Operation
Up to 330 Lb per door
Non Handed, can be used in both right and left handed assemblies
Size: Adjustable 1-6
Contains Tri-Pack Arm Assembly (Regular Arm, Parallel or Tob Jamb Mount)

Certifications: ADA Compliant, BHMA Certified, UL Listed. See Compliance Details under Installation Tab for more information.

Closer Body:

Cast Iron
Recommended Temperature for prolonged use is -40ºF to 150ºF

Springs:

One piece seamless steeel spring tube
Double heat treated steel, tempered springs

Valves:

Adjustable latching and sweep speed valve
Adjustable back check valve (Standard)
Delayed Action Valve (Optional)
Staked valves (Standard)

Sizes: Adjustable Sizes 1-6. Adjustable sizes ensure that the overhead door closer will fit any door width.

Door Thickness:

1-3/4" Door Thickness

Additional Arm Options: See options tab for more details.

Extra Heavy Duty Arm (Recommended for exterior applications with drafts and windy conditions or applications with extreme usage)
Standard Hold Open Arm
Extra Heavy Duty Hold Open Arm
Extra Heavy Duty Stop Arm
Extra Heavy Duty Hold Open Cushion Stop Arm
Extra Heavy Duty Cushion Arm
Extra Heavy Duty Hold Open Stop Arm

Closer Adjustments: All Hagers' door closers are equipped with key control valves that allow for easy adjustments while decreasing the chances for tampering. Adjustment valves are staked to prevent accidental removal.

Sweep and Latching Speeds- Two separate valves control the closing speed of the door. The sweep speed controls the speed of the door from full opening to within approximately 2º-10º of the closed position. Latching speed valve controls the speed of the door from approximately 2º-10º to full closing.
Backcheck-Backcheck starts at approximately 70º in the opening cycle and slows the door as it opens. This feature is not to be used as a positive stop. An auxiliary stop must be used.
Delayed Action- This feature is available for all 5100 Series applications. The closing time between 90º and 70º shall be a minimum of 20 seconds, but is adjustable to be even slower.

Adjustable Spring Feature: This series of door closers offers an adjustable spring feature for sizing. Spring power of the closer can be increased or decreased by turning the power adjustment shaft clockwise.

Use of Door Stops: It is important to use an auxiliary door stop to protect the wall, trim, door and closer. A stop should be used even when a closer with backcheck is used, see our full line of Door Holders and Stops.

Fasteners: Self-reaming, self-tapping wood and machine screws. Sex nuts and bolts. All installation screws included.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

This product has a lifetime guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.

Click here to view all our Overhead Door Closers.

- SKU
  HG5100-ALM
QuickShip
No
Manufacturer
Hager Companies
MPN
5100 Series
Arm Type
Standard Included (For Interior), Heavy Duty Arm (For Exterior), Standard Hold Open, Heavy Duty Hold Open - Right, Heavy Duty Hold Open - Left, Heavy Duty Stop, Heavy Duty Hold Open Cushion, Heavy Duty Cushion, Heavy Duty Hold Open Stop
Delayed Action
Not Required, Required
Finishes
- Finish
  Aluminum Painted (689), Sprayed Bronze, Sprayed Dark Bronze, Sprayed Gold

Click to Print Regular Arm Mount Template Instructions

Click to Print Parallel Arm Mount Template Instructions

Click to Print Installation Guide

Door Closer Sizing Charts: (Minimum door width is 24")

Exterior & Vestibule Door Width	24"- 30"	30"- 36"	36"- 42"	42"- 48"
Regular and Top Jamb	Size 3	Size 4	Size 5	Size 6
Parallel	Size 3	Size 4	Size 5	---

Interior Door Width	24"- 30"	30"- 34"	34"- 38"	38"- 48"	48"- 54"	54"- 60"
Regular and Top Jamb	Size 1	Size 2	Size 3	Size 4	Size 5	Size 6
Parallel	Size 1	Size 2	Size 3	Size 4	Size 5	---

Arm can be assembled in 3 ways

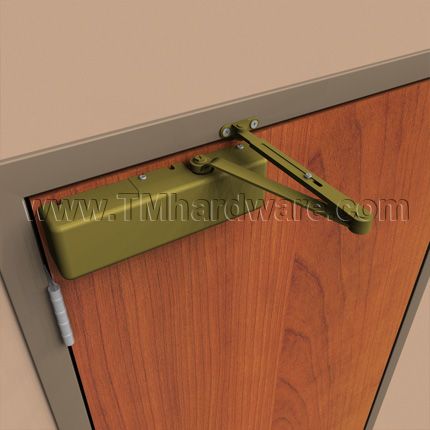

Regular Arm Mount (Pull Side):

Overview- The regular arm application is used when there is ample room on the top rail of the door and you are not concerned about the arm extending out away from the door. The closer body is mounted on the hinge side of the top rail of the door. the forearm is then mounted to the frame face by a mounting shoe. The arm projects at approximately a 90^º angle away from the door. This arm mount will make the closer more power efficient than the parallel arm or top-jamb mount. This mount is recommended for interior door applications when possible.

Opening: Templating allows up to 120°
Hold Open: Hold Open points from 90° up to 120° with hold open arm
Frame Face: 1-1/4" minimum
Ceiling Clearance: 1-1/4" minimum
Top Rail
- Less than 3-3/4" required drop plate (5109)
- Drop plate required 2" minimum
Top Rail Clearance: 4" from the top of the door

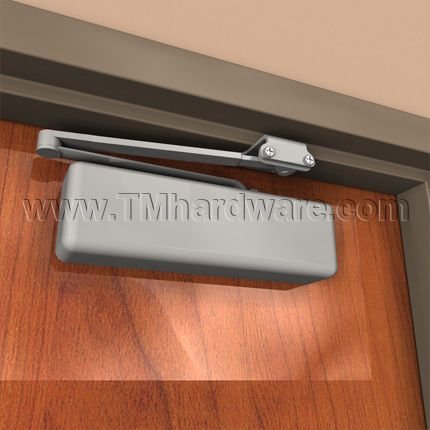

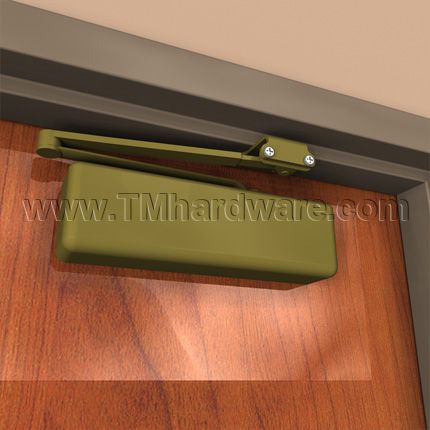

Parallel Arm Mount (Push Side):

Overview- The depth of the top rail is an important consideration when using this application. The closer body is mounted on the top rail of the door, opposite the hinge side of the door. The forearm is mounted by a parallel arm bracket to the underside of the frame. The arm is parallel to the door, which make it less likely to be damaged and aids in the overall aesthetics. the power efficiency of the closer may be reduced by the mounting applications.

Opening: Templating allows up to 180°
Hold Open: Hold Open points from 90° up to 180° with hold open arm
Top Rail
- Standard hollow metal 5/8" frame stop
- Less than 5-1/2" from the stop requires drop plate 5110
- Drop plate required 2" minimum from the stop
Top Rail Clearance: 6-1/4" from the top of the door

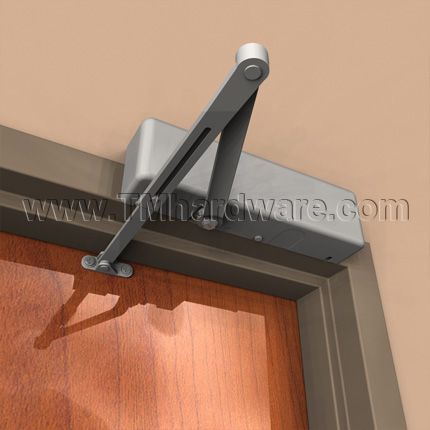

Top Jamb Mount (Push Side):

Overview - This is the preferred method of mounting a closer if you are faced with a narrow rail on a door. The closer body is mounted to the frame face above the door, opposited the door hinge side. The forearm is then mounted to the top rail of the door. The top jamb mount is more power-efficient than the parallel arm application.

Opening: Templating allows up to 120°
Hold Open: Hold Open points from 85° up to 120° with hold open arm
Frame Face: Less than 3-1/2" requires drop plate 5115
Ceiling Clearance: Drop plate requires 4" minimum
Top Rail: Requires 1-3/8" minimum
Top Rail Clearance: 1-1/2" from the top of the door

BHMA Certified ANSI A156.4, Adjustable sizes 1 to 6
ADA Compliant ANSI A117.1 Accessibility Code
UL/cUL Listed for up to 3 hours
UL10C Positive Pressure Rated
UL10B Neutral Pressure Rated

If you have any questions about the available options, please contact us or call us at 845-388-1300.

DELAYED ACTION (DA)
This additional feature is available for all 5100 Series applications. The closing time between 90^º and 70^º shall be a minimum of 20 seconds, but is adjustable to be even slower. Select from options above.
ADDITIONAL ARM OPTIONS
5106-EXTRA HEAVY DUTY ARM
Non-handed parallel arm Forged steel Click for Installation Instructions
5107-STANDARD HOLD OPEN ARM
Non-handed parallel arm Forged steel Mounts on the pull side or top jamb with a shallow reveal Friction hold open: These arms allow the door to be automatically placed in hold open position until the user puts force on the door to disengage the friction hold and cause the door to close. Note: Friction hold open arms are meant to be used in scenarios where the door is held open only occasionally. Click for Installation Instructions Click for Friction Hold Open Maintenance Guide
5108-EXTRA HEAVY DUTY HOLD OPEN ARM
Handed parallel arm. Please select Right or Left handing required. Forged steel Hold open funcion Adjustable at the shoe Friction hold open: These arms allow the door to be automatically placed in hold open position until the user puts force on the door to disengage the friction hold and cause the door to close. Note: Friction hold open arms are meant to be used in scenarios where the door is held open only occasionally. Not for fire rated doors Click for Installation Instructions Click for Friction Hold Open Maintenance Guide
5125-EXTRA HEAVY DUTY STOP ARM
Non-handed parallel arm Forged steel Auxiliary stop in soffit shoe Click for Installation Instructions
5954-EXTRA HEAVY DUTY HOLD OPEN CUSHION STOP ARM
Contains Heavy Duty Hold Open Stop Arm (5961) and Spring Cushion Non-handed parallel arm Forged steel Plunger hold open: These arms are designed with a cam-type mechanism in the arm to allow it to be adjusted to any hold open position. The plunger arm does not include a positive stop but does include a bypass (breakway) feature, so the arm will not break if pushed beyond the hold open point. The plunger arm prevents overtravel and damage to the closer arm, door or frame. Hold open function Auxiliary stop in soffit shoe Click for Installation Instructions (Note: Installation is for Arm #5961) Click for Spring Cushion Installation
5955-EXTRA HEAVY DUTY CUSHION ARM
Contains Heavy Duty Stop Arm (5125) and Spring Cushion Non-handed Forged steel Auxiliary stop in soffit shoe Click for Installation Instructions (Note: Installation is for Arm #5961) Click for Spring Cushion Installation
5961-EXTRA HEAVY DUTY HOLD OPEN STOP ARM
Non-handed parallel arm Forged steel Plunger hold open Hold open function Auxiliary stop in soffit shoe Click for Installation Instructions
