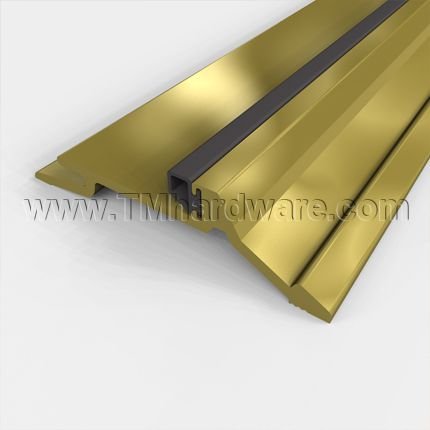

Pemko #159B Latching Panic Exit Threshold, 3.625" Interlocking Bronze with Seal, .5" H

Pemko #159B Latching Panic Exit Threshold, 3.625" Interlocking Bronze with Seal, .5" H
Pemko Manufacturing

This Interlocking Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door bumper with a double seal at the bottom of doors. It has a 5" width and a height clearance of .375". Available with thermo, vinyl or brush seal and has an interlocking design for extra protection. Length is custom cut to size.

PRICED PER FOOT

This product is also available in aluminum finishes, see our 3.625" Interlockign Latching Panic Exit Threshold with Seal, .5" H

See tabs below for additional information
    • SKU
      PK_159BT
    • Market price:$493.86
      • save 10%
    • Starting price: Price: $444.46 per foot


    This product is also available in aluminum finishes, see our 3.625" Interlockign Latching Panic Exit Threshold with Seal, .5" H

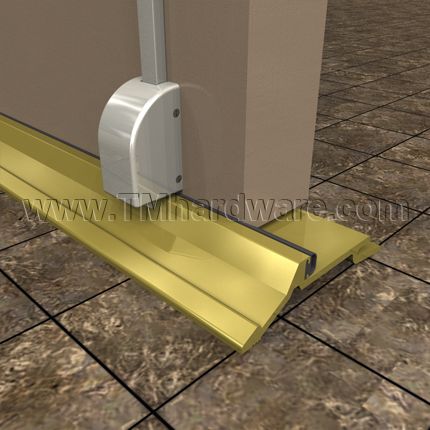

    Threshold design is compatible with a surface applied vertical rod exit device. Additionally, threshold has an interlocking design.

    Width: 3.625" (3-5/8")

    Interior Saddle Height: .5" (1/2")

    Door Clearance Height: .5625" (9/16")

    Total Height: .875" (7/8")

    Length: Custom cut to size up to 104" (larger sizes can be purchased through our office)

    Available Seals: It can be purchased with either a thermo, vinyl and pile brush seal which compresses against the door to form a tight seal.

    Thermo vs. Vinyl Seal: The thermo seal is a higher grade rubber than its vinyl counterpart and has a greater acoustic performance rating which creates a stronger soundproof seal. It has better performance than vinyl in extreme cold or hot temperature, and is recommended for locations with extreme weather. The vinyl seal wears quicker than thermo, so for best performance, apply vinyl in areas with light traffic abuse.

    Interlocking Feature: Saddle has in interlocking feature, which ensures draft and dust protection on both sides of the door. It interlocks with a 'J Hook' (provided) which is applied to a rabbet under the door. Can be applied with or without the interlocking J Hook.

    Finishes: Bronze mill finish (Oil rubbed bronze can also be purchased through our office for an additional 40% of standard bronze pricing)

    Compliance Details: See Product Data tab to the right

    Installation: Installation instructions and screws provided. Screws are colored to coordinate with saddle. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

    Drilling: Threshold is supplied drilled for easy installation

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    For a wider threshold, see our 5" Aluminum or Bronze with Rubber or Pile Seal Latching Panic Exit Threshold.

      • SKU
        PK_159BT
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      159T, 159V, 159P
    • Seal Type
      Thermo Seal, Vinyl Seal, Pile Seal
    • Finishes
      • Finish
        Bronze Mill Finish (Brass)

    Click to Print

    Threshold requires door clearance of .5625" (9/16")

    Thermo Seal

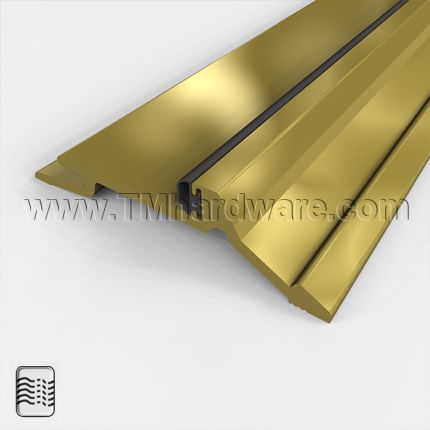

    Vinyl Seal

    Pile Brush Seal



    J-Hook (Provided):

    Click to View Ratings Explained

    Finishes Comply with the Following ANSI / BHMA Codes:

    • Bronze Mill Finish (Brass) - US4 / 720




    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
